Part Number: 12020223

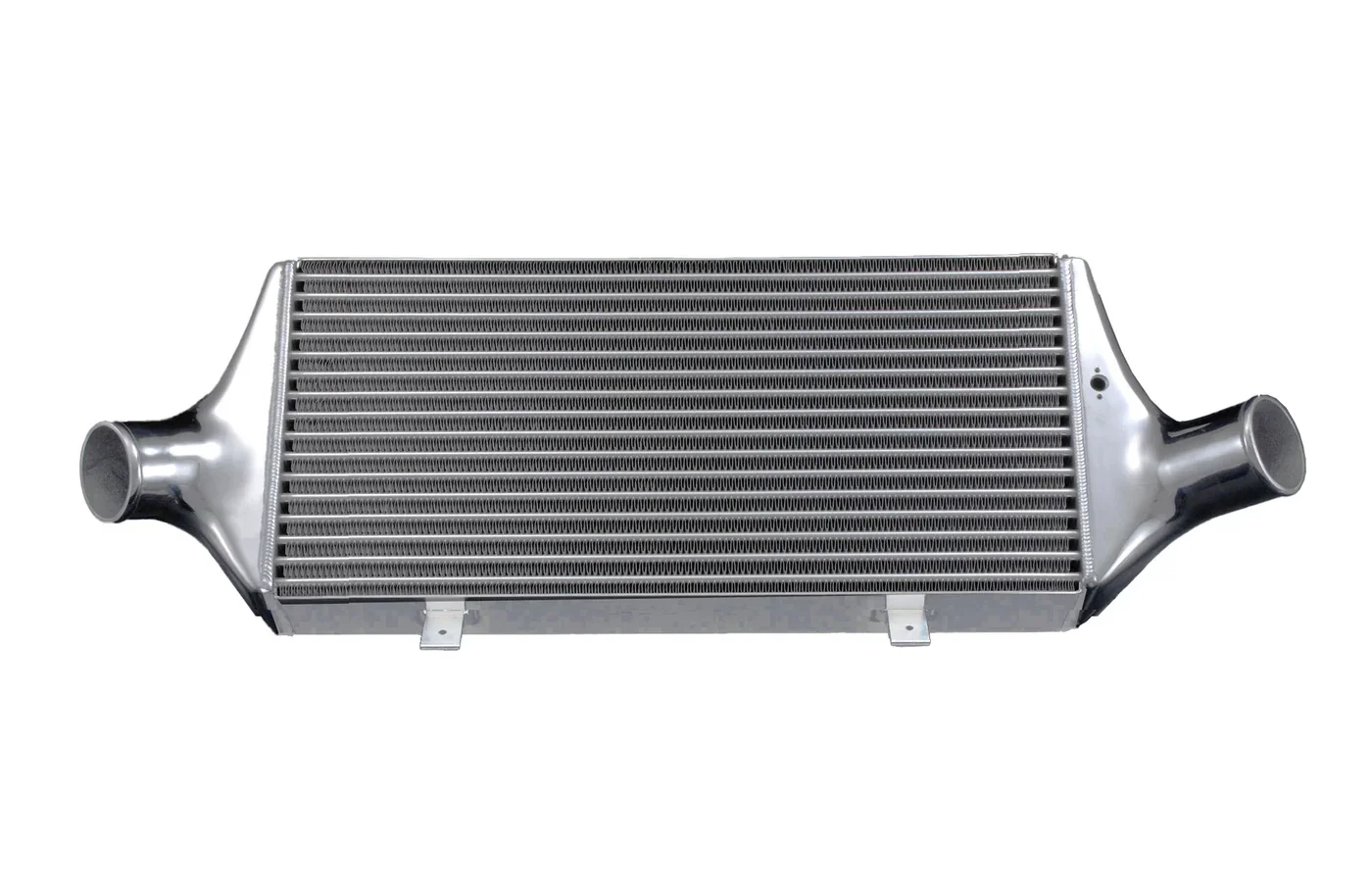

Description: GReddy Intercooler T-24F

Fitment: 89-02 Nissan Skyline GTR R32/R33/R34

Notes: Not for sale in California not CARB Legal

Details:

Genuine replacement TYPE24F IC outlet diameter 80Φ

Specification

• Core type: TYPE24F

• Core size: H284/L600/W66

• Installation position: genuine replacement

Remarks

• Compatible with genuine turbine & GReddy turbine kit.

• Common to R32, 33, and 34. For MT only.

• * O/C kit can be installed at the same time

• * Pipe SET can be installed at the same time

• *Reinforce processing required

• *Bumper processing required

Chassis: BNR32 / BCNR33 / BNR34
Engine: RB26DETT
Type:  Larger Type 24 (L600mm X H284mm X W66mm) intercooler core with cast GReddy endtanks, especially designed for the RB26DETT of the BNR32 Skyline GT-R.  80mm inlet and outlet.  - for stock intake plenum.


Product features

• Emphasizes cooling efficiency, maximizes charging efficiency, and supports high power and high boost.

• The SPEC-R HG has the side tank and aluminum pipe buffed to a mirror finish, while the SPEC-R has a barrel finish. In addition, the core is CCP treated to improve corrosion resistance.

• The inner fin uses an offset inner fin. The SPEC-R, which aims for high power and high boost, uses an "offset inner fin."

• Optimized pressure loss and cooling effect to support high-level high boost tuning.

GReddy Type-F cores feature a high heat-dissipating "off-set, inner-fin" technology.  They are recommended for medium to high boost levels on higher horsepower or upgraded turbo engines.  The larger internal surface area provides a superior cooling efficiency for radiating excessive heat and minimizing heat soak.  The GReddy Type-F intercooler is a light-weight tube and fin design.

For competition (race) use ONLY. Check legality of aftermarket products with your local state, county, city authorities before purchasing.
*This product is illegal to be driven on public roads in the USA.
