Part Number: 851154-5002S

Description: Garrett GTX3071R Gen II Super Core (Replaces 836042-5002S) 650HP

Fitment: 98-02 Nissan Skyline R34 GTT RB25DET NEO

Notes: Not for sale in California not CARB Legal

Details:

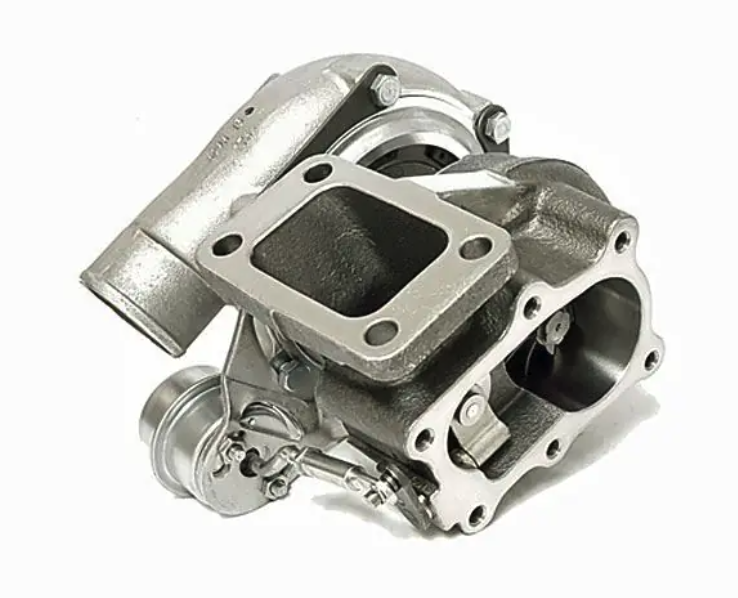

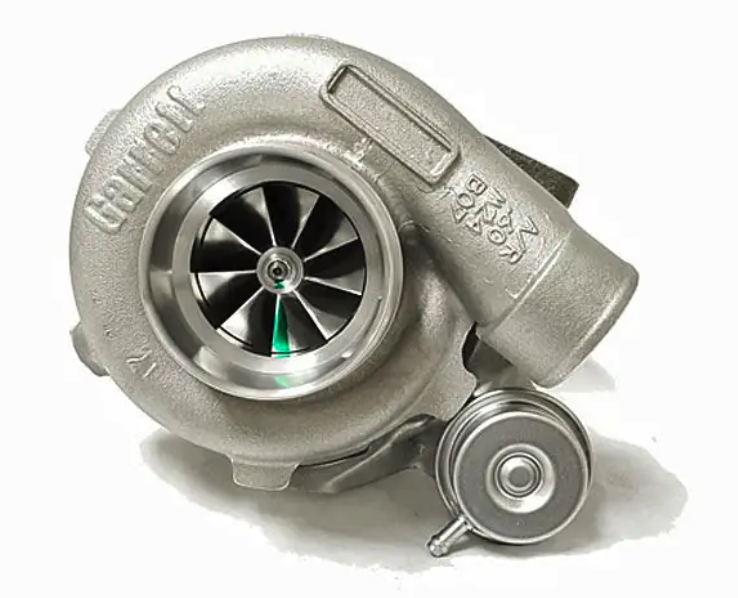

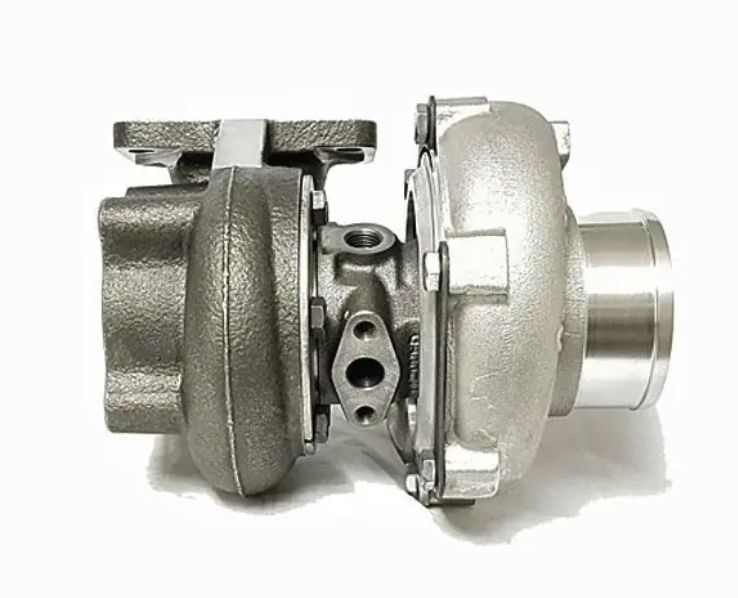

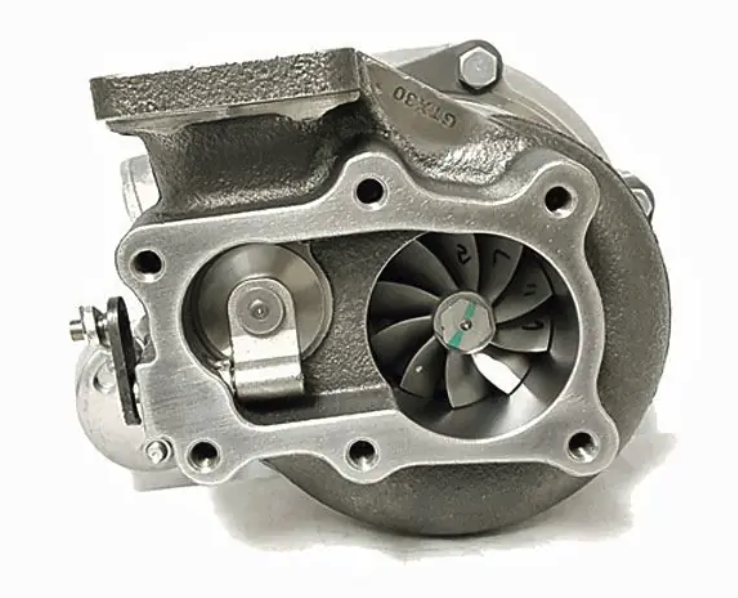

Garrett GEN2 GTX3071R dual ball bearing turbocharger with RB25DET T3 6 bolt exit turbine housing and compact compressor housing. This is a drop-in ready RB25DET turbo complete with a 1 Bar internal wastegate actuator. Advanced GEN2 billet compressor wheel capable of 650HP!

Product Features:
Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
Forged billet aluminum compressor wheel
Dual ball bearing CHRA rotating assembly

Product Specifications:
Compressor Wheel Inducer: 54mm
Compressor Wheel Exducer: 71mm
Compressor Wheel Trim: 58
Compressor Housing A/R: 0.60
Turbine Wheel Inducer: 60mm
Turbine Wheel Exducer: 55mm
Turbine Wheel Trim: 84
Turbine Housing A/R: 0.72

Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
Oil drain flange: Product Code: ATP-FLA-010
Oil drain gasket: Product Code: GRT-GSK-008
T3 Inlet Weld Flange (Stainless Steel): Product Code: ATP-FLS-038 (ATP-FLS-001 -mild steel)
Gasket, T3 Turbine Inlet - UNDIVIDED: Product Code: GRT-GSK-005

NOTE:
*Alternate coolant and oil fittings and flanges, sold separately, are needed to connect the GT/GTX turbo.
**Depending on exhaust set up and turbo outlet eblow combination and boost levels desired, you may have to open up the IWG port on the turbine housing or add an EWG for proper boost control.
