Part Number: 836026-5005S

Description: Garrett GTX2867R Gen II Super Core (Replaces 836040-5004S)

Notes: Price is for 1 (one) turbo. Please indicate a quantity of 2 turbos when ordering for your twin turbo setup

Notes: Not for sale in California not CARB Legal

Fitment: 89-02 Nissan Skyline GTR R32/R33/R34 RB26DETT

Details:

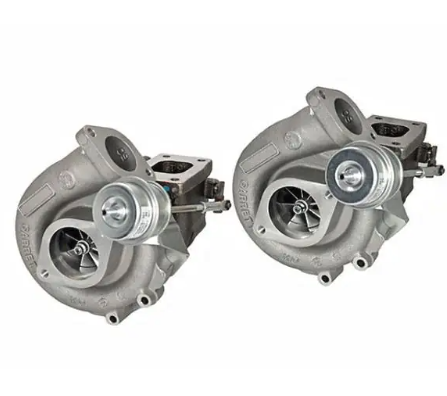

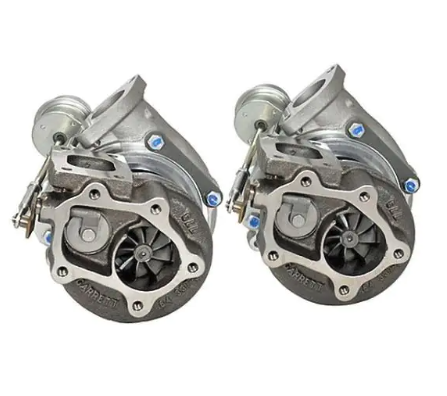

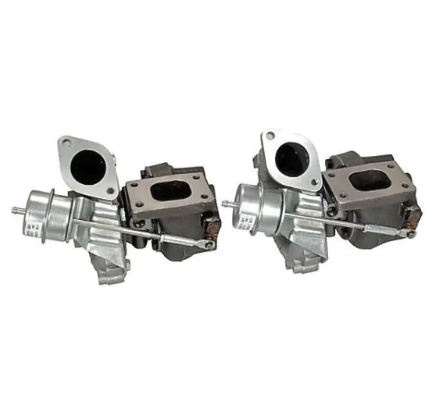

Garrett GEN2 GTX2867R dual ball bearing Twin Turbochargers for the Nissan Skyline GT-R RB26DETT. Supports 1,000HP+ in twin turbo configuration.

Includes Two (2) turbochargers as a bolt-on twin turbo solution for stock flange exhaust manifolds and O2 housings/dump pipes!

PRODUCT FEATURES:
Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
Forged billet aluminum compressor wheel
Dual ball bearing CHRA rotating assembly
Bolt-on for Nissan RB26DETT motor

PRODUCT SPECIFICATIONS:
Compressor Wheel Inducer: 50mm
Compressor Wheel Exducer: 67mm
Compressor Wheel Trim: 55
Compressor Housing: 0.60 A/R, RB26DETT Style 2 bolt inlet flange and 2 bolt outlet flange
Turbine Wheel Inducer: 54mm
Turbine Wheel Exducer: 47mm
Turbine Wheel Trim: 76
Turbine Housing: 0.64 A/R, T25 Inlet, Internal Wastegate Design, and RB26DETT Specific 5 Bolt Outlet
Internal Wastegate Actuator: 14PSI
