Part Number: 7229B

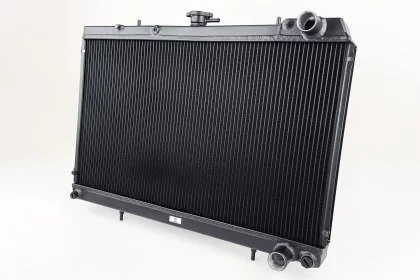

Description: CSF 89-94 Nissan GT-R / GTS / GTE / GXi R32 High-Performance All-Aluminum Radiator - Black

Core Row Quantity: 2

Grade Type: Performance

Radiator Cap Included: Yes

Outlet Connector Type: Slip On

Inlet Connector Type: Slip On

Down Flow Or Cross Flow Type: Down Flow

Internal Engine Oil Cooler: No

Internal Transmission Oil Cooler: No

Outlet Location: Bottom Right

Inlet Location: Top Right

Outlet Diameter: 35mm

Inlet Diameter: 35mm

Core Width: 644mm

Core Material: Aluminum

Core Thickness: 42mm

Core Height: 450mm

Mounting Hardware Included: No

Thermostat Included: No

Tank Material: Aluminum

Mounting Type: Mounts with OE Hardware

Frame Included: No

Coolant Hose Outlet Connection Type: OE Type Connection

Coolant Hose Inlet Connection Type: OE Type Connection

Installation Type: Drop-In Fit Installation

Finish/Color: Black

Fitment: 89-94 Nissan Skyline GTR/GTS/GTE/GXi R32

Details:

The 2-Row 42mm core greatly not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. More cooling rows also improve the overall efficiency of the radiator. More cooling tubes means more surface area for the coolant's heat to dissipate from.

Features and Benefits

• 2-Row - 42mm Ultra-High-Performance Core

• 75 Cooling Tubes with CSF's Exclusive B-Tube Technology

• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact

• CNC Machined Mounting Pins and OEM Style Inlet/Outlet

• 1/8th NPT Temp Sensor Port on Top End Tank

• M16 x 1.5P temperature sensor port with pre-installed plug

• 100% All Aluminum TIG-Welded Construction

• 1.4 Bar High Pressure Radiator Cap with CSF embossed logo

• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications

• Individually Leak and Pressure Tested

• OE Location Fan Shroud Mounting Points

• Satin Black Finish

• 2-Year Limited Warranty
