Part Number: 11001-AT005

Description: HKS GTIII-RS BOLT ON PRO KIT

Fitment: 13-16 Scion FR-S / 13-20 Subaru BRZ / 17-20 Toyota 86

Notes: Not for sale in California not CARB Legal

Details:

The HKS Turbo Kit for the 2017-2020 Toyota 86, 2013-2020 Subaru BRZ, & 2013-2016 Scion FR-S was designed and engineered to add a significant power bump to the ZN6/ZC6 chassis. It is a 100% bolt-on kit shown to provide ~350 hp with a stock FA20. The kit can be used on it's own, or paired with other upgrades for more power (built motor tested to ~450 hp).

The kit includes all the necessary hard parts for installation. You will need to purchase engine management separately (piggy back or stand-alone), larger injectors are necessary (440cc or higher recommended), and upgrade the (for 3 BAR boost) pressure sensor.

Features

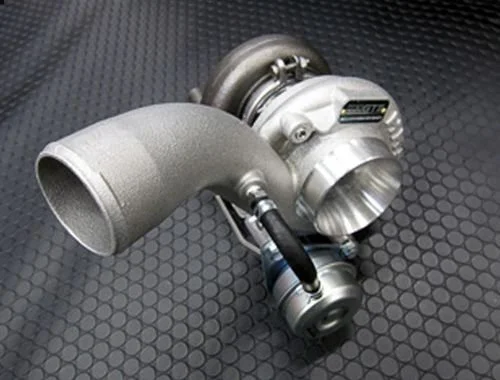

• Dedicated GTIII-RS turbocharger assembly (internal wastegate)

• All necessary oil and water lines

• HKS Power Flow Intake Parts

• Turbo Manifold (Exhaust Manifold) with catalyzer-less down pipe

• Necessary heat shielding

• Gaskets, nuts, bolts and all necessary hardware for installation

*Extension Pipe

Turbo side flange pipe insert portion is counter-bored to eliminate the gap of the pipe edge. This can suppress the exhaust resistance with the effect of the bypass pipe shape. Insulator is included as a countermeasure against heat damage.
