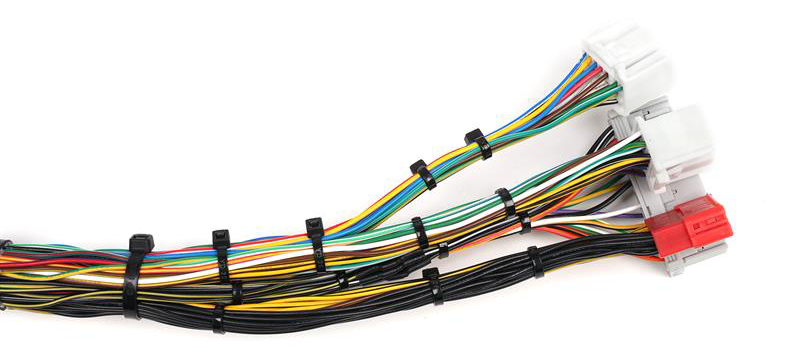

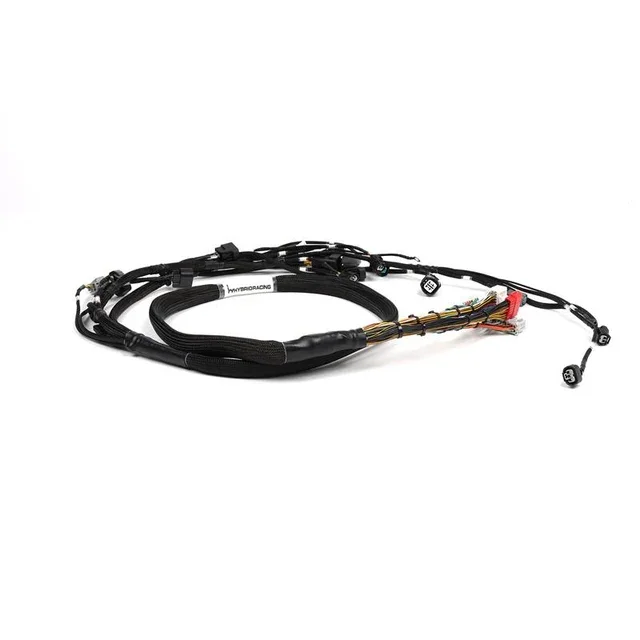

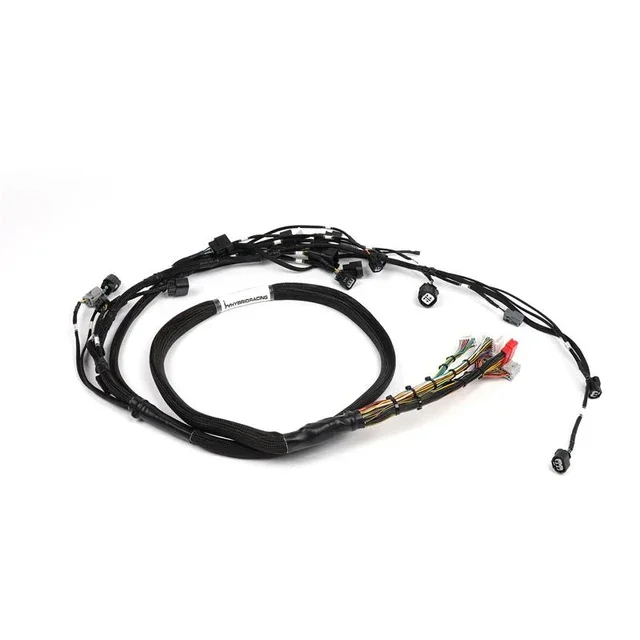

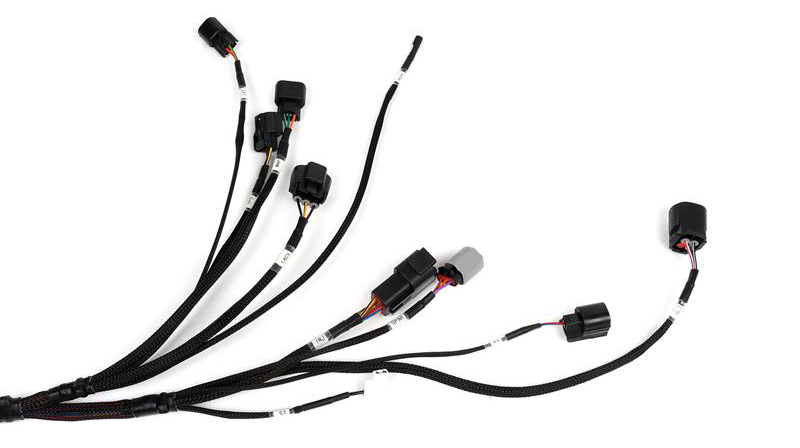

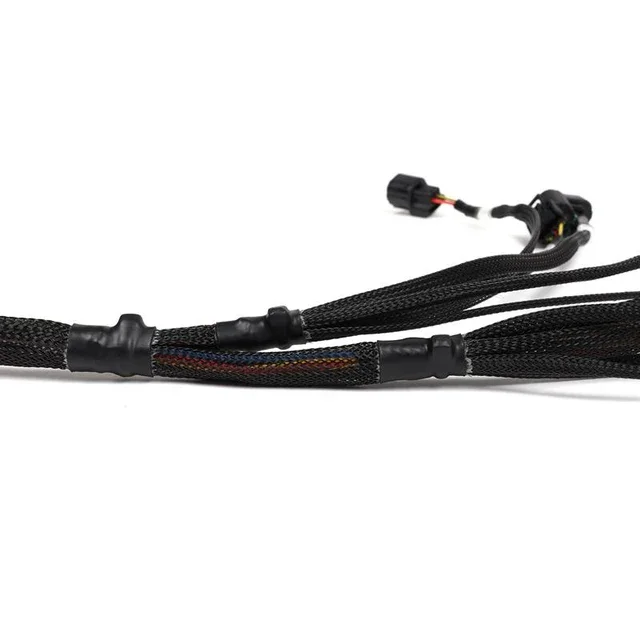

Hybrid Racing Tucked K Swap Engine Harness
Part Number: HYB-EWH-01-05
Description: Hybrid Racing Tucked K Swap Engine Harness
Details:
The Hybrid Racing Tucked K-Series Swap Engine Harness is a complete engine harness built around 2002-2004 RSX Type-S/K20A2 wiring for supported K20 and K24 swaps, with clean tucked routing, OEM Honda wire colors, and machine testing for opens, shorts, and incorrect connections. It includes removable K20A2-style injector and VSS adapters, K24 crank and knock sensor connectors, three spare C101 circuits, and a one-year warranty. Designed for cable-throttle, wideband ECU applications only; not compatible with drive-by-wire, K20C, direct-injected K24, or narrowband ECUs, and most swaps will also require a separate chassis conversion harness.
Install Guide
Included
(1) Engine Harness
(1) K24 Knock Sensor Connector
(1) K24 Crank Sensor Connector
(4) Spare Pins
(4) Spare Seals
(1) Vehicle Speed Sensor Jumper
