Part Number:

• KTD-MAP-B17 (1.7 Bar (NA Range)

• KTD-MAP-B4B (4 Bar)

• KTD-MAP-B7N (7 Bar)

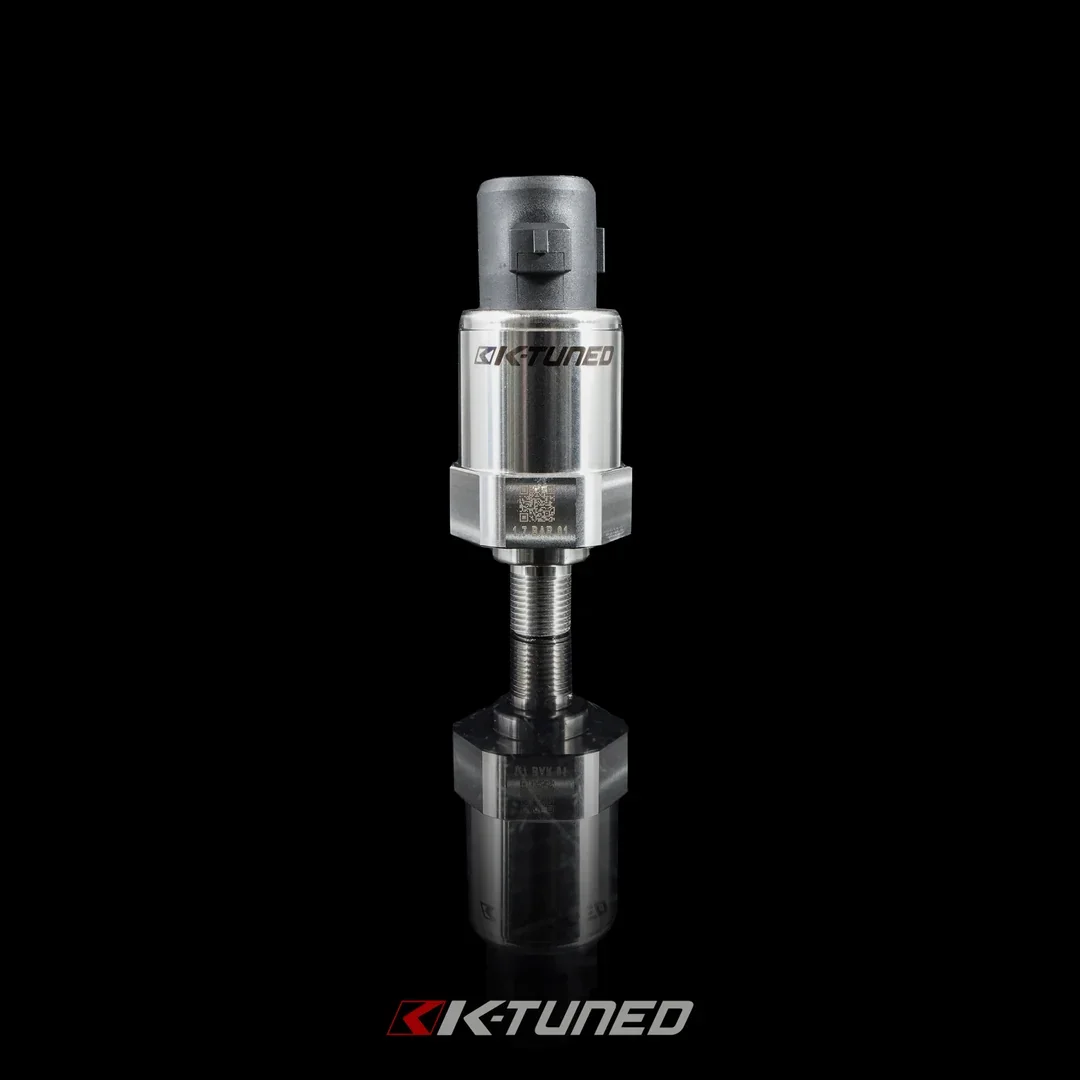

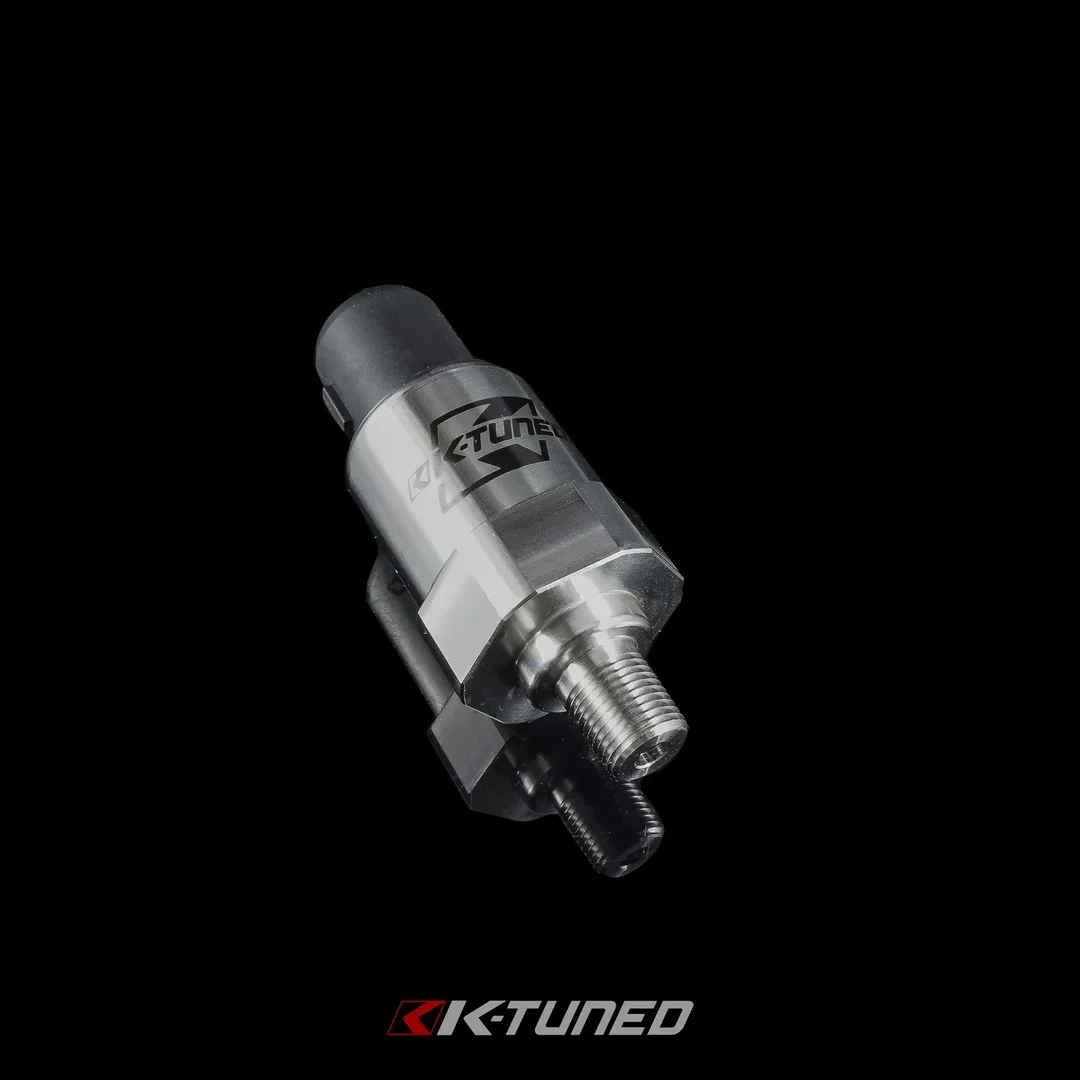

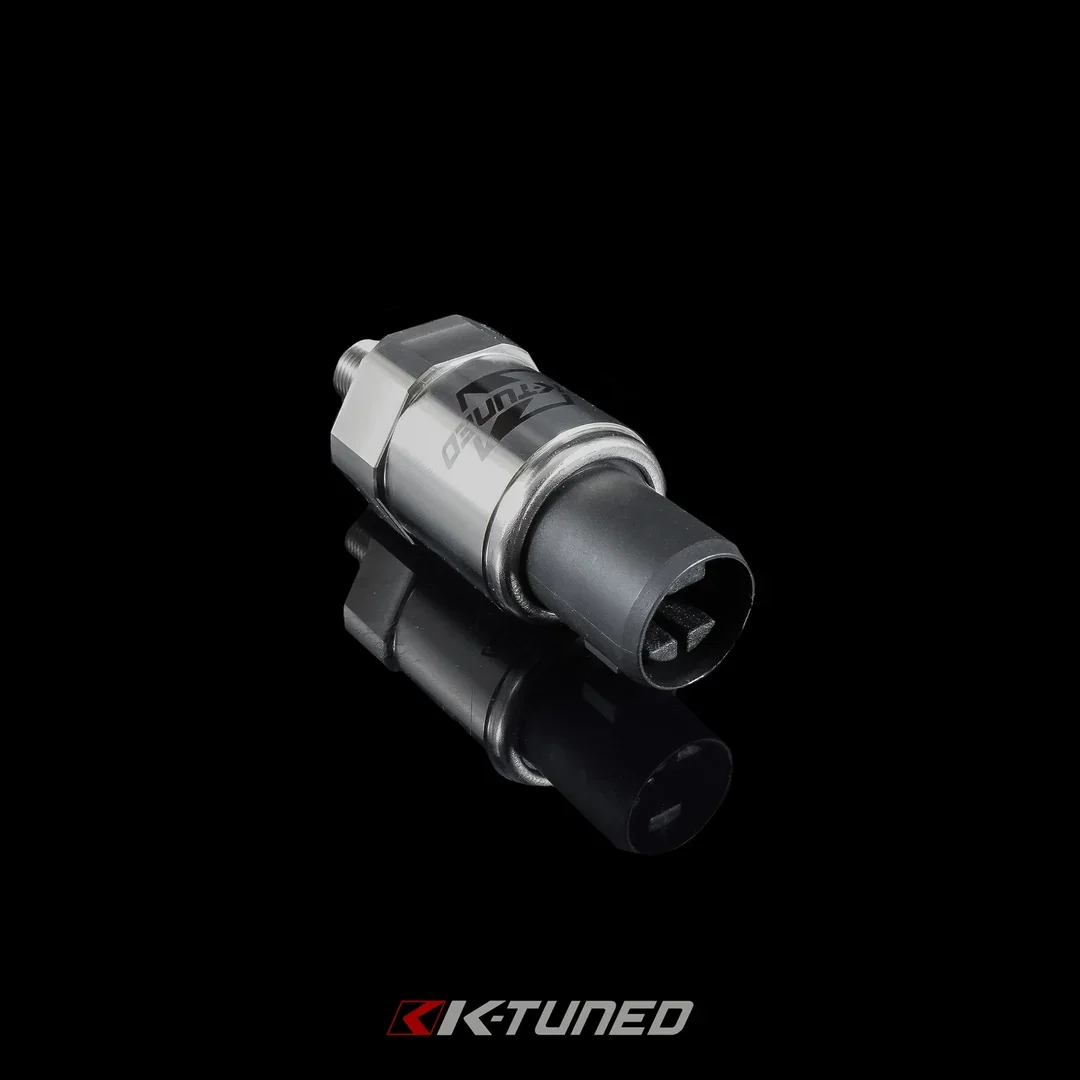

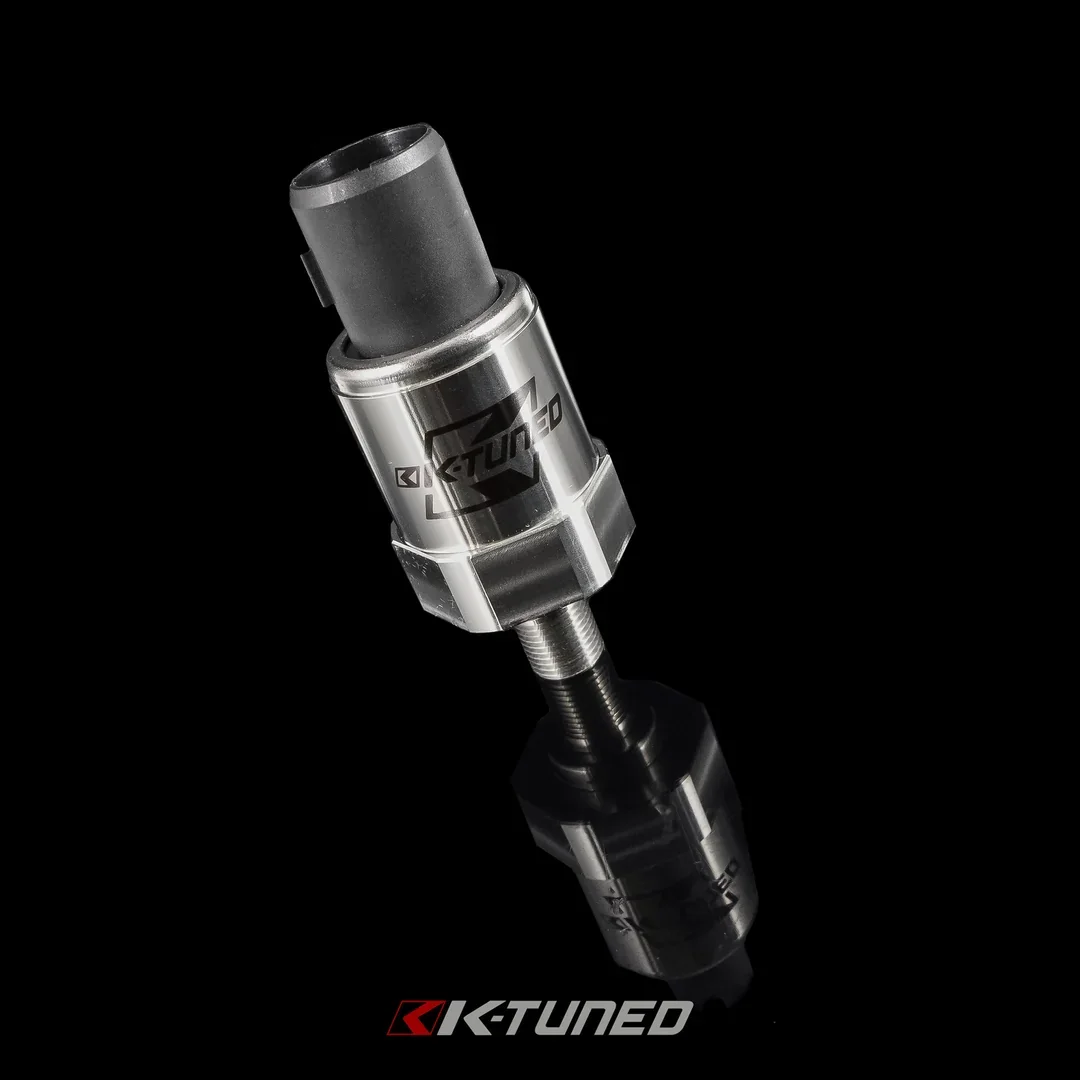

Description: Race MAP Sensor - B-Series

Details:

Applications:

•  Universal MAP Sensor

• 1/8 NPT Inlet

• Standard B-Series connector (See Below for details)

Notes:

• Available in 1.7 Bar (Stock) , 4 BAR and 7 BAR

• Uses OEM B-Series Connector

• 304 Stainless Steel Body - Provides incredible strength

• Optional Remote Mount Bracket

• We offer a 1 Year Warranty with all MAP sensors

• MAP Sensor Voltage Chart - Click Here

K-Tuned Race MAP Sensor are designed to be a simple solution for mounting a MAP sensor, with many aftermarket manifolds and throttle bodies we often lose the OEM MAP port. This Race MAP Sensor offers a simple solution for this. The 1/8 NPT port can be threaded directly in ports on the manifold or throttle body. It can also be remote mounted with a line and optional bracket.

We off this sensor in 1.7 BAR (Stock Reading) , 4BAR and 7BAR. We suggest you pick the sensor that closest matches your real world applications to get the most accurate readings.
