Part Number: PLM-KSWAP-RH-AWD-HDR

Description: PLM Power Driven K-Swap K24 K20 K-Series AWD Header

Details:

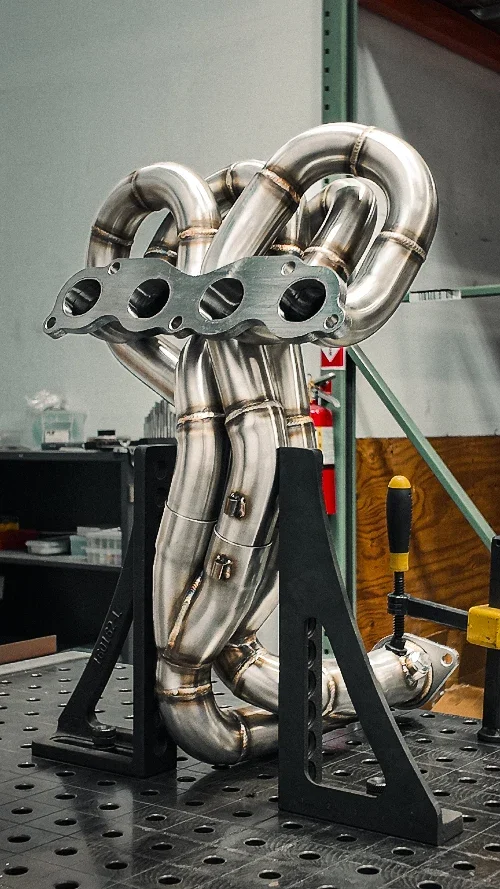

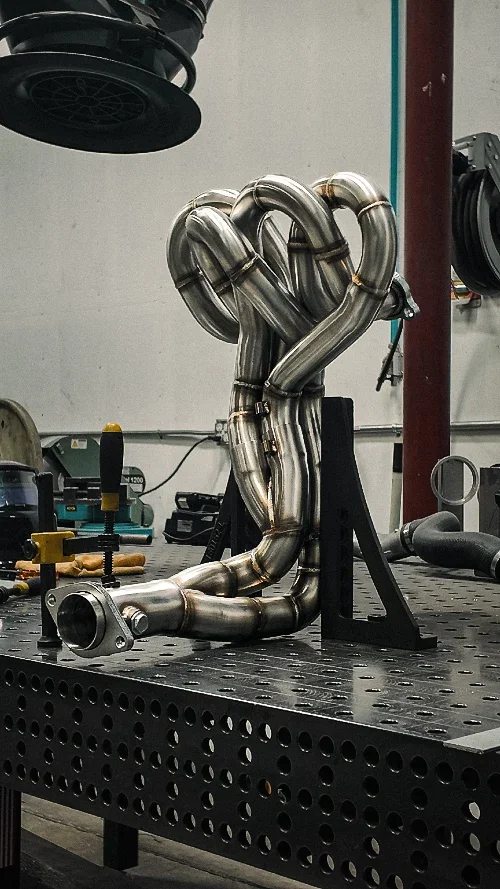

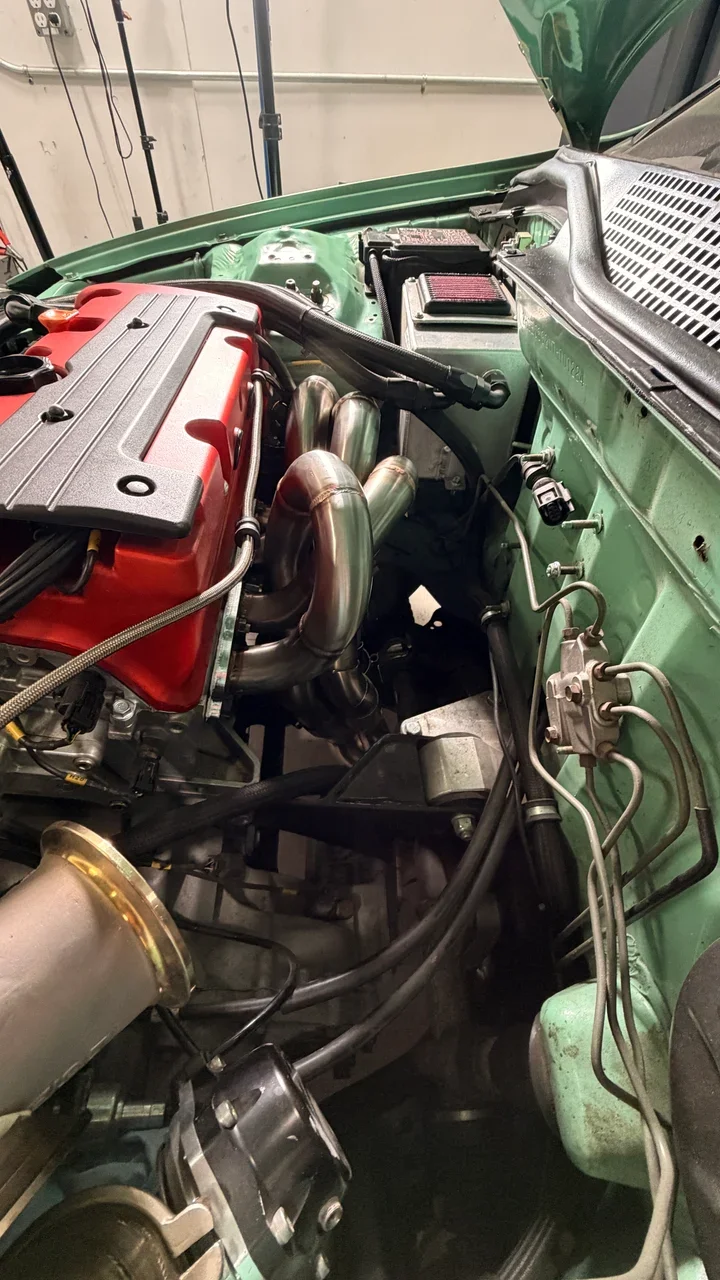

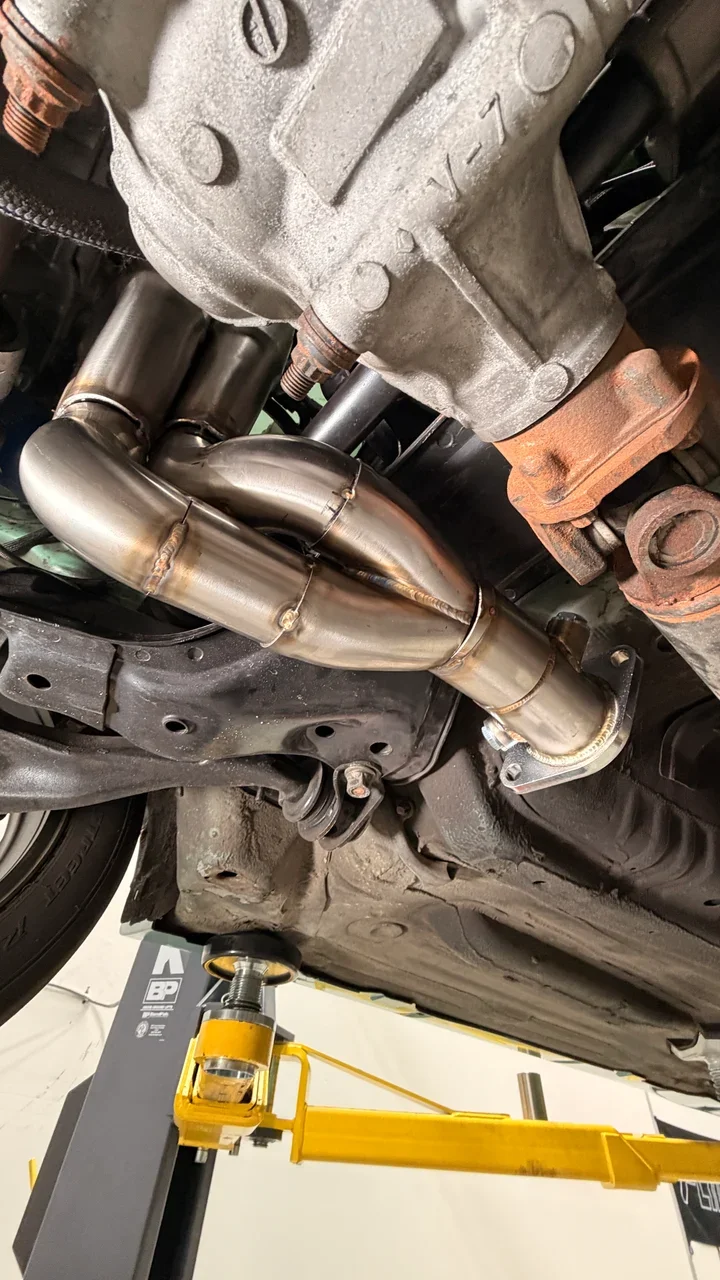

Developed and tested in-house at PLM using our shop-built AWD EK Civic with a K24 engine, the PLM Power Driven K-Swap K20/K24 AWD Header is purpose-built for AWD K-Series swapped applications where performance, fitment, and clearance matter. Released in August 2026, this latest addition to our K-Swap lineup draws on PLM’s extensive experience developing K-Series exhaust components for real-world builds. Designed to deliver strong exhaust flow and power while accommodating the unique drivetrain and packaging requirements of an AWD K-Swap, this header is built for enthusiasts pushing their K20 or K24 AWD setup to the next level—designed by enthusiasts, tested on our own car, and proven in-house at PLM.

Features:

• 2.5" inch collector

• 304 stainless steel

• One year warranty

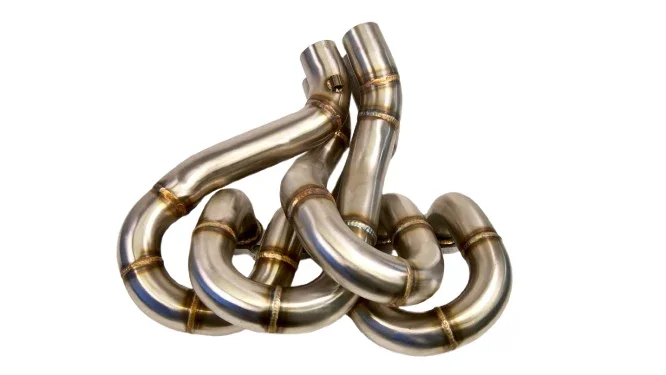

• Long tube header

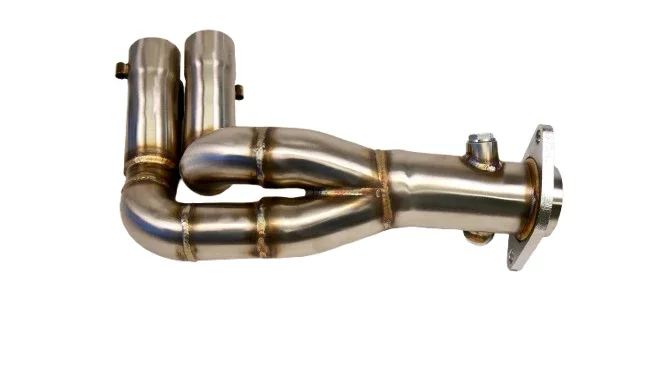

• 4-2-1 tri-y merge collector

• 2-bolt flange

• CNC machined flanges

• Flange is .38" thick

• 18 gauge stainless steel

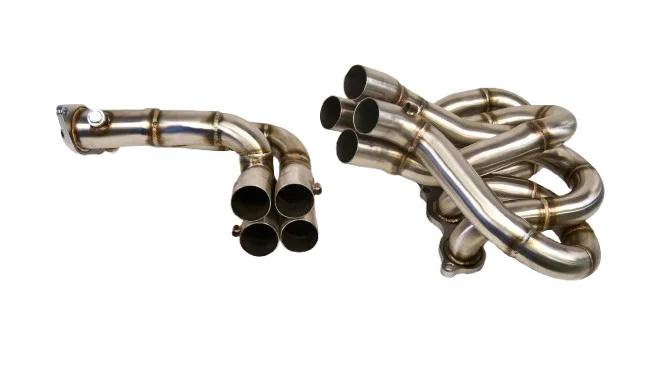

• Two piece slip-fit design

Compatible Vehicles:

• K-Swap K24 K-Series

• K-Swap K20 K-Series

• Honda Civic EG & EK 1992 - 2000

• Acura Integra DC2 1994 - 2001

• Not confirmed to fit CRX / EF

Installation Notes:

• This header is designed based off our Precision Works engine mounts.

• Will work with HASport engine mount

• Will not work with Innovative mounts
