Part Number: KRP-C26-03

Description: Passenger Side Radiator Kit

Fitment: 92-00 Honda Civic / 94-01 Acura Integra / 93-97 Honda Del Sol w/K20A/A2/A3/Z1 Swap

Details:

Note:

• Supplied Upper Hose is NOT designed to fit K20Z3 / K24 style head (Coolant port on the side of the head) But can be bent to work.

• Using EKK1 may have fitment issues

• If the car is a Civic EK, the car must be equipped with Hasport EKK2 Mounts and have K20A, K20A2, K20A3 or K20Z1 cylinder head.

• Radiator Core Dimensions - 12' x 13' x 1.75'

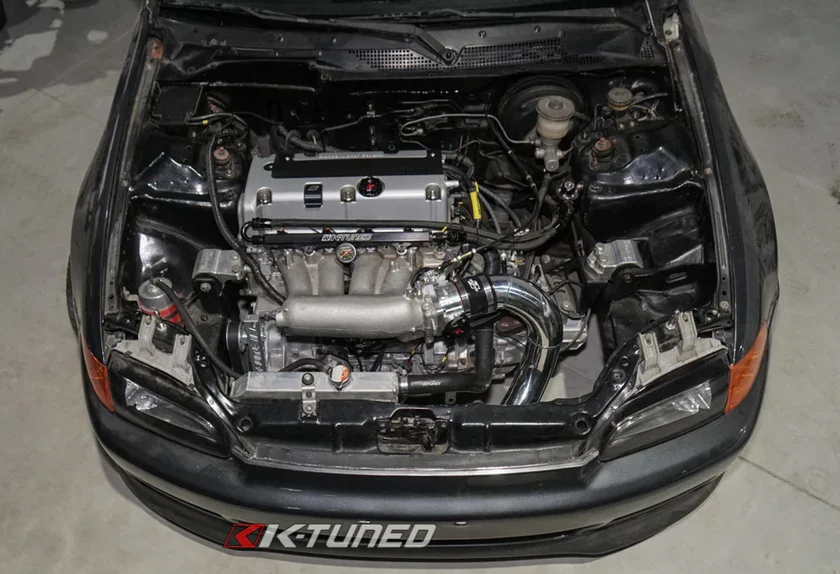

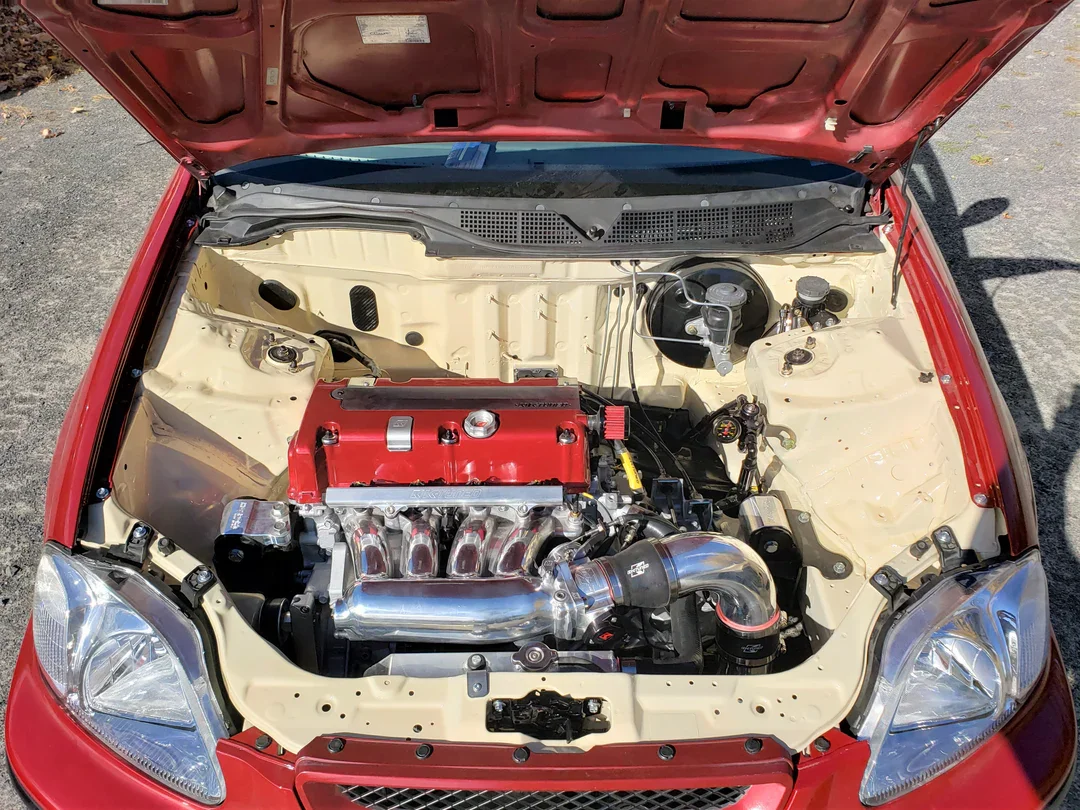

It took a couple years for us to design what we feel is the best K-series swap radiator available. Looking at current & past designs and their flaws, we finally came up with a rad design that meets our high standards. Our K-swap experience showed us that rad installs have usually required relocated rad brackets or modification to the rad itself. Not anymore! The K-Tuned Passenger radiator drops right into the oem passenger side location and requires zero modifications to make it fit. The kit includes our high quality aluminum rad, a set of our custom fitted hoses, SS T-bolt clamps, and a slim design rad fan with mounting ties.
