Part Number: 20947

Description: Moroso TOYOTA 1JZ/2JZ Front Sump Road Race Baffled 4in Deep Oil Pan

Fitment: 98-05 Lexus GS300 / 98-05 Toyota Aristo

Details:

Steel, Wet Sump, 4" Deep, 7-9/16" Long, 16" Wide, 6 Quart Capacity (Plus Filter)

Engine Applications: Toyota 1JZ-GE/1JZ-GTE & 2JZ-GE/2JZ-GTE, Dart 2JZ Iron Eagle, etc.

Fits; Most Toyota JZ-Equipped Chassis Requiring Front Sump (Other applications check dimensions for fitment)

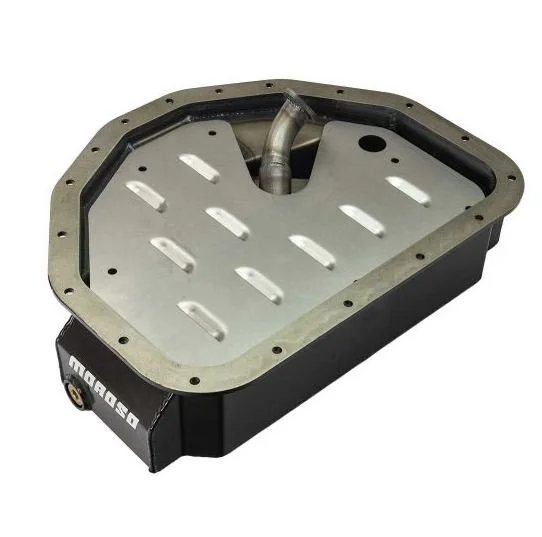

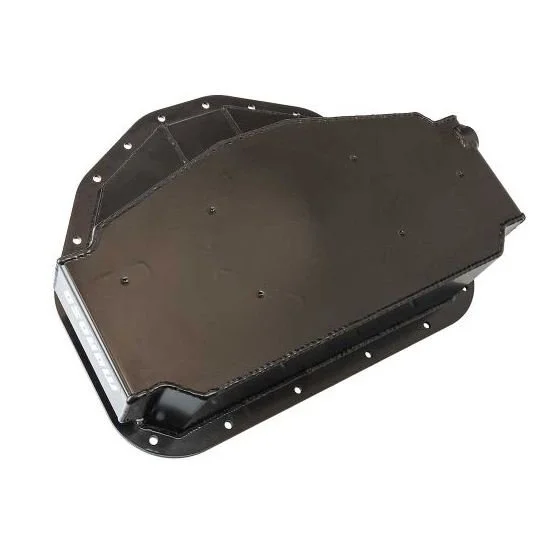

Fully fabricated steel lower oil pan with laser cut rail

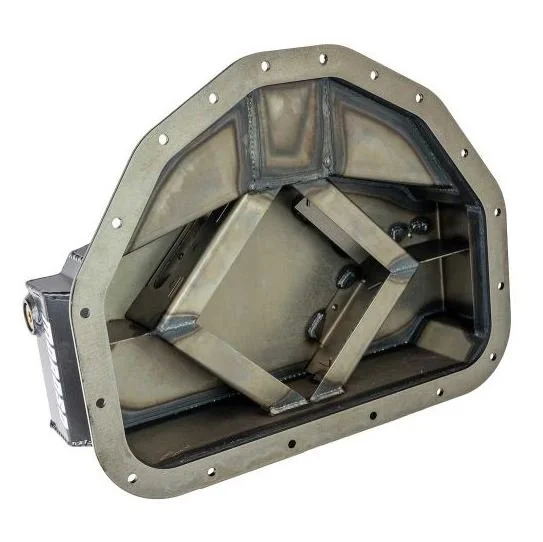

Four integrated trap doors for superior oil control

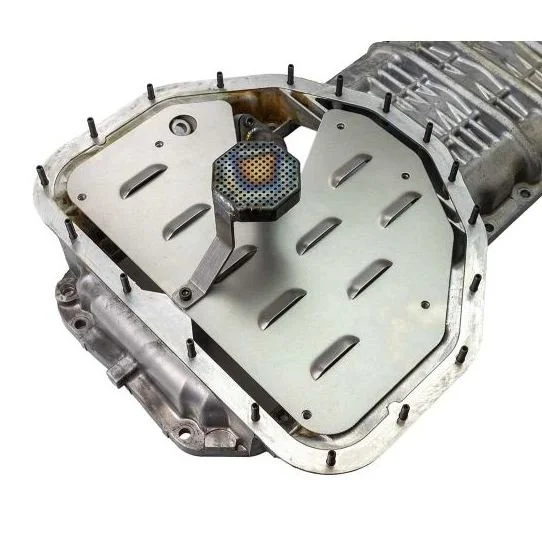

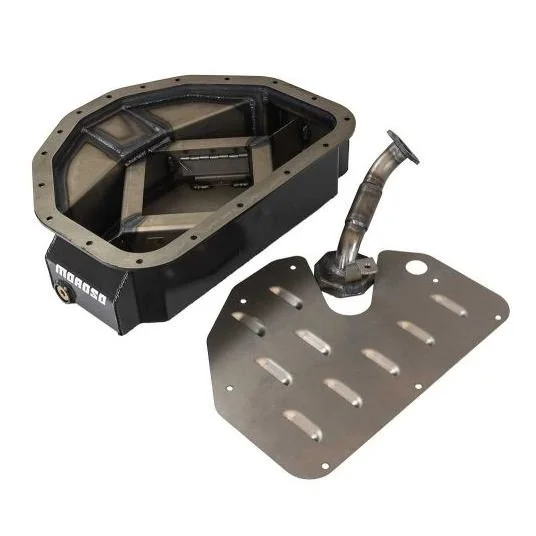

Includes heavy duty high flow pick up* and louvered anti-slosh baffle
Compatible with OEM Toyota cast upper pans

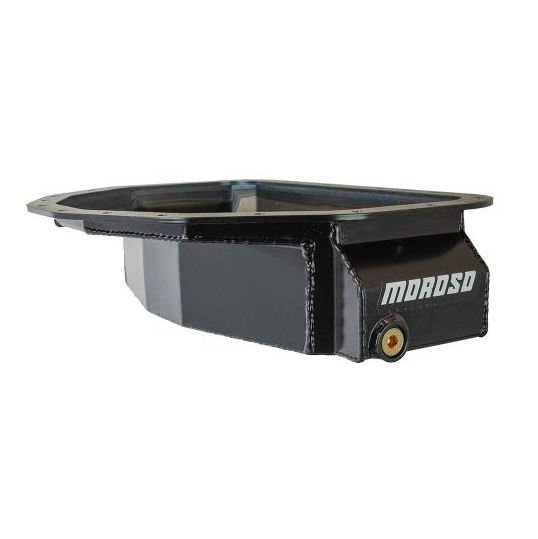

Black powder coat finish by Moroso Powder Coating
-8AN magnetic drain plug with O-ring seal
Compatible with JZ-equipped chassis such as Toyota JZX90/JZX100/JZX110, Altezza/IS300, GS300 and JZ-swapped applications requiring a front sump pan (check dimensions)
*Moroso Front Sump JZ oil pan is 4" deep and designed to be used with the included oil pick up. OEM pick ups from shallower JZX-style pans (around 3" deep) are not recommended.
