Part Number: 22004-AZ001

Description: HKS “Slide Cam Pulley” for MAZDA “B6/BP” Engine

Fitment: 90-97 Mazda Miata 1.6L/1.8L

Notes: Pulley sold as Individual

Notes: Not for sale in California not CARB Legal

Details:

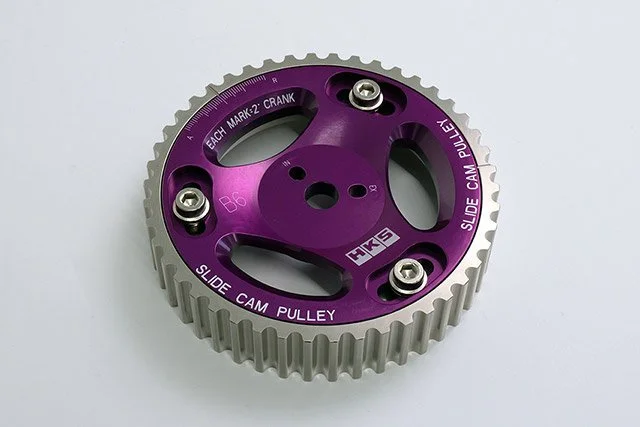

• “SLIDE CAM PULLEY” for the “B6-ZE” and “BP-ZE” engines used in highly popular vehicles such as the “NA” and “NB” Mazda MX-5/Miata/Roadster. Both the material and shape have been designed with a focus on weight reduction.

• Ultra-lightweight duralumin material (A2014) is used as the base material.

• The shape of the product has also been reconsidered and improved from the previous series.

• The weight is reduced by about 7% from “0.350kg” to “0.327kg” of the predecessor product.

• Surface of gear is plated with nickel to improve durability. Designed to withstand possible abrasion caused by foreign objects.

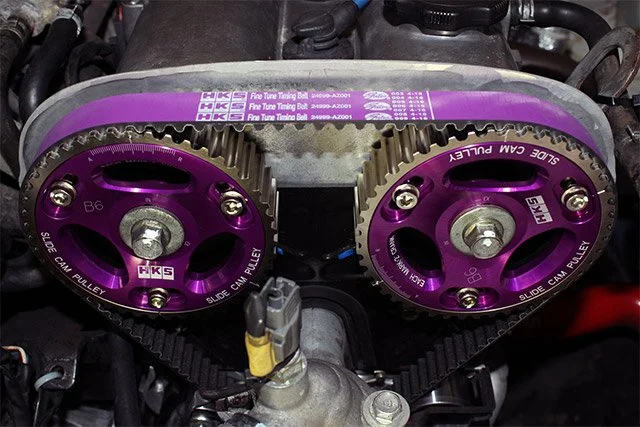

• It is also suitable for use with our reinforced timing belt, “HKS FINE TUNE TIMING BELT”, available on the market now. Recommended for users who thoroughly enjoy sports driving.

• Various engine specifications can be satisfied by the angle adjustment mechanism. (One scale on the pulley indicates a crank angle of 2°.

• To prevent adjustment errors, A (Advance) and R (Retard) are engraved for visual confirmation.

• Adjustable angle from -20° to 20°.
