Part Number: SPL RML Z34 V3

Description: Rear Toe Mid Links

Fitment: 23+ Nissan Z

Details:

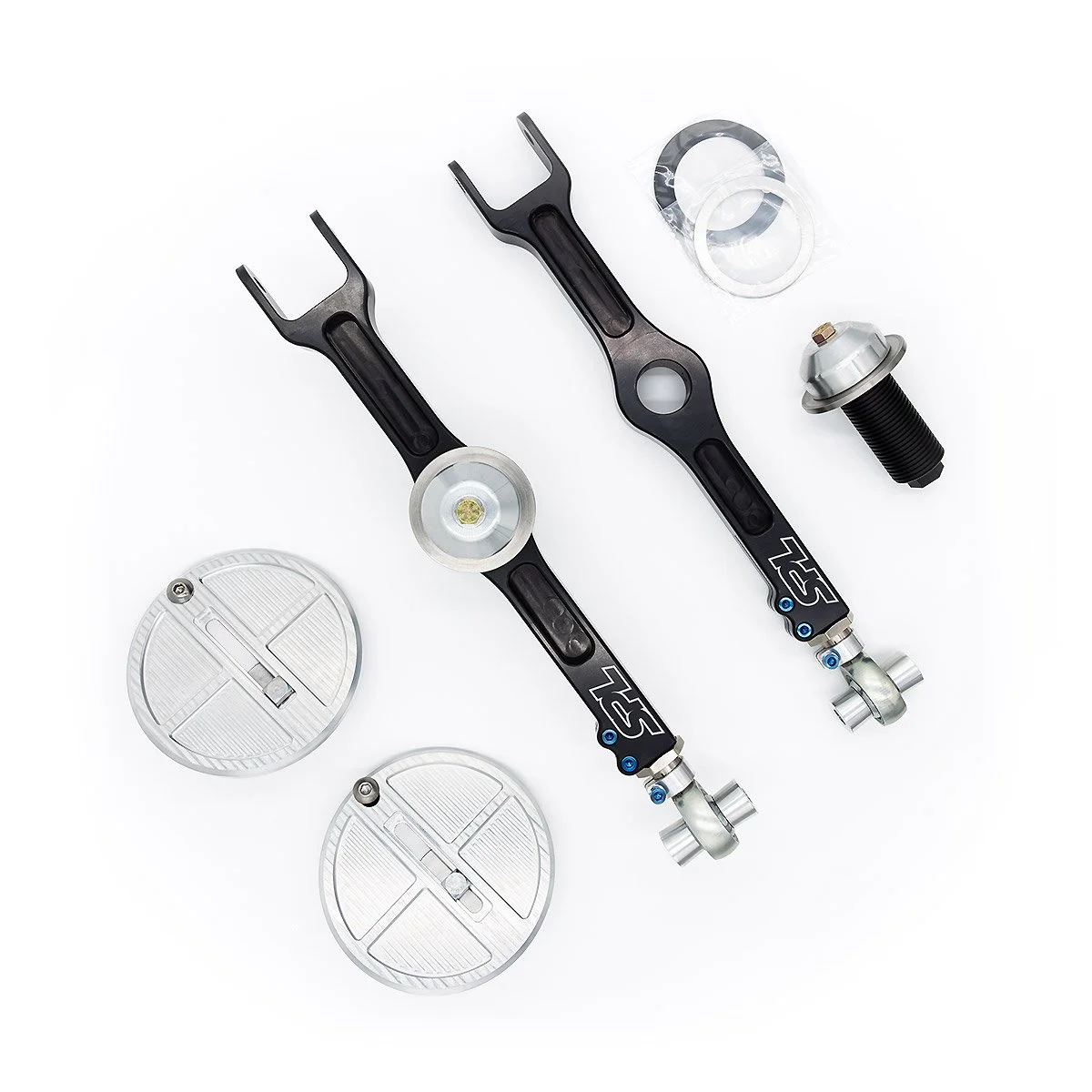

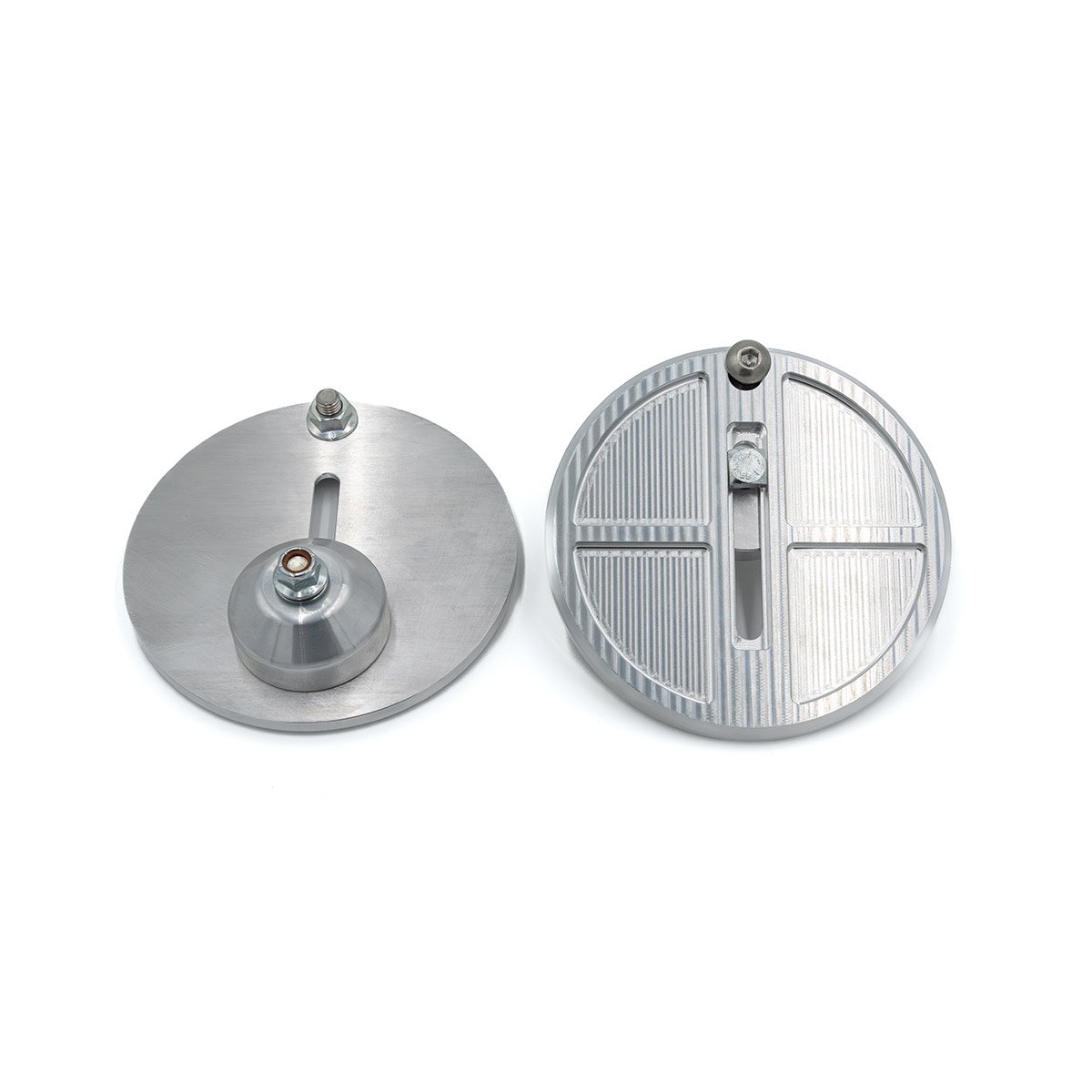

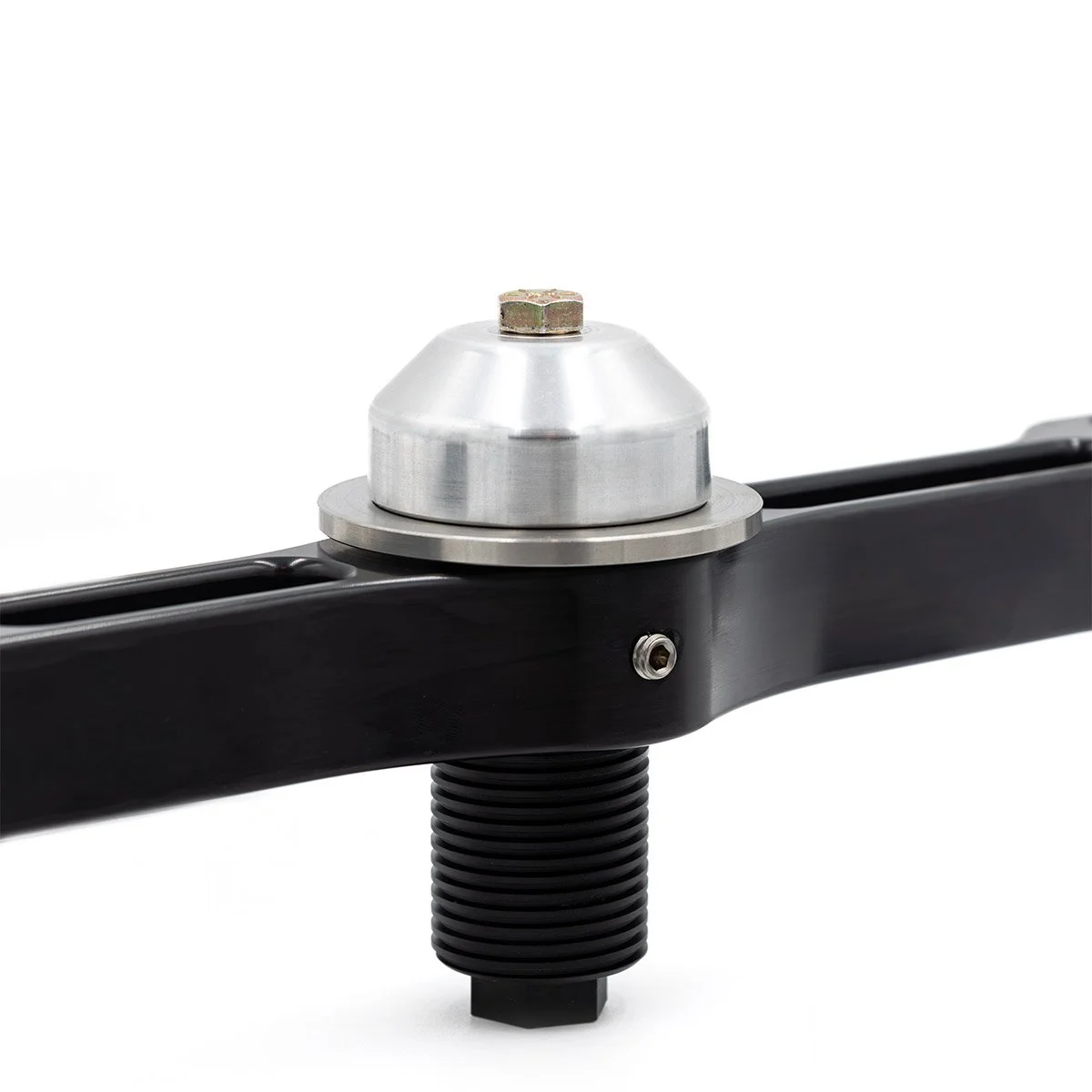

SPL Rear Mid Links (RML) replace the stock spring bucket arms to offer complete control over rear toe, rear spring rate, and ride height. The threaded spring perch accepts common 60mm ID springs and allows corner weighting with fine adjustment of ride height. The upper spring perch also has a linear adjustment range to match the spring location and reduce misalignment.

We recommend pairing our midlinks with our eccentric lockout kit (ELT Z34) to eliminate the stock eccentric bolt, which can slip under significant load and ruin your alignment, leading to aggressive tire wear and poor handling in most cases. This also prevents the need to re-align the upper spring seat every time the eccentric is adjusted.

Does not include springs.

Benefits

• Large Range of Toe Adjustment

• Lightweight: 4.828 lbs (2.19 kg) per Side with Upper Perches

• Quickly Change Rear Spring Rates

• Adjust Rear Ride Height

• Less Rear Toe Change from Bushing Deflection

• Maintenance-Free, US Made, PTFE-Lined FK Bearings

Materials

• 6061-T6 Aluminum Arm Body

• 6061-T6 Aluminum Spacers & Spring Alignment Pucks

• 4130 Chromoly Steel Double Adjuster

• 304 Stainless Steel Spring Seats

• Ti-6Al-4V Titanium Hardware (Anodized Blue)

• Swift 60mm Spring Thrust Washers

The SPL rear mid links are not a significant contributor to NVH directly, however any aftermarket spring replacement can produces occassional noise during normal operation. Reducing friction at the spring seats to allow the spring to rotate freely will greatly reduce the chances of noise occurring. Nissan/Infiniti also use a spherical bushing on some of the spring bucket arm variations for the Z/G-chassis.

Sold as a pair. One pair per vehicle.

Replaces OEM Part Numbers

This is a list of known OEM part numbers. OEMs constantly make changes to part numbers due to part updates, suppliers, etc so this may not be a complete list.

Nissan
551B0-JK010
551B0-JL00A
551B0-JK010

Install Instructions

SPL RML Z34 Midlink Instructions
