Part Number: 7222

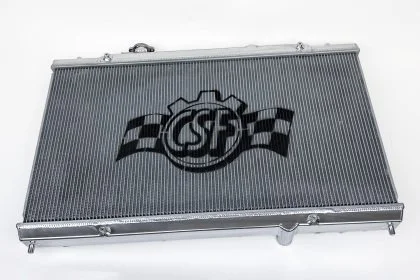

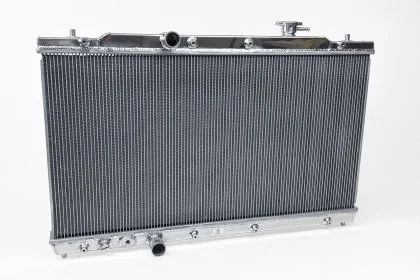

Description: CSF High Performance All Aluminum Radiator

Core Material: Aluminum

Finish/Color: Polished

Installation Type: Drop-In Fit Installation

Coolant Hose Inlet Connection Type: OE Type Connection

Coolant Hose Outlet Connection Type: OE Type Connection

Core Height: 15.75 in.

Core Row Quantity: 2

Core Thickness: 42mm

Core Width: 29.6875 in.

Down Flow Or Cross Flow Type: Down Flow

Fitment: 23+ Honda Accord 1.5T

Details:

CSF has a long and successful track record with Honda cooling systems. This history includes making factory radiators for Honda Performance Development (HPD). Honda uses the CSF private label HPD Race Radiator for the FK8 Civic Type R TCR and recently took delivery of a new system CSF developed for the FL5. CSF used the information and experience from building this Race Radiator to design a High-Performance version for the new FL5 CTR and the FE1 Civic Si. Like the racing radiator, this new High-Performance version features CSF's latest 5mm fin cooling technology. The new fin design increases the heat transfer area of the radiator by 20-25% over other larger fin designs.

Features and Benefits

• 2-Row, 42mm Ultra-High-Performance Core

• Cooling Tubes with CSF's Exclusive B-Tube Technology

• New 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact

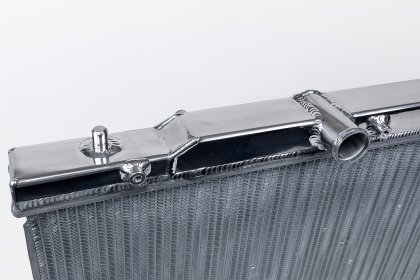

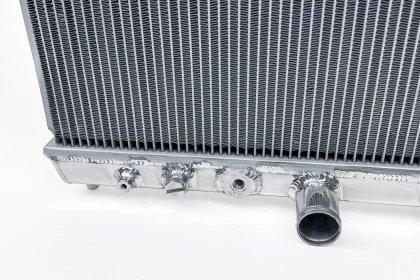

• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet

• 100% All Aluminum TIG-Welded Construction

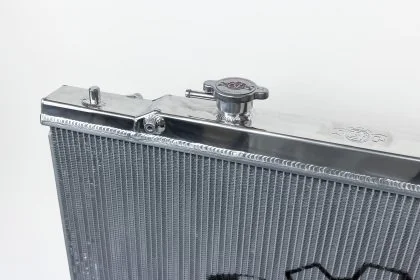

• 1.4 Bar (20psi) High Pressure Radiator Cap with CSF logo

• 1-Hour "Mirror Finish" Hand Polish

• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications

• Individually Leak and Pressure Tested

• 2-Year Limited Warranty
