Part Number: IC_FL5_FMIC

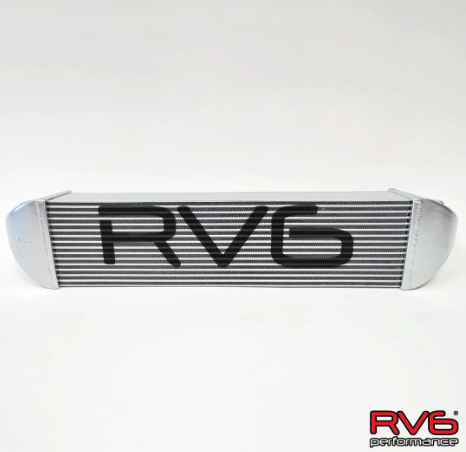

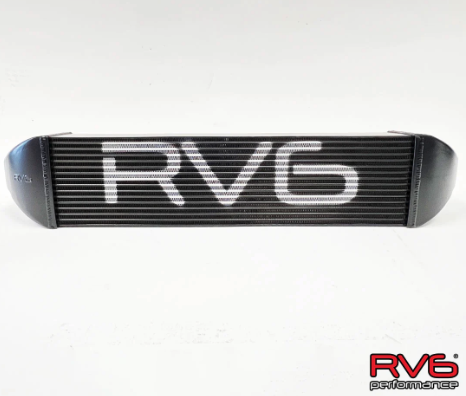

Description: RV6 Tube & Fin Front Mount Intercooler

Fitment: 23+ Honda Civic Type R FL5 / 23+ Acura Integra Type S DE5

Details:

"We are pleased to announce the release of the first RV6 Tube and Fin
Front-Mount Intercooler (IC) for the 11th gen Honda FL5 Civic Type R
and 5th gen Acura DE5 Integra Type S. This product has been designed
by us over the course of the last 1.5 years and will deliver the cooling
performance improvements needed by users with both OEM turbos, our
turbo upgrades, and other aftermarket turbos. According to our
research, we chose the extruded square internal tube and fin design for
the best cooling rate, low weight with high strength—unlike traditional
tube-and-V-fin designs—and its ability to deliver an optimal cooler core.
Overall, there is a weight reduction compared to the typical bar and
plate designs which are much heavier yet do not have the longer-term
cooling efficiencies required for intensive use or track conditions.
To maintain a lower cost of manufacturing, we also chose to design with
cast alloy end tanks vs. CNC billet end tanks at this time. This may
change in the future as we continue to see market adoption for our
initial IC being released on July 31, 2025." - RV6 Performance

Specifications

● Tube and fin design with square extrusions and internal vertical
fins for strength, optimum cooling efficiencies without sacrificing
pressure changes or drops, and maintaining light weight.

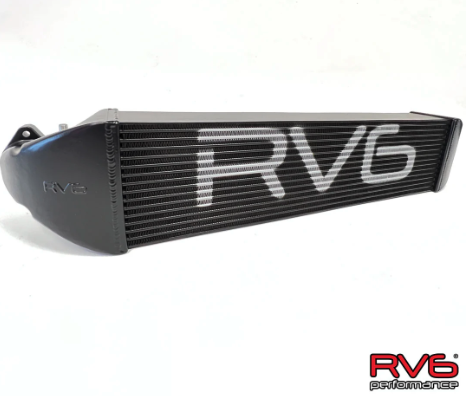

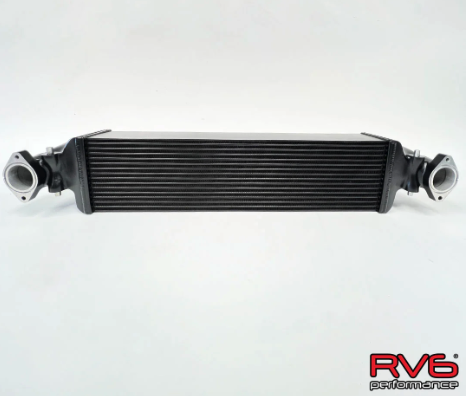

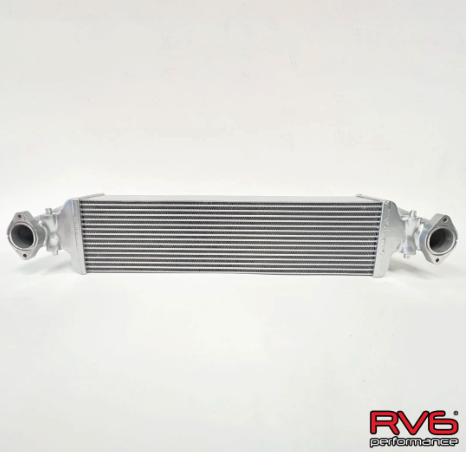

● Powder coated silver or black
● Core dimensions: 27.50” wide x 7.00” high x 4.00” deep
● Weight: 24lbs.
● Cast alloy end tanks with raised “RV6” logo on passenger side
end tank.
● Hardware included: 2x O-rings, 2x top bulb pressure fit rubber
air seals, 1x Acrylic “RV6” stencil, and pry tool kit.
● Installation instructions will be printed and included with the
hardware kit
