Part Number: 12050201

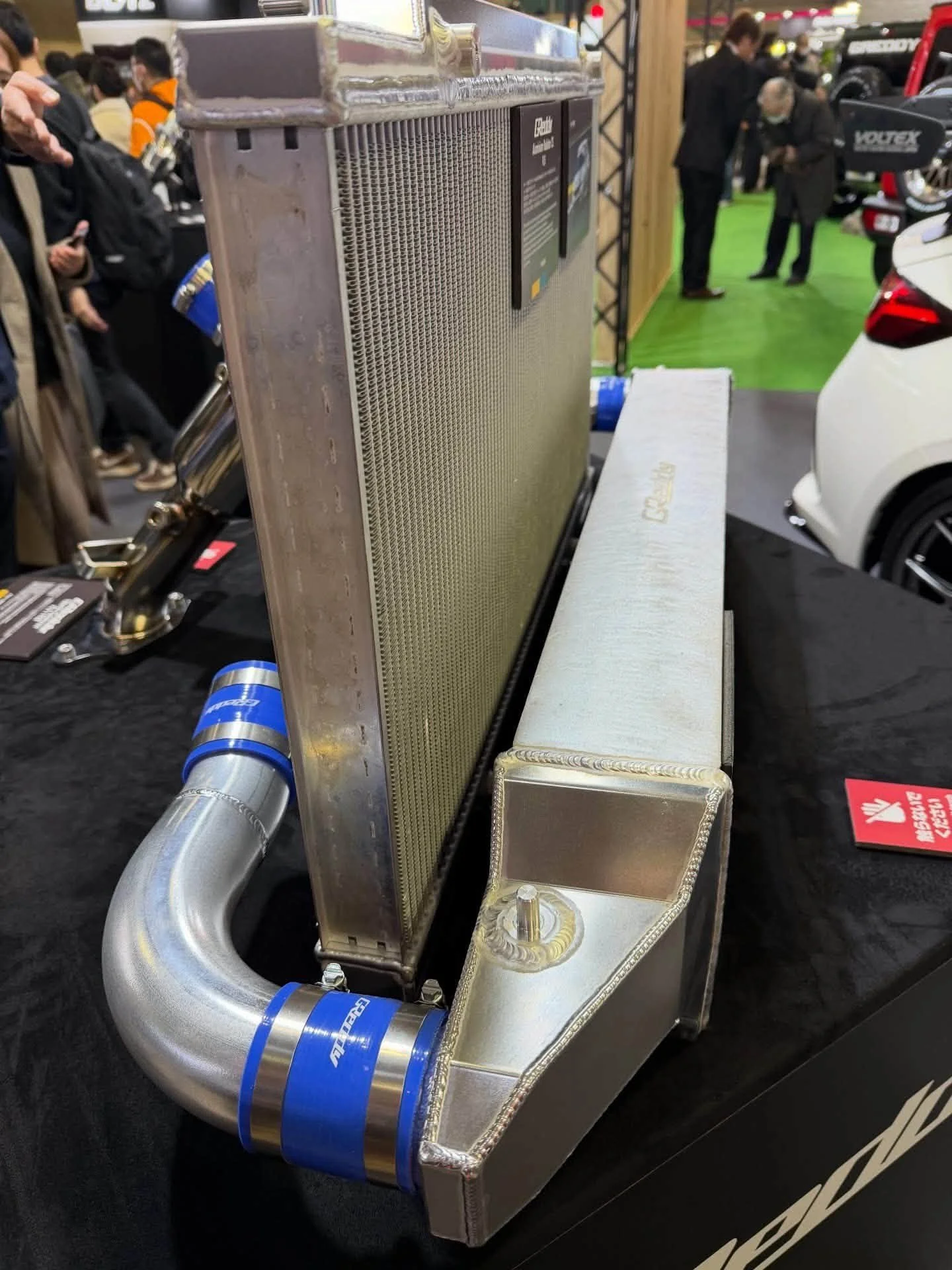

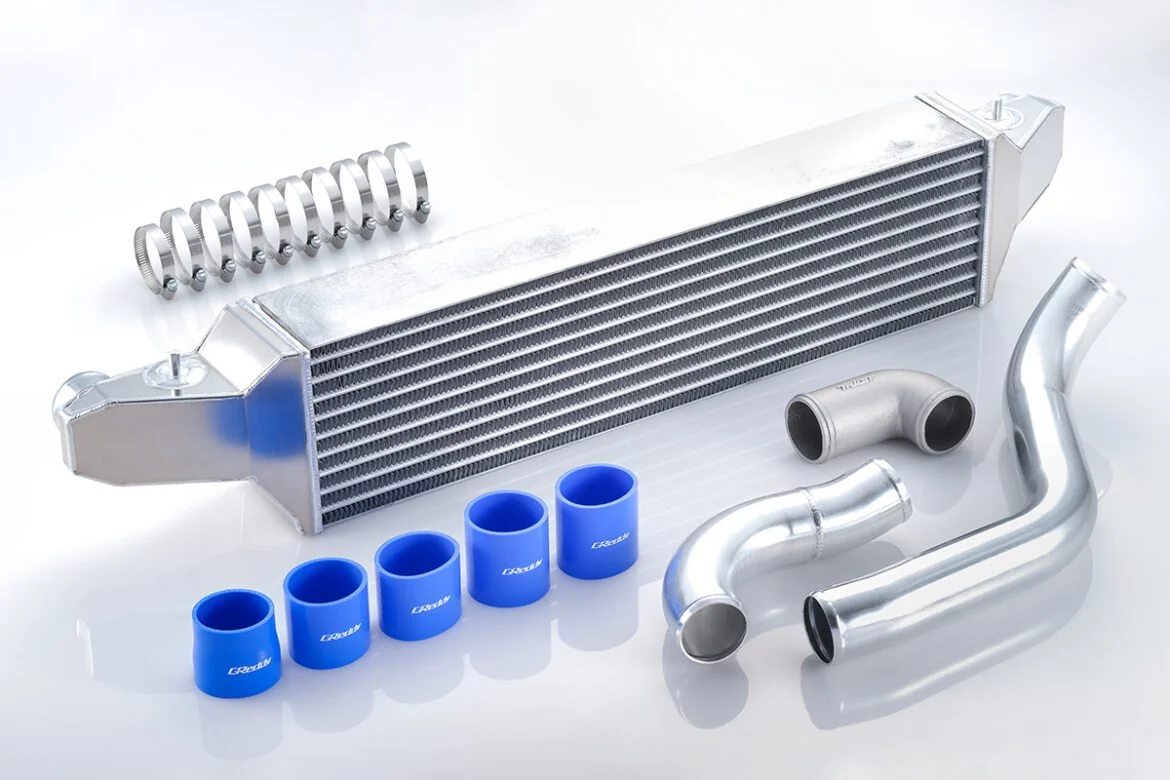

Description: GReddy Intercooler Kit

Fitment: 23+ Honda Civic Type R FL5

Details:

– Product Features

• ● Designed with cooling efficiency as a priority to maximize filling efficiency, enabling high power and high boost.

• ● The inner fins feature an offset design. This optimizes pressure loss and cooling efficiency, making them suitable for high-boost tuning applications.

• ●Replacing the section from the turbine outlet to the throttle body inlet pipe with an aluminum pipe helps prevent the expansion and deformation that occur with the stock rubber hose, enabling a stable supply of air to the engine.

• ● GReddy silicone hoses, which offer high heat resistance, pressure resistance, and ozone resistance and are highly resistant to deterioration, are used at the joints.

Product Specifications

• ◆I/C Core: TYPE45F (Core Size: L693 × H178 × W100)

• ◆Side Tank: 60φ diameter, barrel finish

• ◆Intake Tube: 60φ aluminum on the IN/OUT sides, barrel-finished

  [Estimated Installation Time] Approximately 4 hours
