Part Number: 8343

Description: CSF Radiators Dual Engine Oil Cooler Kit

Fitment:

• 23+ Honda Civic Type R FL5

• 23+ Acura Integra Type S DE5 will require different venting system

Details:

It didn't take long for the FL5 Civic Type R to start hitting the track and being involved in a variety of racing series in large numbers. The car comes from the factory tuned for incredible handling and ample power to keep up with plenty of production sports cars. However, there is one area the Honda engineering team came up short, and that was the oil cooling system.

Drivers regularly see high oil temperatures completely stock and even higher on modified examples. In testing, CSF observed temperatures over 275°F (135°C) on the track, and it was clear the FL5 needed a solution. The engineering team set out to develop CSF's first ever complete engine oil cooler kit, and the results speak for themselves. CSF's new engine oil cooler kit is the ?Real Deal? with stunning performance and an aggressive look to match.

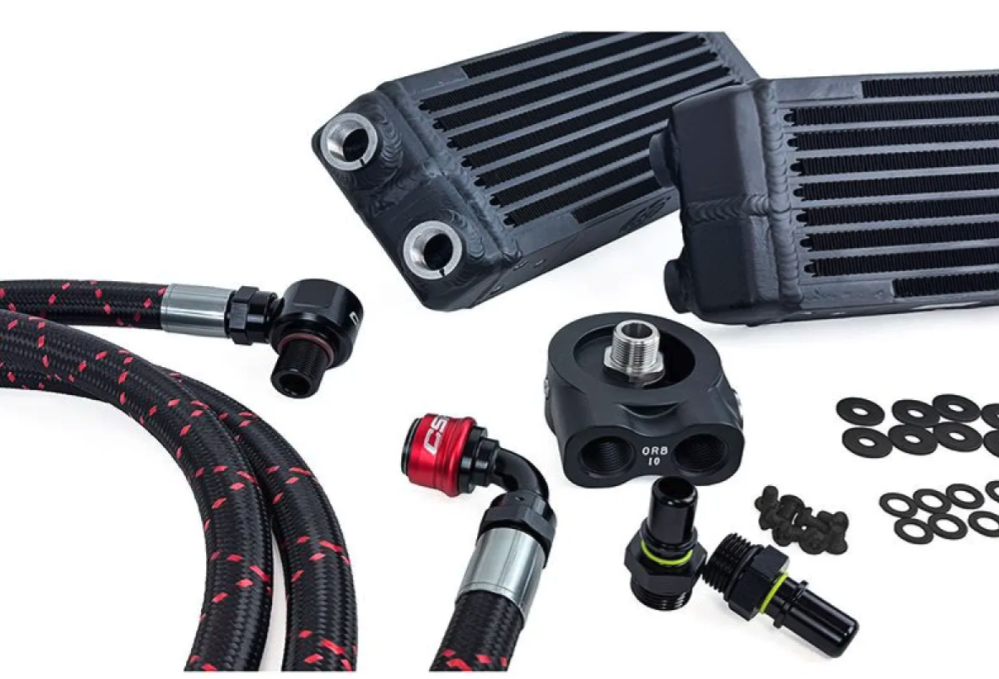

Features:

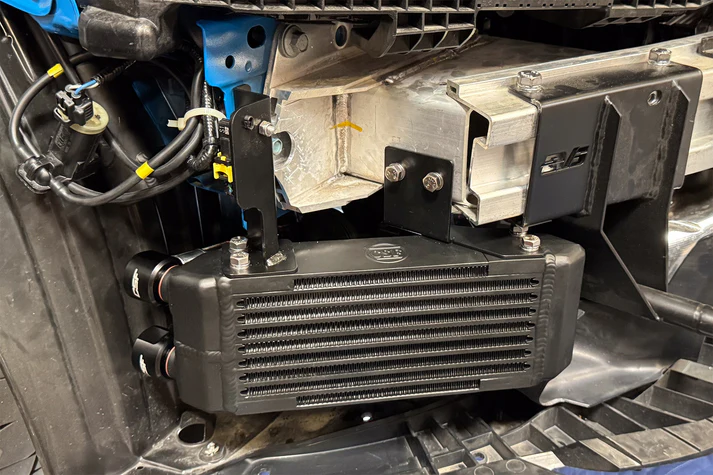

• Two CSF #8119 High-Performance Dual Pass Oil Cooler

  • Bar/Plate Core offers strength and durability

  • 100% TIG Welded Construction tested to 120 PSI

  • Smooth 40-degree feed/return fitting design

  • Dual Pass flow for additional cooling

  • Oil Capacity increased by over 2 Quarts (2 Liters)

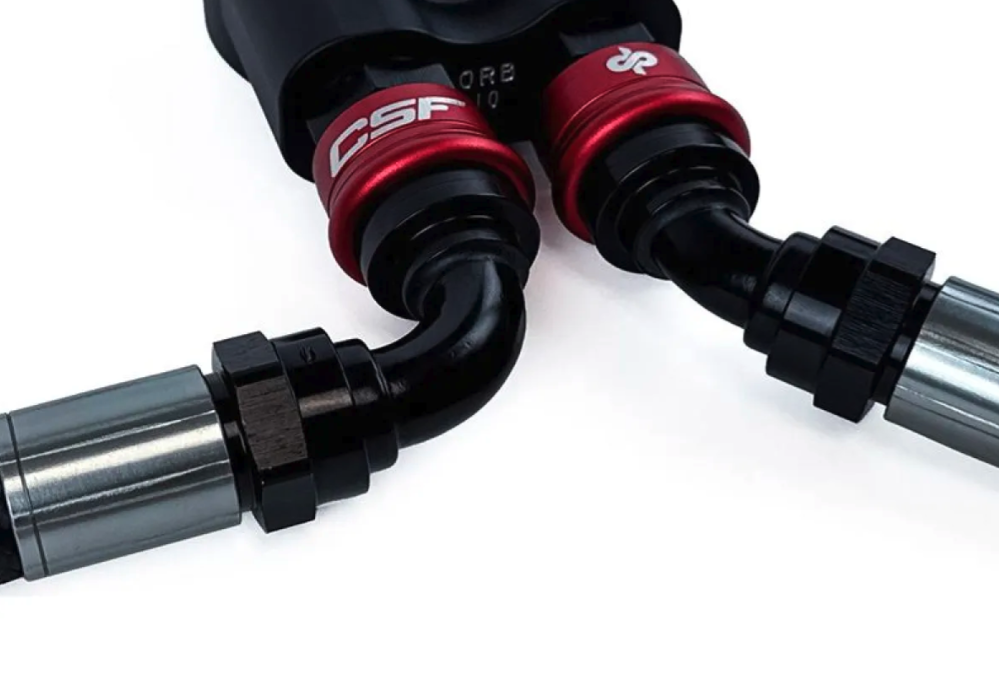

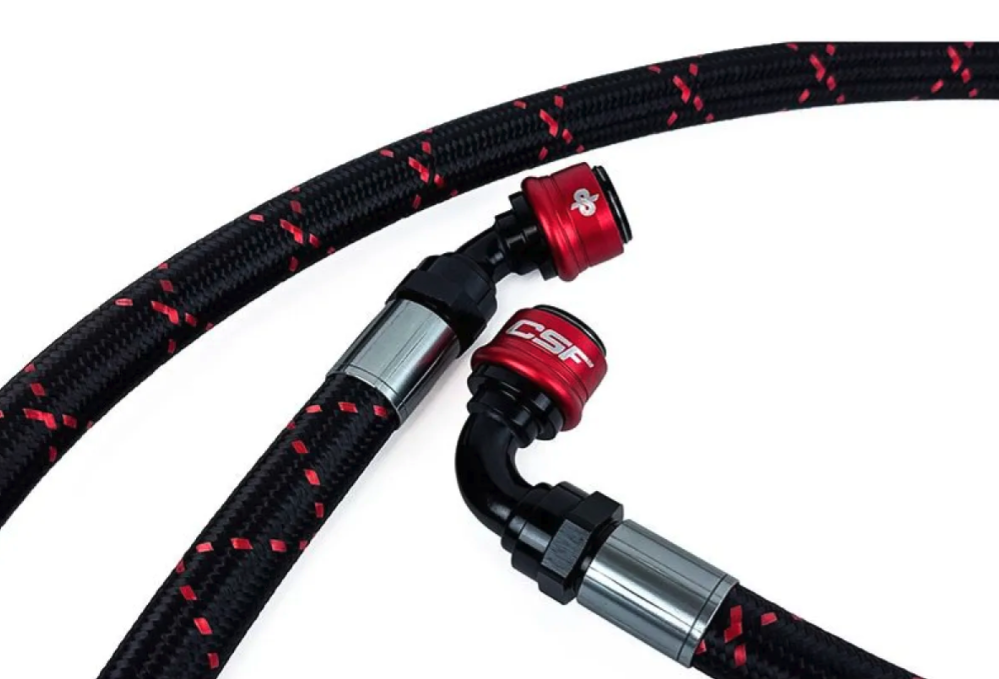

• Motorsports grade AN lines with patented quick release fittings by DYME PSI

  • 304 Stainless Steel reinforcing braid and Polyethylene top braid

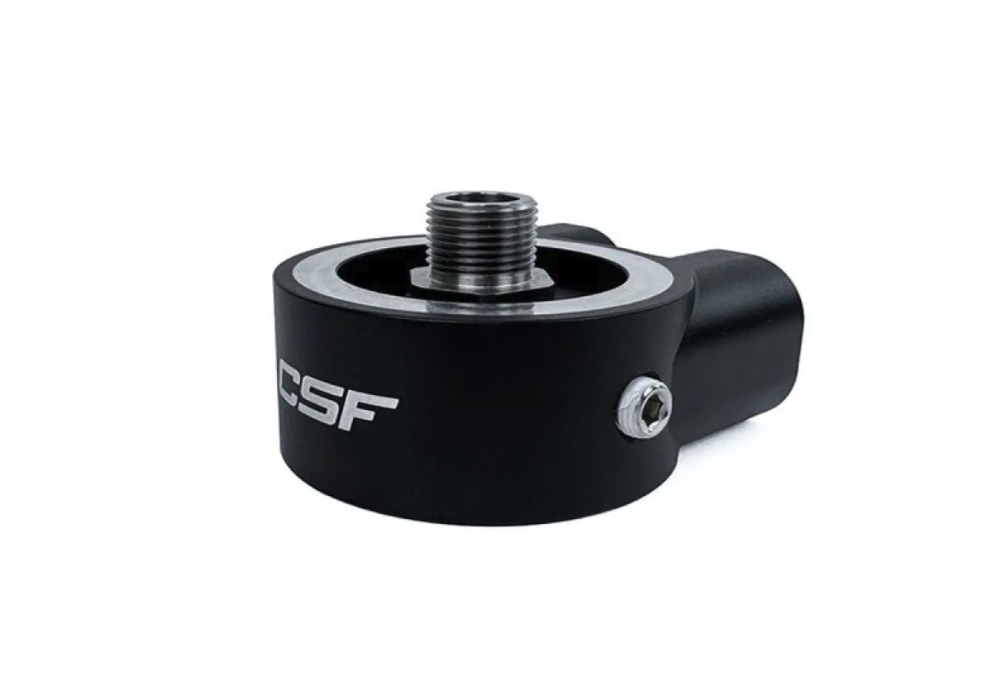

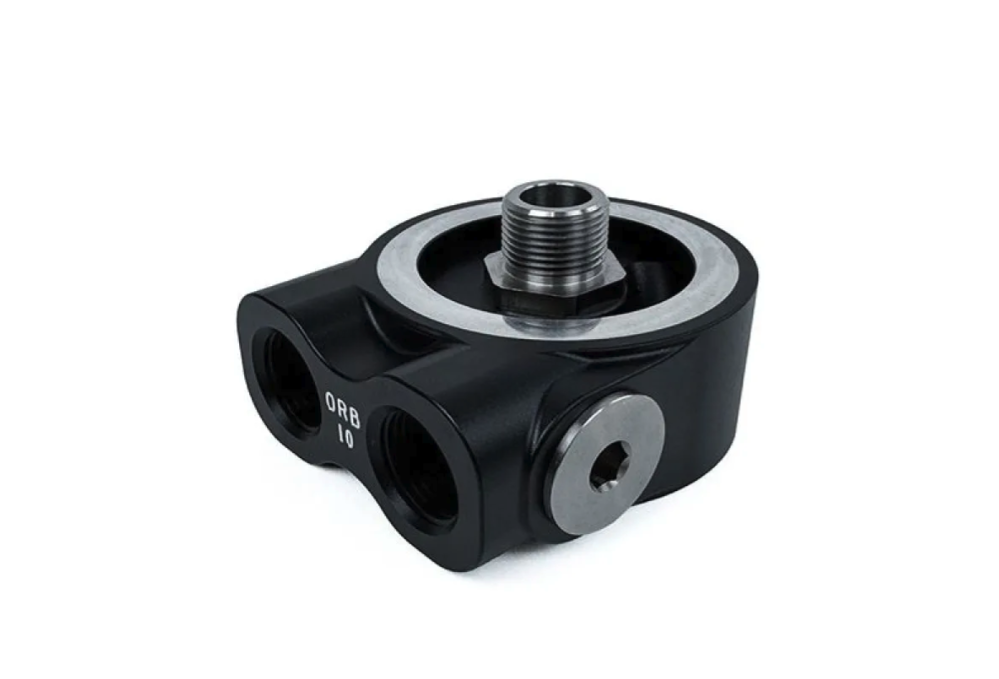

• CNC Billet Machined Sandwich Plate with 175-195°F (80-90°C) Thermostat and 1/8 NPT port aftermarket oil temp sensor

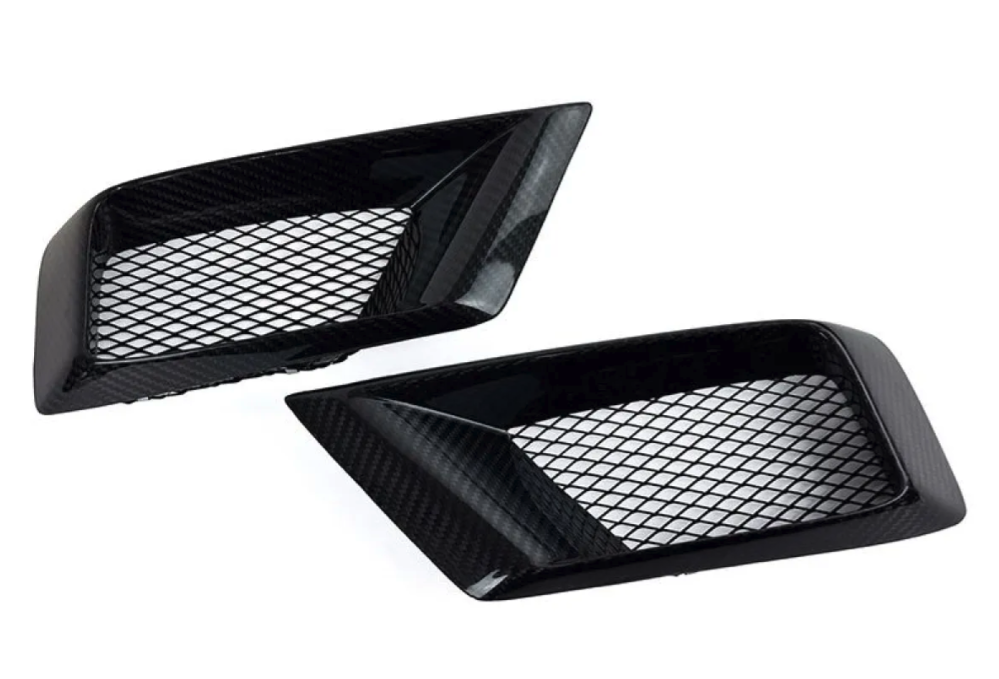

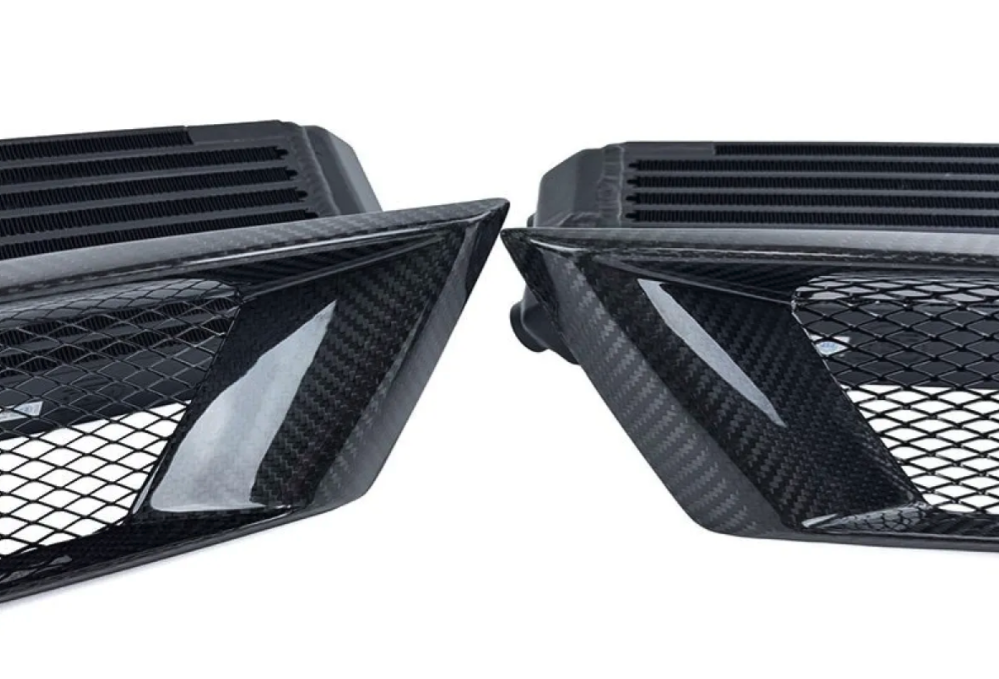

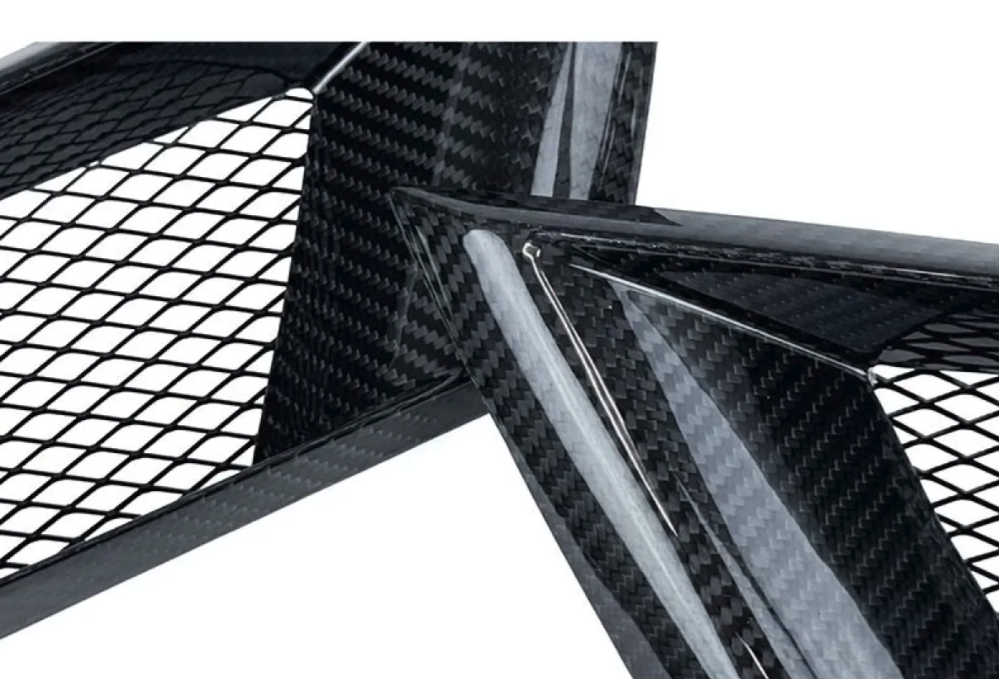

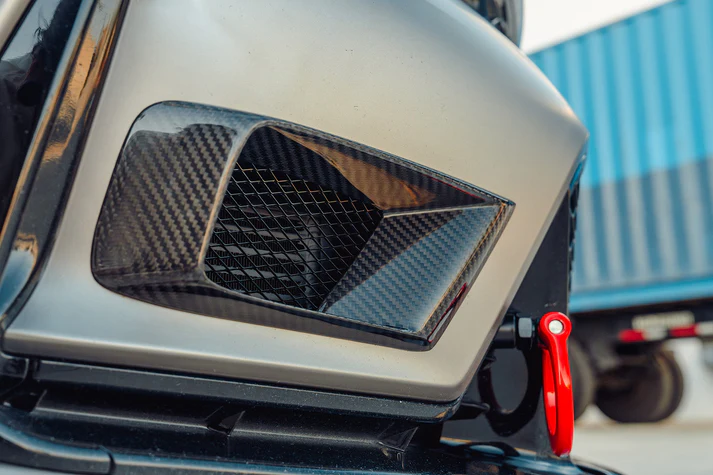

• Pre-Preg Carbon Fiber Bumper Vents for maximum airflow and cooling effect

• Laser Cut Louvered fender liner vents to improve the air flow path and promote heat extraction

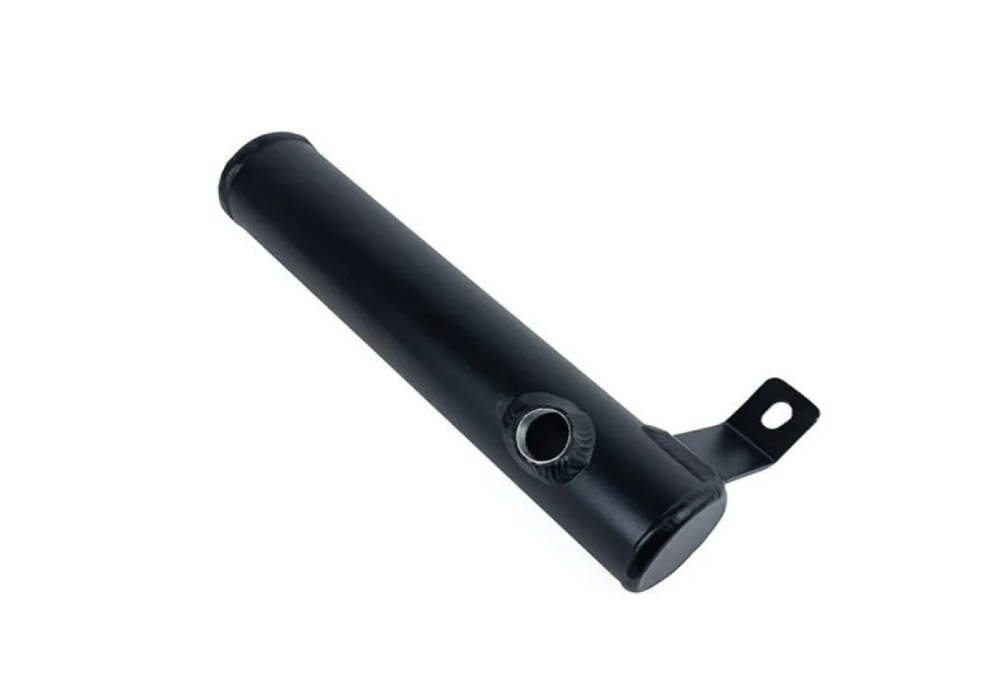

• Replacement Washer Fluid Bottle compatible with factory washer motor

• Includes all Brackets and Hardware

• Includes installation instructions and templates

• 2-Year Limited Warranty
