Part Number: SUS MP21S2

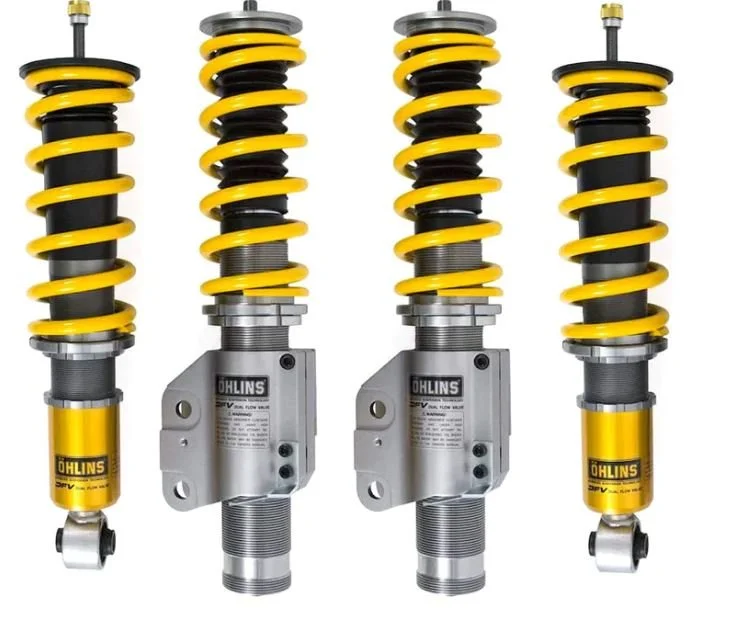

Description: Road & Track Coilover System

Fitment: 22+ Toyota GR86 / 22+ Subaru BRZ

Notes: Does not includes Front Camber Plate & Rear Hats

Details:

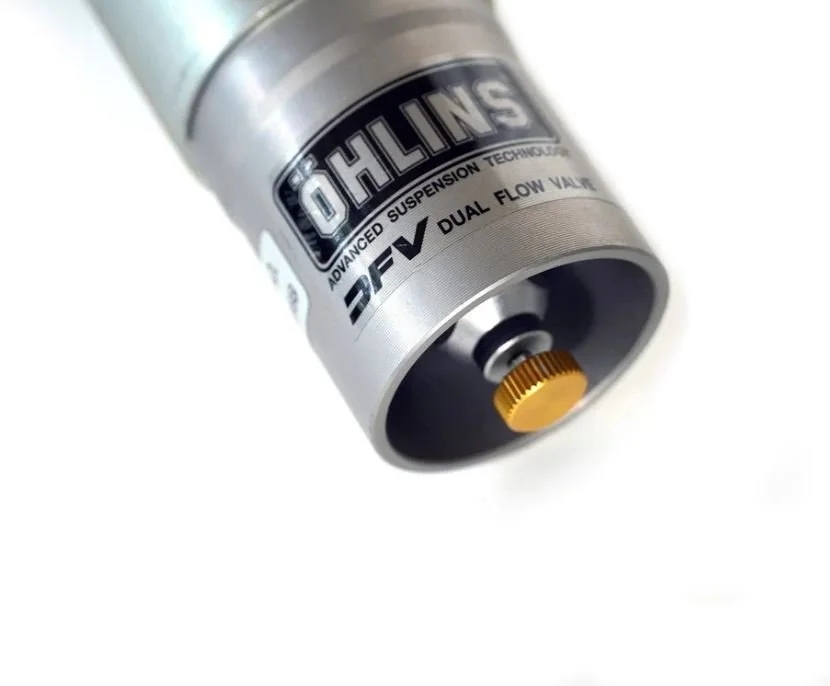

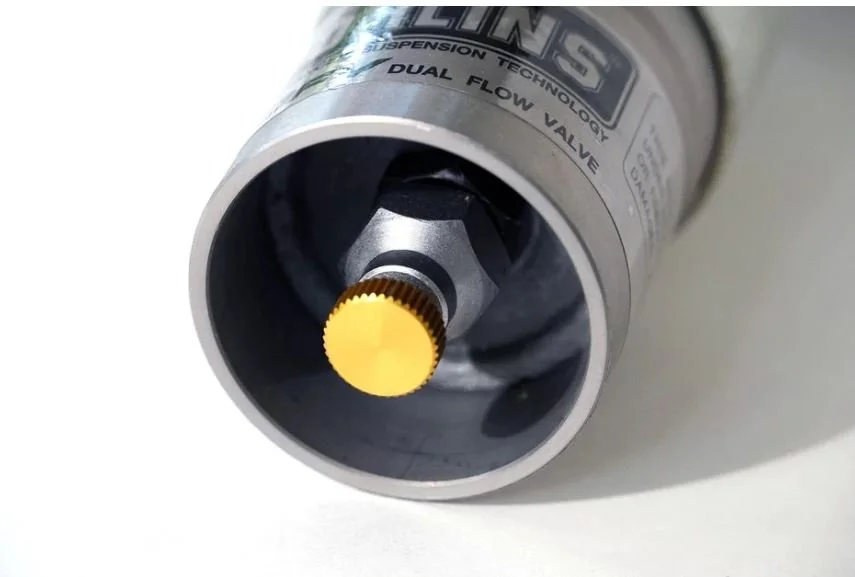

The Ohlins Road & Track coilovers give your vehicle a true racing experience without losing comfort when commuting to work. Our unique Dual Flow Valve (DFV) technology allows you to quickly change the stiffness of the shock absorber. When arriving to the racetrack, just turn the golden knob clockwise on the damper to set it in race mode this action changes all four areas in the damper; low and high speed compression and rebound damping.

With Ohlins Road & Track Toyota GR86 coilovers you will experience blistering response times, improved bump absorption and a massive amount of grip to increase the safety when driving your car on the limit. The car will be easier to balance on the edge of what the tires can handle before losing grip. You will be much quicker on track. The DFV suspension prevents you from losing the racing line when hitting bumps or curbs. The DFV components within react quickly and keeps you in control of the car and in contact with the track. When driving to and from the track, just set the dampers in road mode for a more relaxed and comfortable drive, still with more grip and quicker response time than ever before.

Features

• Ride-height adjustable

• Matched compression and rebound hydrodynamics

• Consistent high-tolerance reliability

• Fully rebuildable

• Includes all hardware and instructions for installation

• DFV technology (Dual Flow Valve)

• Corrosion salt spray tested (ISO 9227)

• 2 year limited warranty

• Includes springs

Front Features

• McPherson strut, upside down

• Compression and rebound damping with one adjuster

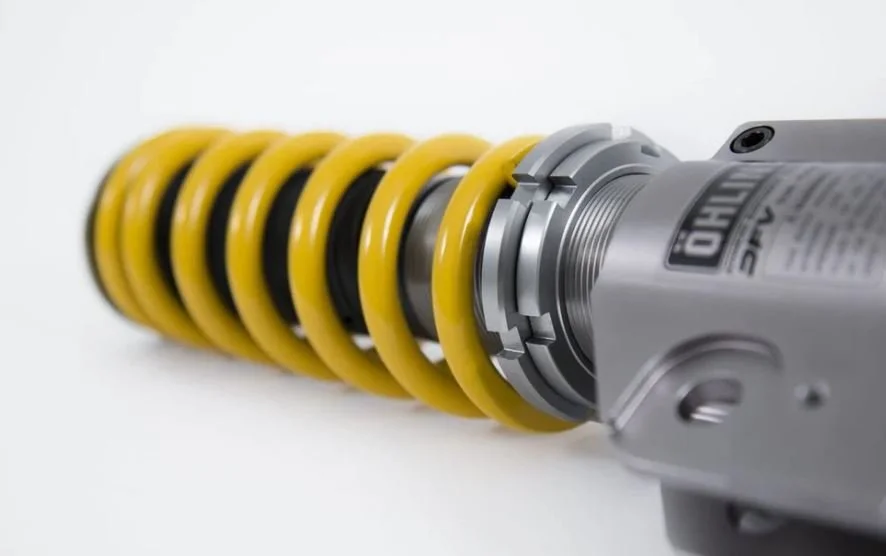

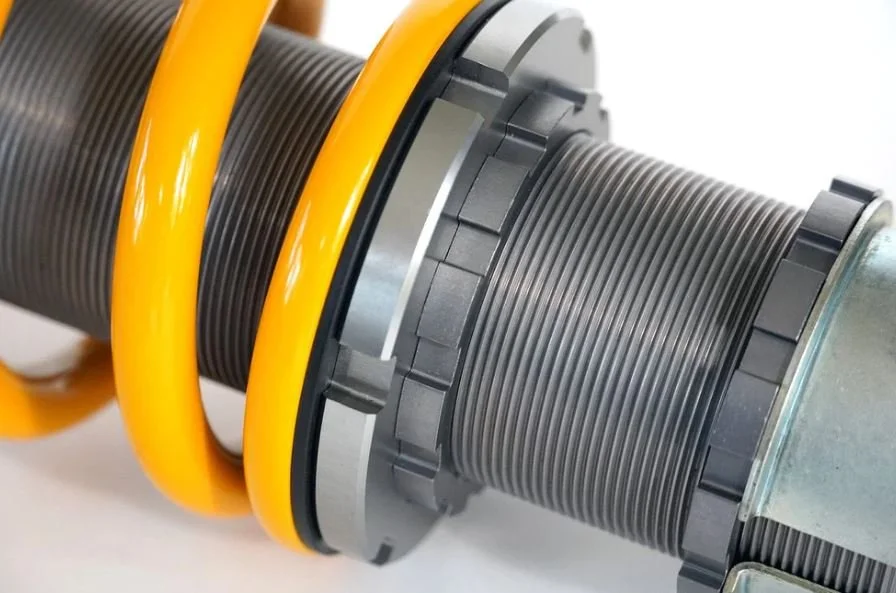

• Spring preload adjuster

• Approx. 10 - 35 mm lower than standard

• Spring rate 60 N/mm

• Dust covers

• Use with original top mounts

Rear Features

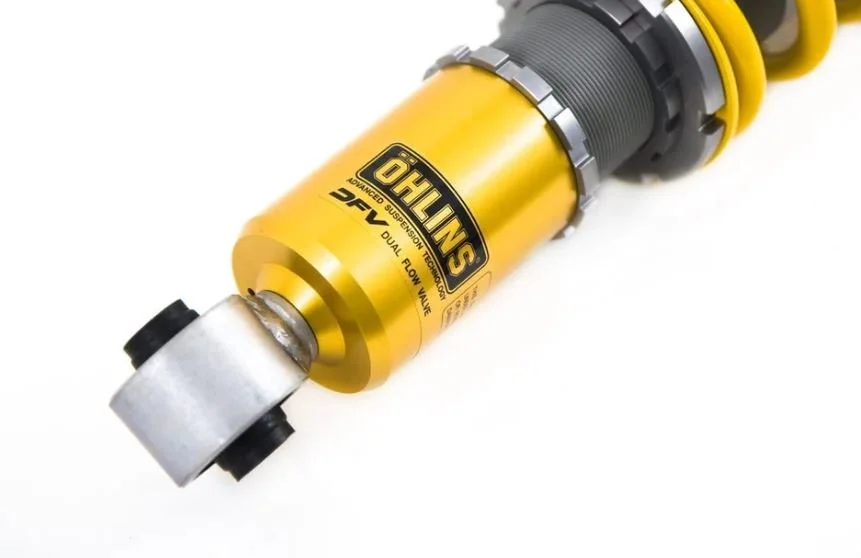

• Conventional Shock Absorber

• Compression and rebound damping with one adjuster

• Spring preload adjuster

• Approx. 5 - 25 mm lower than standard

• Spring rate 60 N/mm

• Dust covers

• Use with original top mounts

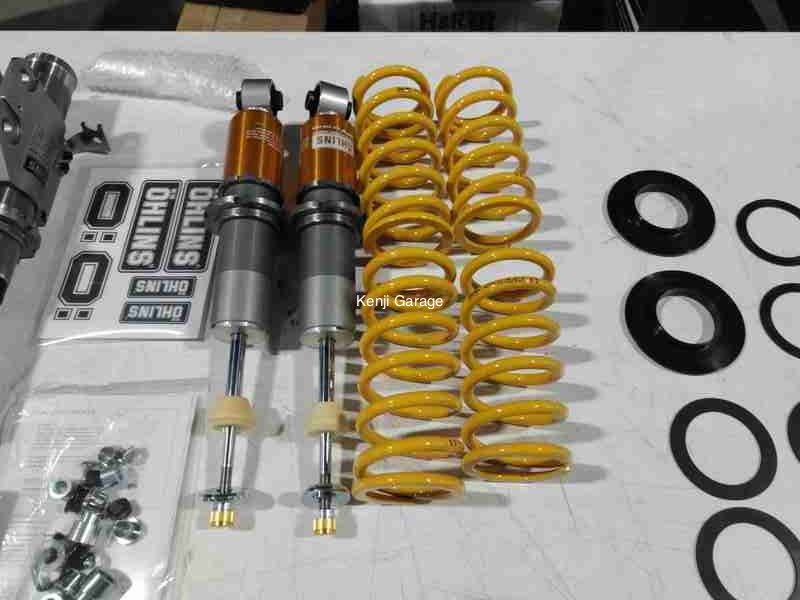

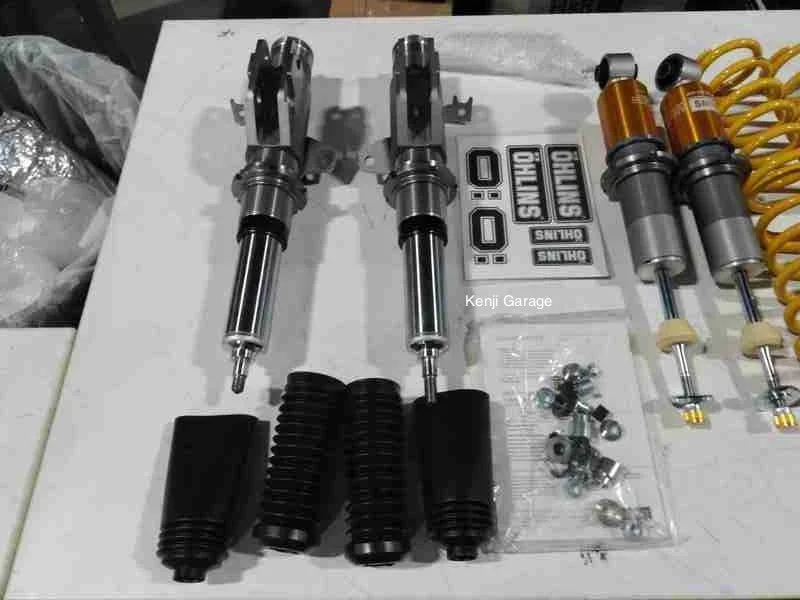

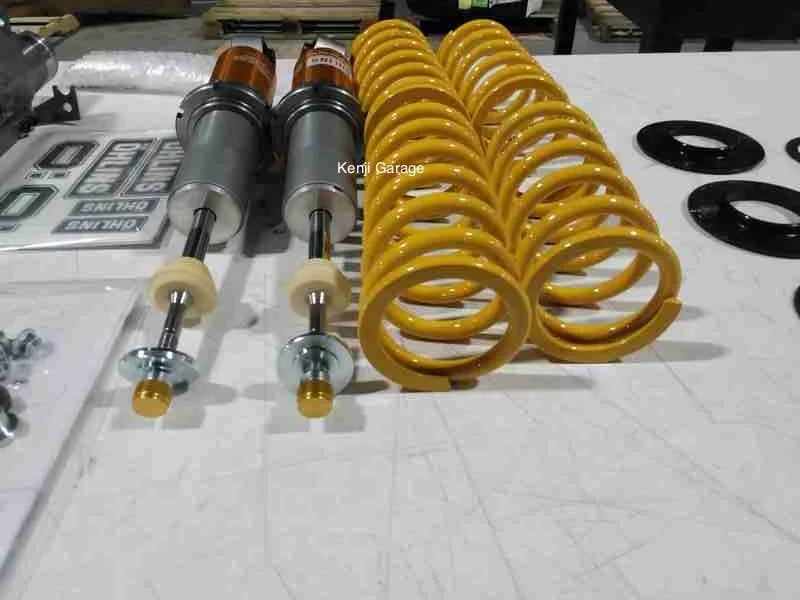

Kit Includes

•  Coilover kit includes springs

• C-Spanner (for spring preload adjustment)

• Owners manual and mounting instructions

• Sticker set

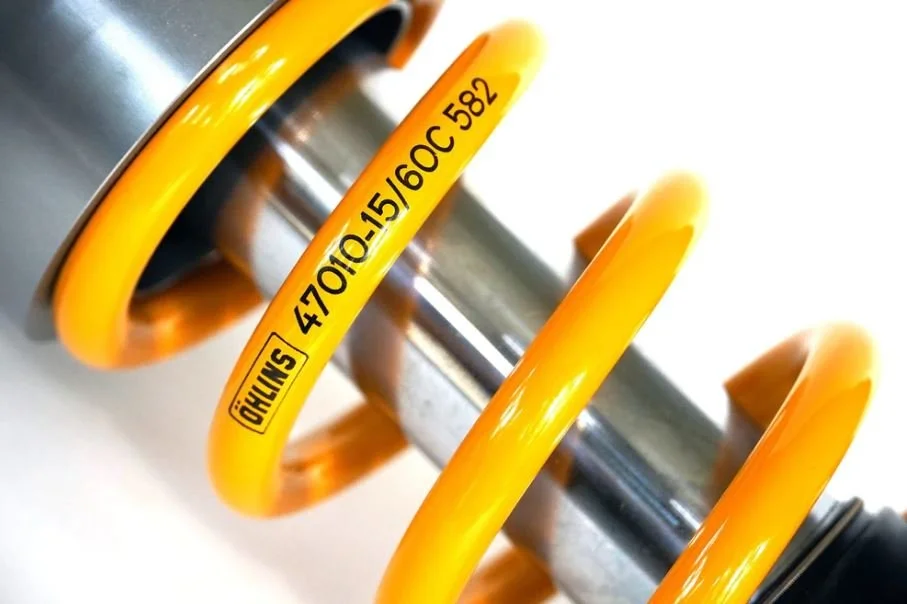

Spring Rates

• Front: 60 N/mm // 343 lbs/in. // 6 kg/mm

• Rear: 60 N/mm // 343 lbs/in. // 6 kg/mm
