Part Number: 86CUP-AT002

Description: HKS Cup Hipermax R Full Kit

Spring Rates: Front 8kg / Rear 10kg

Fitment: 22+ Subaru BRZ / 22+ Toyota GR86

Details:

• This is a designated professional series product developed for the TOYOTA GAZOO Racing GR86/BRZ Cup.

• For the 2025 season, the damping force, bumper rubber, and front outer fastening structure have been revised.

• Development driver Nobuteru Taniguchi was invited to help fine-tune the product.

• Compared to the 2023 model, cornering and acceleration/deceleration feedback have been enhanced, improving both understeer and traction performance.

• The front and rear bumper rubbers are now shorter to minimize posture disturbance when driving over curbs.

• A full-length adjustable front stabilizer link is included and should be used in combination with the height-adjustable suspension.

• This product is registered under ASEA standards, with T.R.A. Approval Number T.R.A. 250220-213.

• The settings are optimized for circuit driving, so please exercise caution when driving on public roads.

• While this product can be overhauled, specification change services are not available.

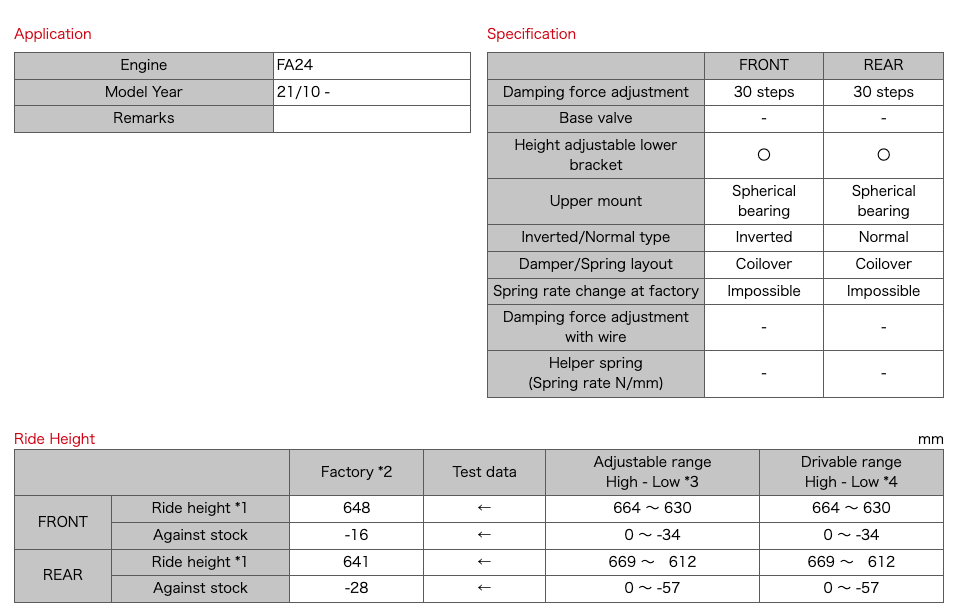

1. Height from road surface to fender arch.
2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.
