Part Number: 53004-AT026

Description: HKS 22+ Subaru BRZ / 22+ Toyota GR86 Body Kit Type-S Rear Wing

Fitment: 22+ Subaru BRZ / 22+ Toyota GR86

Details:

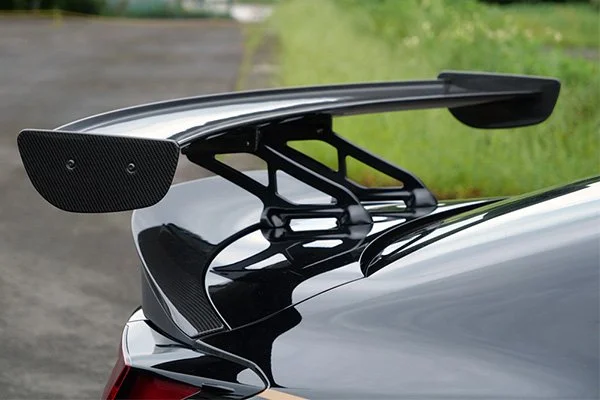

Rear Wing

• Main wings and wingtip plates are made of light-weighted CFRP. Designed aluminum struts are painted with matte black.

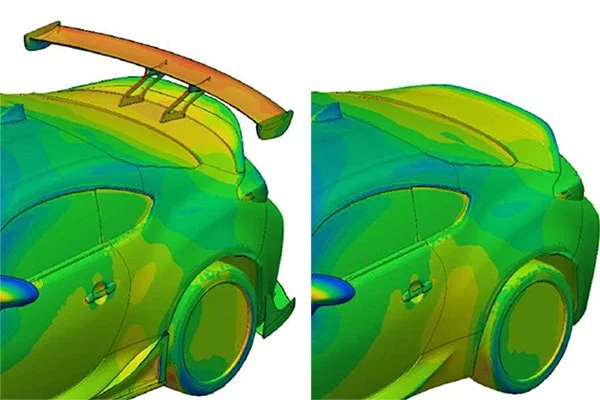

• The wing cross section and gurney flap shape is designed with fluid analysis to achieve low drag and strong downforce.

• With the designed reinforcement bracket for the strut, it prevents the damage of trunk panel from repeatedly enduring the downforce load (MAX Speed：210km/h).

• Test with the rear wing and aero kit shows the kit reduces the understeer and provides stability while cornering, suppressing the fluttering during full braking in the meantime, and improves the tire traction. The driver can entirely experience all the improvements on driving stability.

Test run at Fuji Speedway (home straight section).

Blue line (front): lift reduction
Red line (rear): downforce enhancement

• The vertical axes 0 is the tire load applied when the car is stopped.)

• Solid line: HKS Dotted line: Normal

• 4TH - 5TH GEAR WOT
