17-21 Honda Civic Type R Forced Induction

HPS Intercooler Charge Pipe Kit 17-21 Honda Civic Type R

$385.00

Part Number: 17-133

Description: HPS Intercooler Charge Pipe Kit

Details:

Shipping restriction: This item cannot be shipped to the state of California, New York and Maine.

Features and Benefits

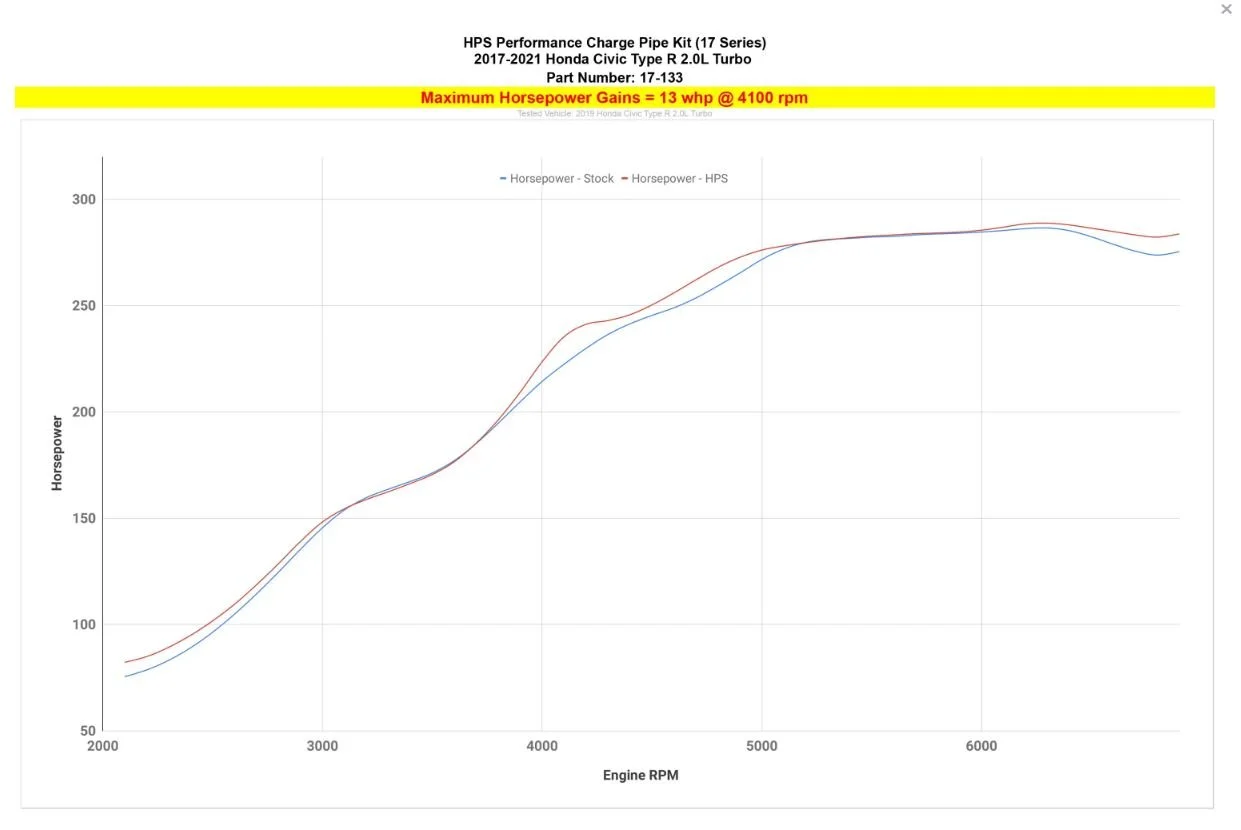

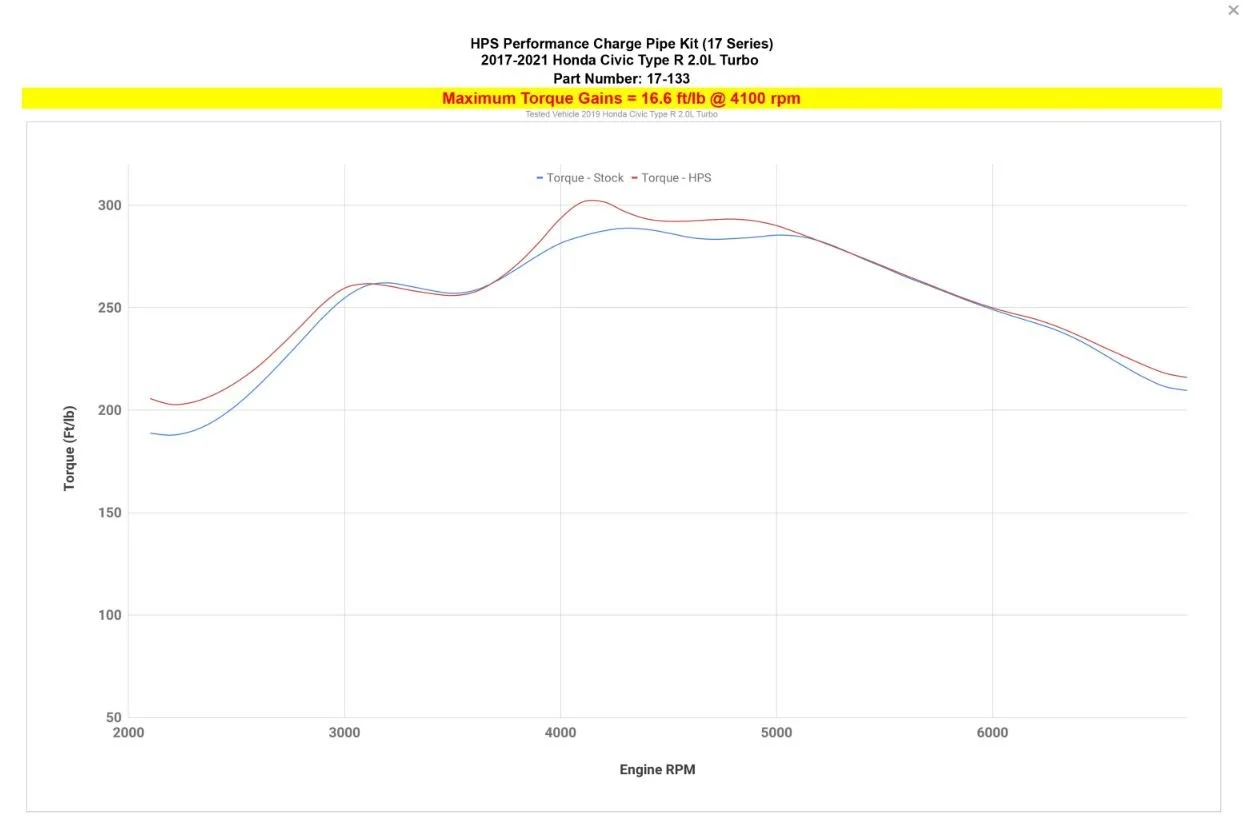

- Increase horsepower +13 Whp , torque +16.6 Ft/lbs. Boost up performance gains without re-tuning the ECU.
- Replaces and upgrades your stock intercooler piping with high flow aluminum tubing.
- 2.5" cold side and 2.25" hot side mandrel-bent aluminum tubing for optimized air flow.
- Minimize the risk of boost leaks while providing better throttle response and acceleration.
- The bead rolled pipe ends prevent couplers from popping off under boost.
- Easy to install with simple hand tools. No modification is required during the installation
- Replaces OEM part numbers 17282-5BF-A01, 17292-5BF-A01, 17294-5BF-A00, 17295-RPY-G01.
- Essential performance upgrade for Honda Civic Type R FK8 2.0L Turbo

Vehicle Application
2021 Honda Civic 2.0L Turbo (Type R, Type R Limited Edition)
2020 Honda Civic 2.0L Turbo (Type R)
2019 Honda Civic 2.0L Turbo (Type R)
2018 Honda Civic 2.0L Turbo (Type R)
2017 Honda Civic 2.0L Turbo (Type R)

Why HPS Performance?

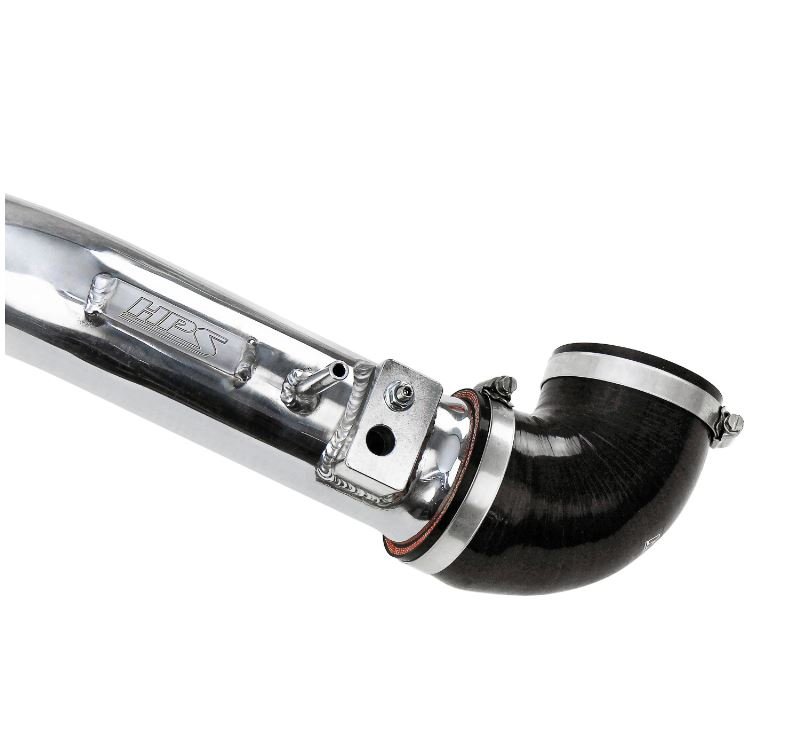

The HPS Performance Charge Pipe Kit, part number 17-133, is a high-quality aftermarket upgrade designed specifically for the Civic Type R FK8. This kit is engineered to replace the factory charge pipe system, providing significant performance improvements for your vehicle. With a larger 2.5-inch diameter on the cold side and a 2.25-inch diameter on the hot side, the enhanced airflow and reduced restriction increases the engine output by 13 horsepower and 16.6 lb-ft of torque, resulting in improved throttle response, acceleration, and overall engine performance. Constructed with durability in mind, the HPS Performance Charge Pipe Kit is made from 6061 mandrel-bent aluminum to withstand high temperatures and pressure levels, delivering long-lasting performance and resistance to cracking or leaking even under the most demanding driving conditions. To facilitate the installation of sensors and other accessories, a 1/8" NPT bung is included into the design of the upper cold-side charge pipe.

In addition to the enhanced performance, the HPS Performance Charge Pipe Kit for Honda Civic FK8 also offers improved reliability. The included 4-ply reinforced oil resistant silicone couplers and embossed stainless steel hose clamps ensure a secure and leak-free connection. These couplers are designed to handle high boost pressures, resist degradation from oil, and provide excellent heat resistance while the stainless steel hose clamps offer a tight fit that prevents slipping or loosening. This kit is designed to be a direct bolt-on replacement, making installation straightforward and hassle-free. All the necessary hardware and components are included, ensuring a proper and secure fit. With its larger diameter charge pipes, durable construction, and included oil resistant silicone couplers and stainless steel hose clamps, this kit offers improved throttle response, increased horsepower, and a more exhilarating drive with the HPS Performance Charge Pipe Kit installed in your Civic Type R.

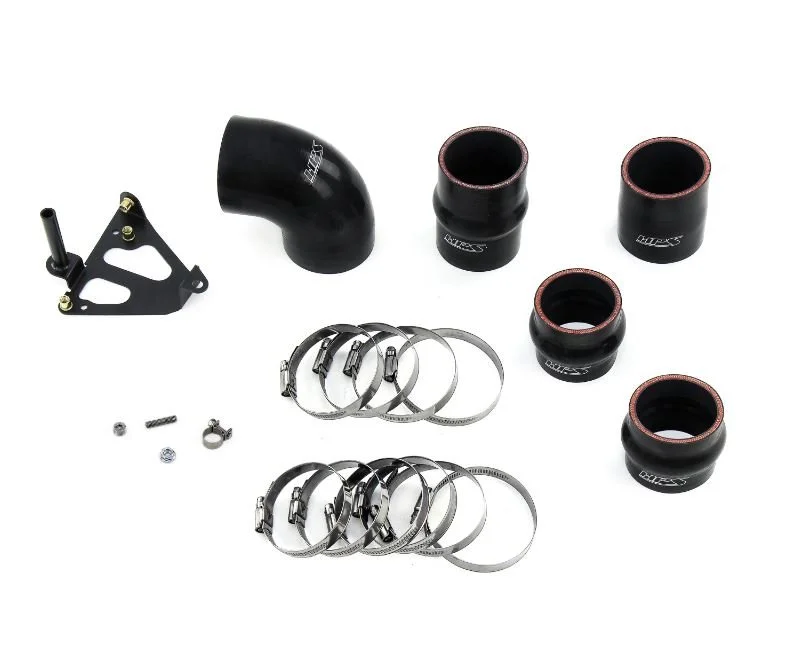

Included in the kit
- Aircraft grade aluminum tubing
- HPS Performance 100% Stainless Steel T-Bolt Clamps
- HPS Performance High Temperature Reinforced Silicone Hoses with Oil-Resistant Layer
- Mounting hardware
- Installation Instruction

Additional Information
- Warranty: 2 Years
- Street Legal In All US States: No
- California Restricted: Not legal for sale or use in California
- TUV Approved (Europe): No
- Weight: 6 lbs
- Shipping Box Dimension: 16 inch x 10 inch x 5 inch
