Part Number: ​PRL.1098.1.TI-TH

Description: Black Thermal Coated Turbocharger Inlet Pipe Kit

Details:

​Building on the success of our existing Civic 1.5T Turbocharger Inlet Pipe Kit, this new version incorporates a Black Thermal Coated finish utilizing Techline Polyphen Thermal Dispersant technology. The coating is designed to rapidly disperse heat across the surface of the inlet pipe, helping promote more consistent temperatures while providing a premium OEM+ appearance. The kit retains the same airflow-focused design that has made it one of the most popular upgrades for the L15B7 platform.

Quick Specs

• Techline Polyphen Thermal Dispersant Black Thermal Coating
• Cast aluminum turbo inlet section with gasket-matched 50mm compressor inlet transition
• 76.2mm OD / 74mm ID titanium crossover pipe
• Compressor outlet increased from 38mm to 45mm
• Multi-piece design for optimized fitment and installation
• Compatible with all factory-fitment turbochargers
• No ECU calibration required

Fitment

• 2016-2021 Honda Civic 1.5T
• 2017-2022 Honda CR-V 1.5T (requires OEM Civic inlet bracket PN: 17288-5K8-000)
• Compatible with Si, 6MT, CVT, RHD, and international applications

​Kit Includes

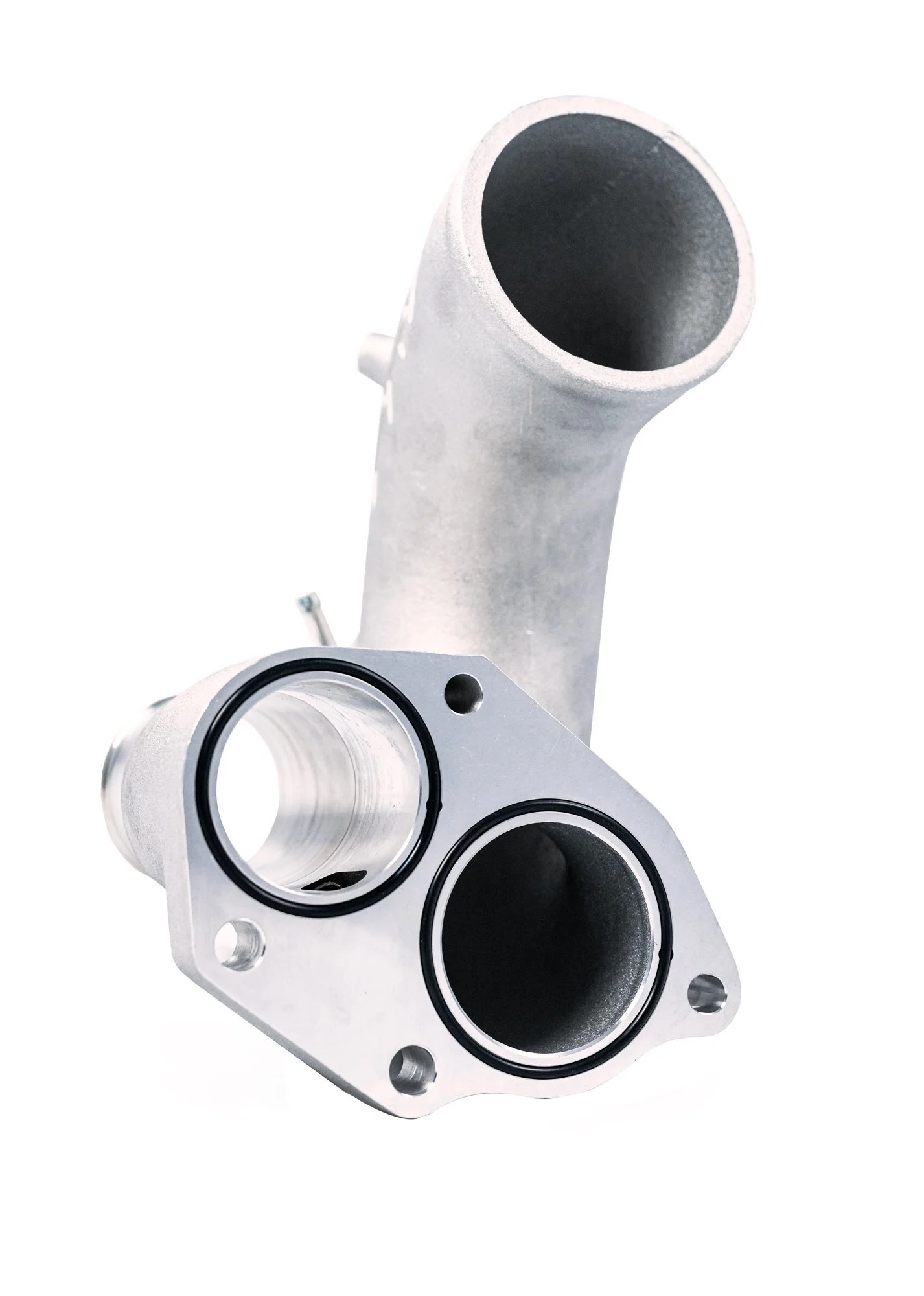

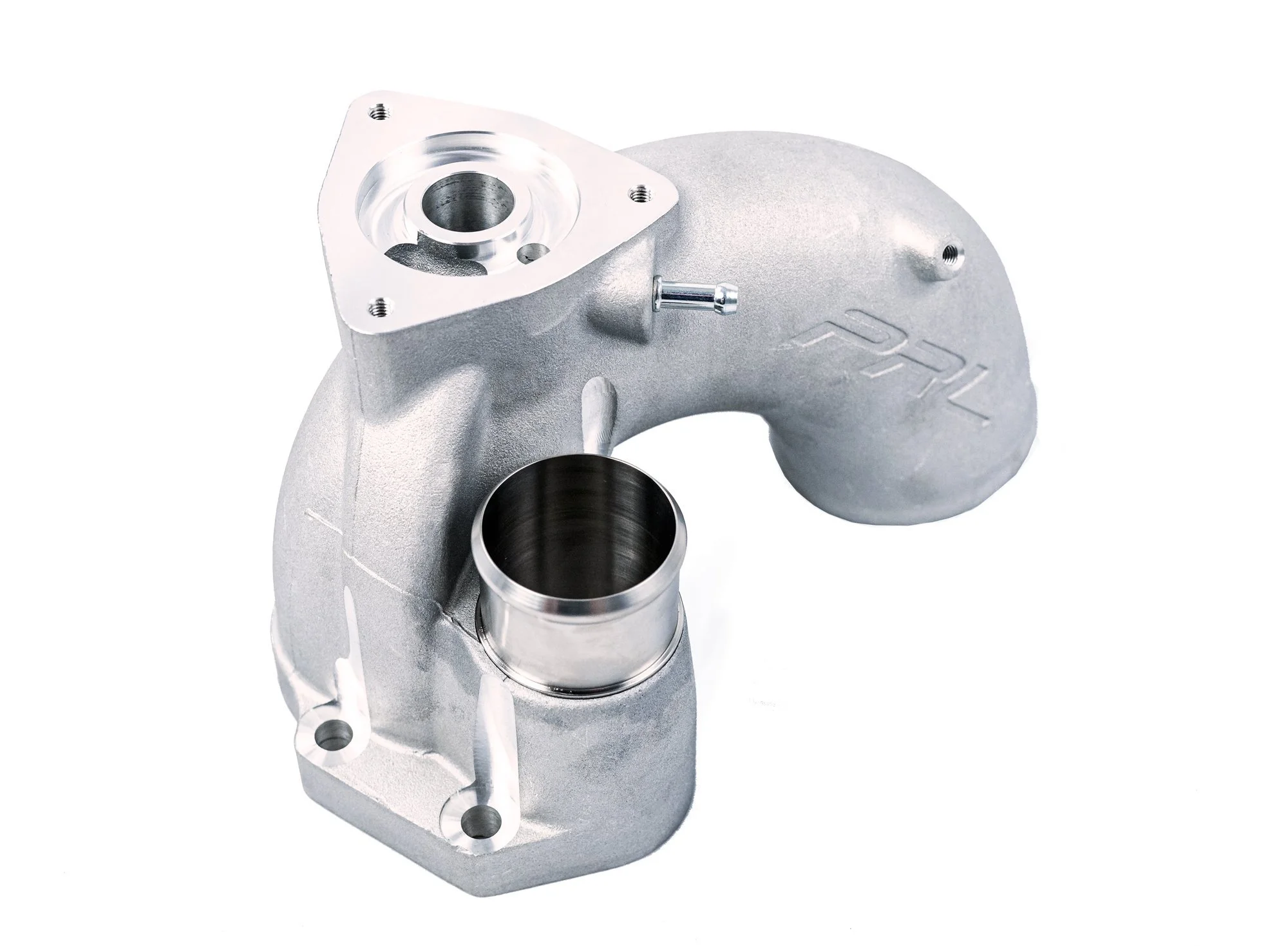

• Cast Aluminum Inlet Piece

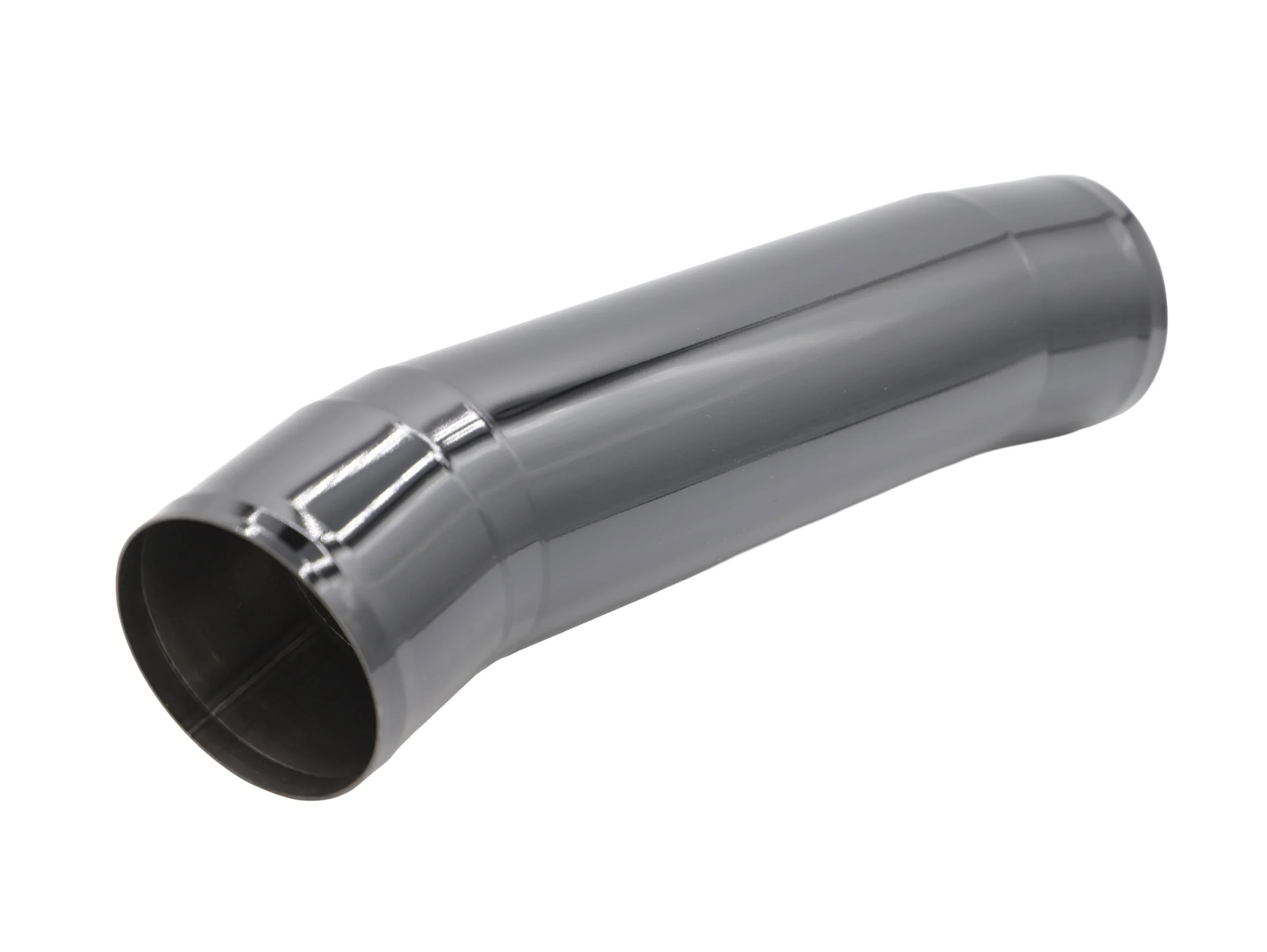

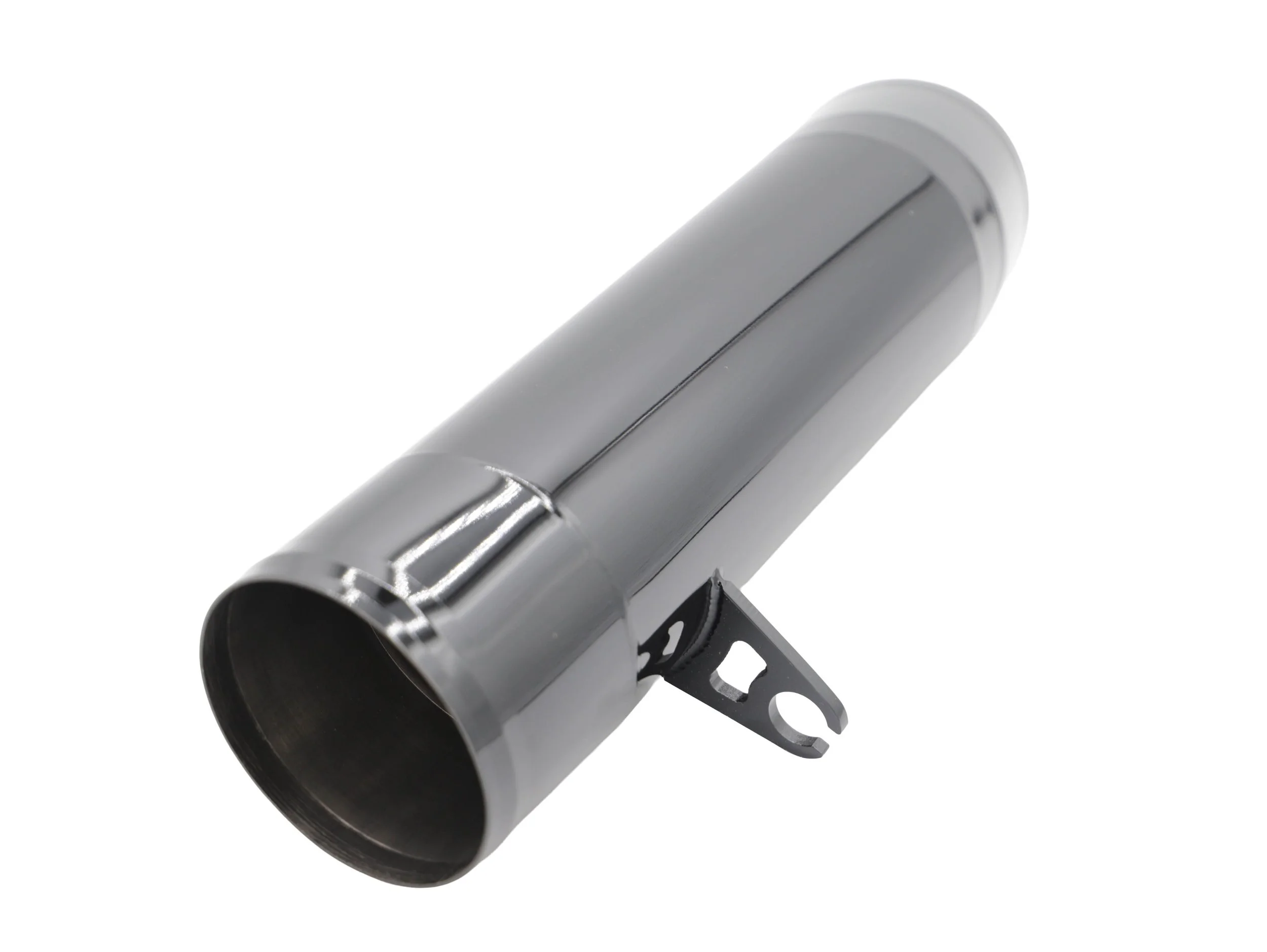

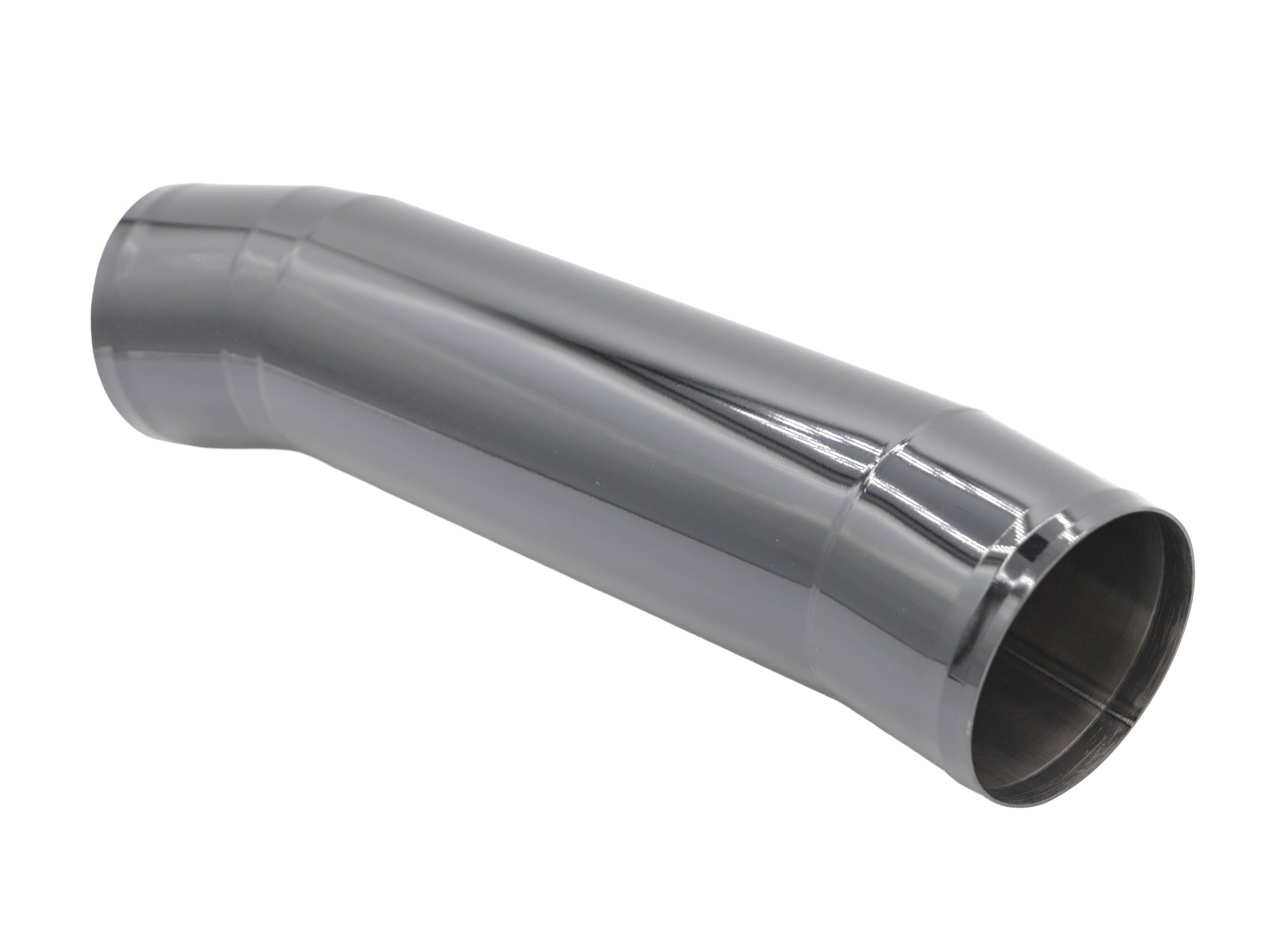

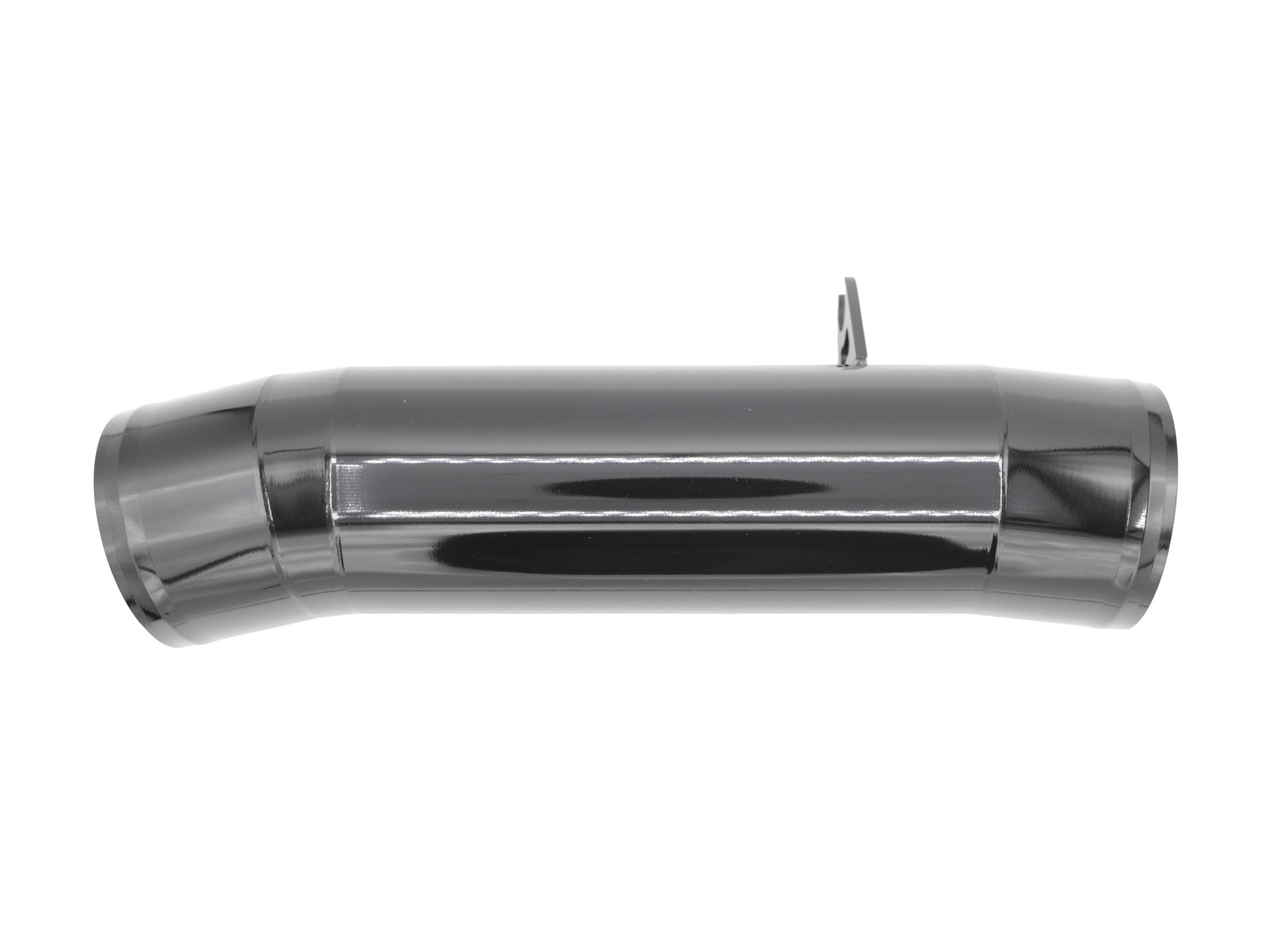

• Black Thermal Coated Titanium Inlet Pipe

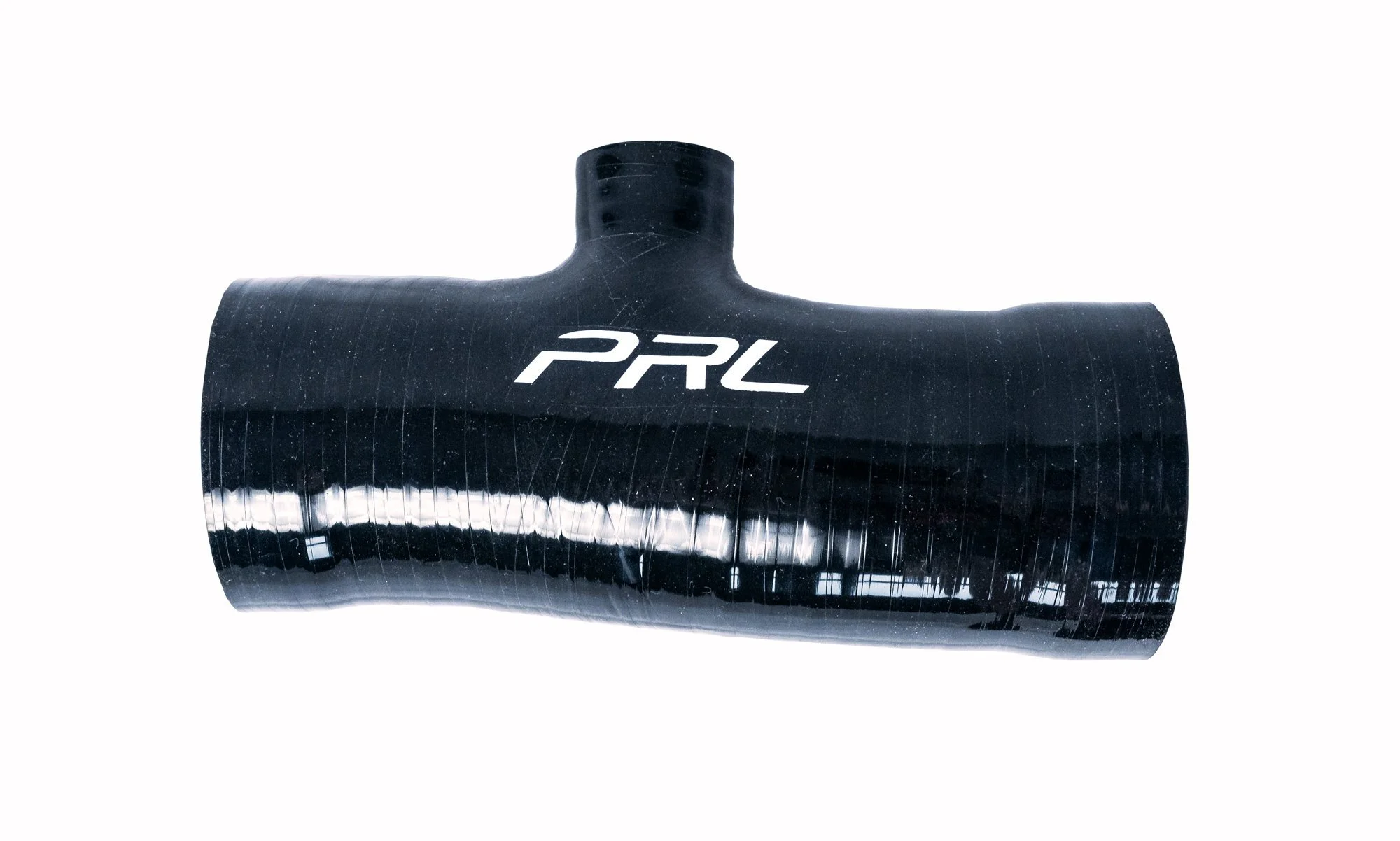

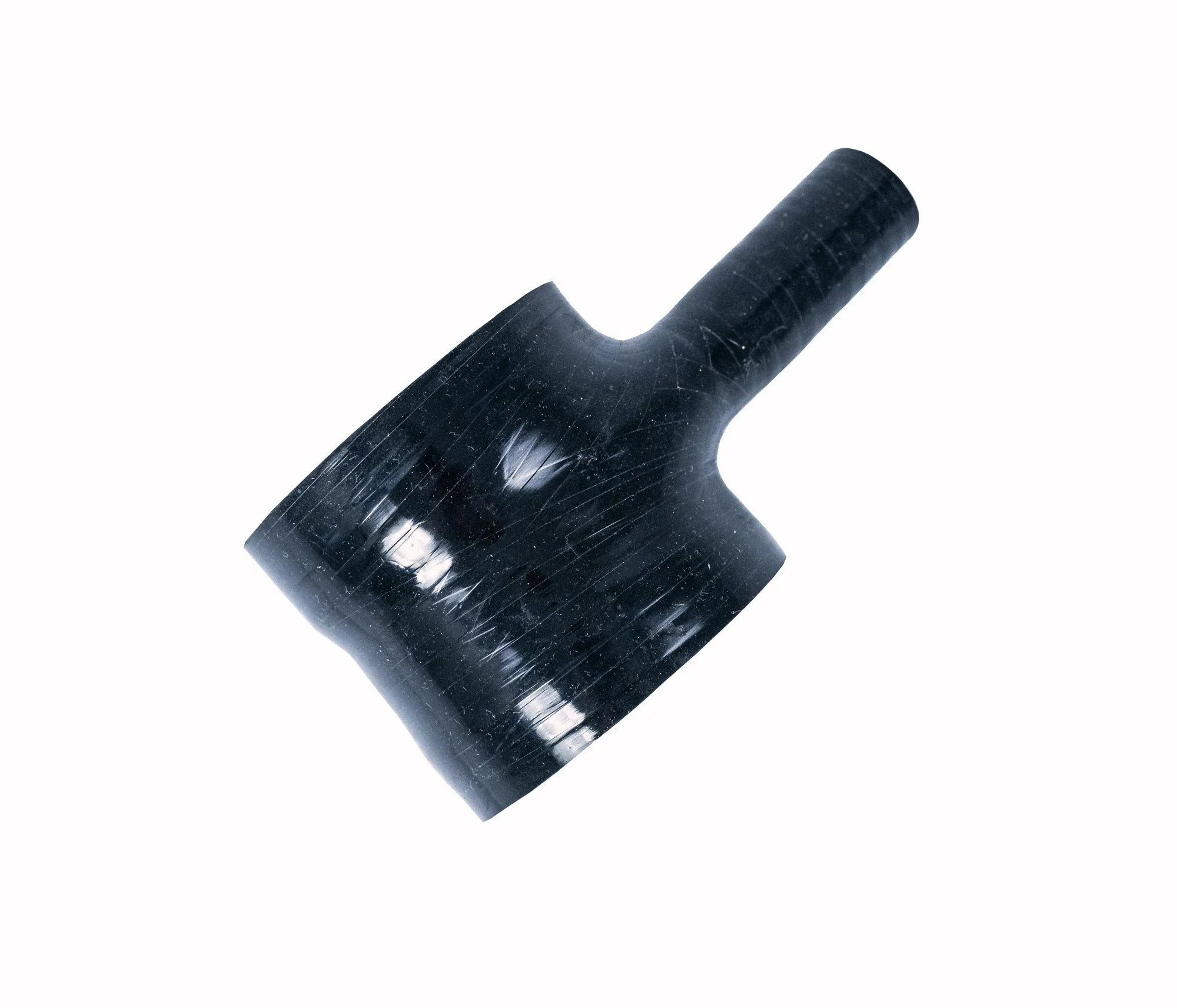

• (2) High-Temp 4-Ply Silicone Couplers

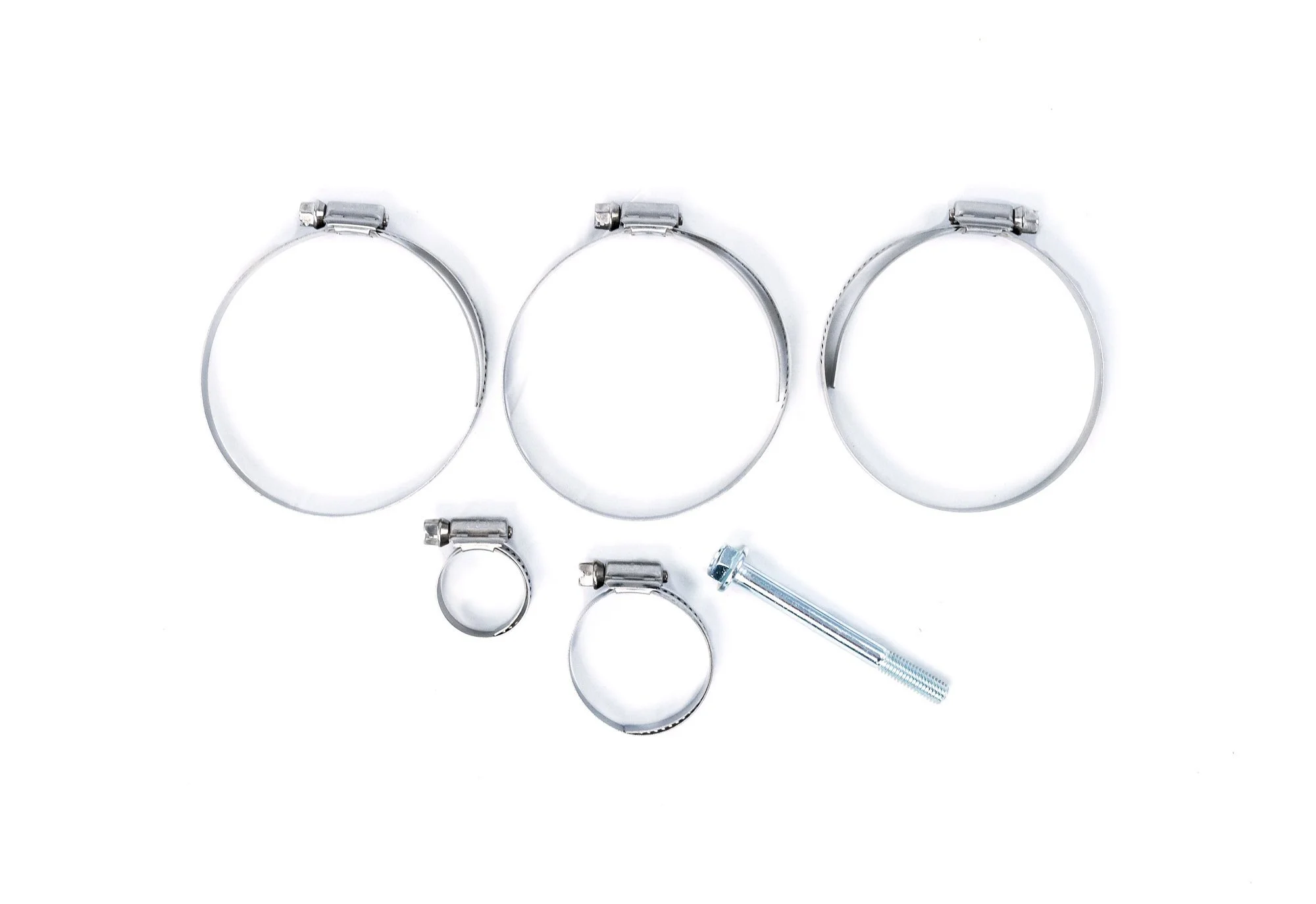

• (5) 304 Stainless Steel Interlocking Worm Clamps

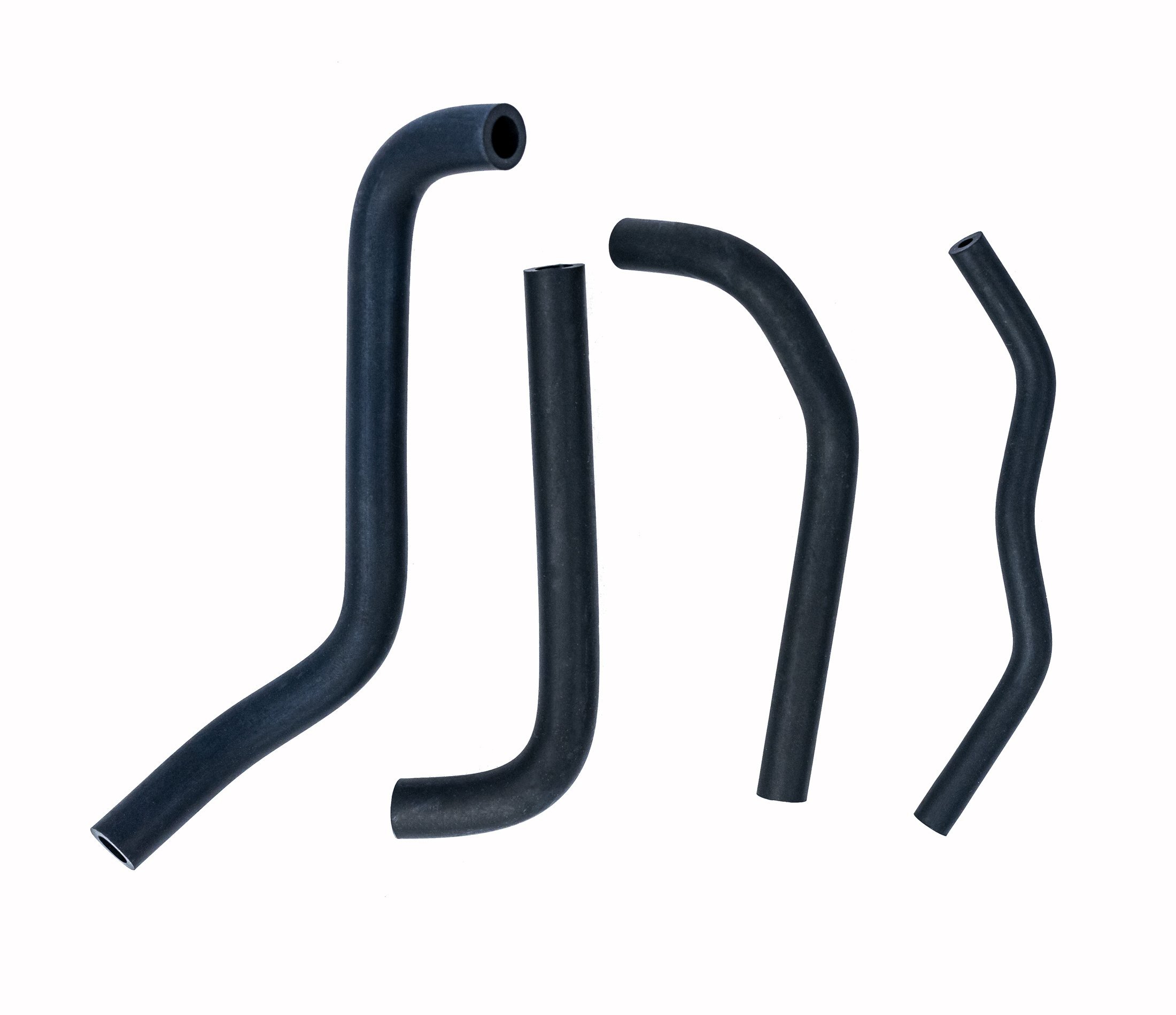

• (4) Vacuum Hoses

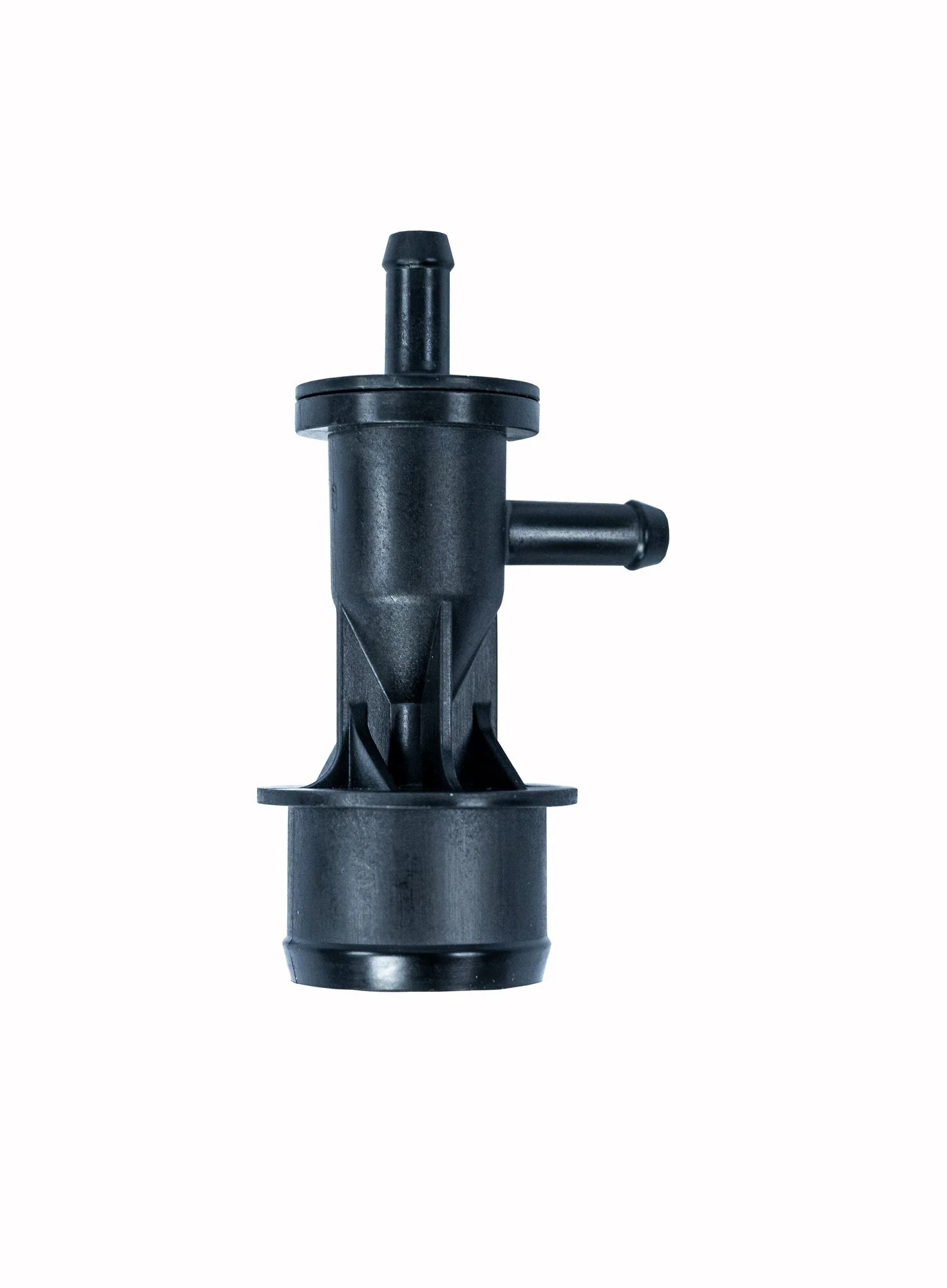

• Injection Molded Evap Purge Fitting
• (2) Buna O-Rings
• Mounting Hardware and Wiring Harness Tie-Down

Notes

• Only compatible with PRL Cobra Cold Air Intake and Short Ram Intake Systems
• Not compatible with the factory airbox
