15-21 WRX & STI Intake

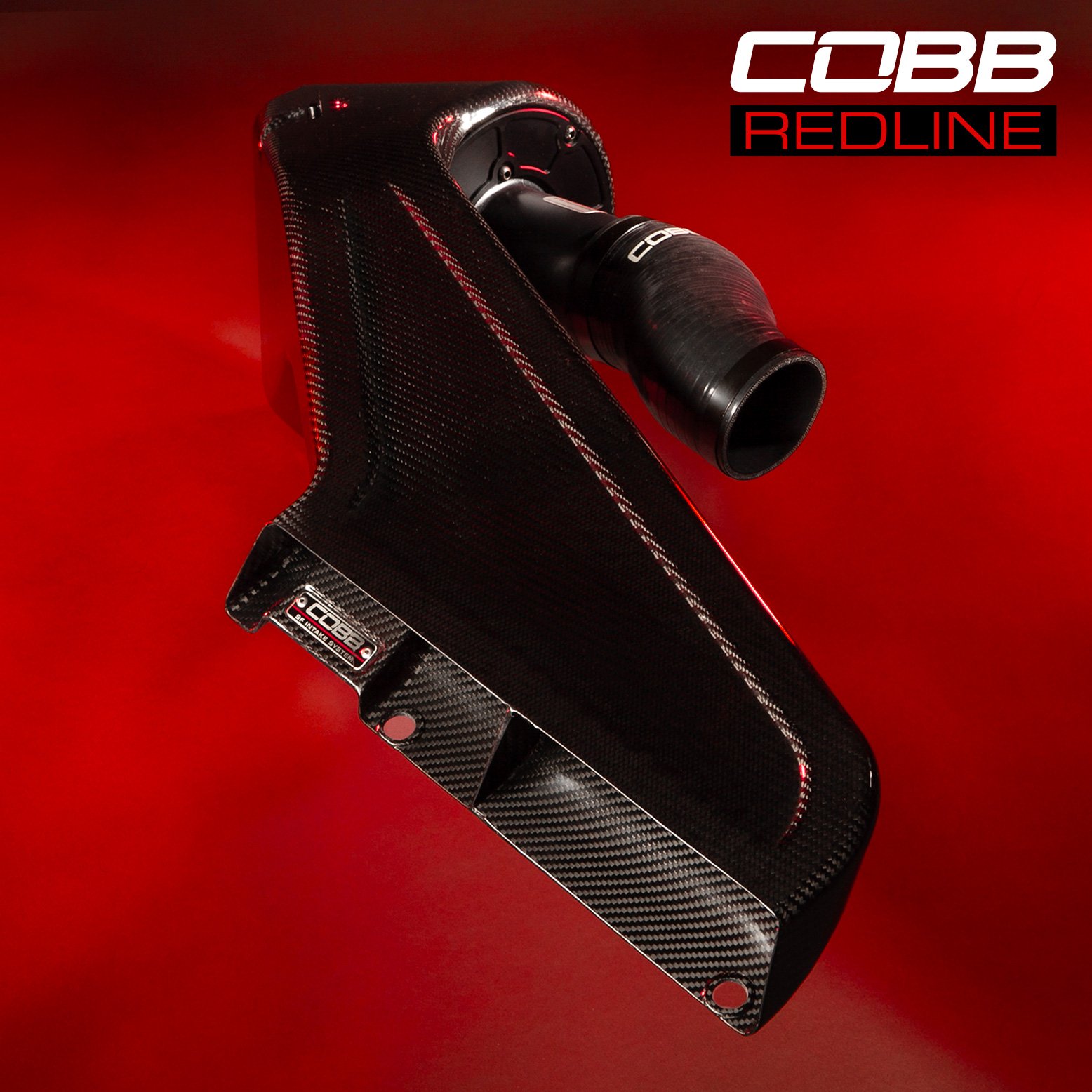

Cobb Redline Carbon Fiber Intake 15-21 Subaru STI

$775.00

Part Number: 725350

EMISSIONS

This part is legal under the provisions of EPA’s Anti-Tampering Policy. COBB Tuning has established a reasonable basis (testing results) to verify that this product allows the vehicle to operate within legal emissions standards and is therefore legal to be sold for on-street use in all states that accept the legal provisions of the Clean Air Act and EPA’s Anti-Tampering Policy.

NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY EMISSION CONTROLLED MOTOR VEHICLE.

Testing with the California Air Resources Board, in order to achieve 50-state compliance, is pending. Once testing is complete with California, and an EO number is issued, this product will be updated to 50-state legal status.

DESCRIPTION

The Redline Carbon Fiber Intake seamlessly blends performance and aesthetics to bring the ultimate intake for your 2015-2021 WRX STI. Constructed of 2x2 twill carbon fiber and finished in a high quality gloss clear coat, the intake system's presence in your engine bay does not go unnoticed.

Construction

The main airbox is constructed of multiple layers of 2x2 twill carbon fiber sheets for a true carbon intake through and through. High quality gloss clear finish provides fade resistance from heat and UV light. A bespoke black Redline badge sits at the front of the integrated intake ducting. Air is filtered through a 35% larger (when compared to the standard SF Intake) pre-oiled filter and routed to the MAF housing which is bolted to the airbox by way of a black anodized billet aluminum adapter. The wire-reinforced black silicone coupler is sealed on either end with black anodized clamps for a very sleek install. A second billet plate can be removed from the fender side of the airbox to increase airflow and audible intake sounds of the system.

Velocity Stack MAF Housing

This intake system utilizes several unique features in an effort to maintain optimal flow for performance while minimizing turbulence. A custom conical air-filter element, CFD-designed velocity stack and unique air flow straightener grid are designed to smooth the incoming air flow as it passes the Mass Air Flow sensor for precise readings. The one piece high temperature plastic composite design saves weight and reduces heat transfer.

Installation

Installation of the Redline Intake is as simple as it comes for intakes with an integrated airbox and scoop. Follow our detailed instructions to install the supplied brackets and the entire assembly can be dropped in within a few minutes. Serviceability of the intake air filter is also straight forward once the initial installation has been completed.

Calibration

The Redline Carbon Fiber intake is compatible with existing COBB Off The Shelf Maps that support the standard SF Intake. For 2015-2021 STIs, that includes Stage 1+SF and Stage 3 OTS Maps. For a complete list of maps for your car, head over to the Maps Section of our website.


Note: This will not fit with the COBB Radiator Shroud.

WHY?

We've re-set the bar for Subaru performance intakes. The Redline Carbon Fiber Intake is the premier intake system you've been looking for. Upgrade the restrictive factory intake with a high flowing and aesthetically pleasing intake system.

FEATURES

Subaru Redline Carbon Fiber Intake 2015-2021 STI

  • 2x2 Twill Carbon Fiber Weave

  • High Quality Gloss Finish

  • Bespoke COBB Redline Badging

  • Integrated Carbon Fiber Scoop

  • Carbon fiber parts are hand laid, slight imperfections or weave pattern variances can be expected.
