Part Number: XLIT170M

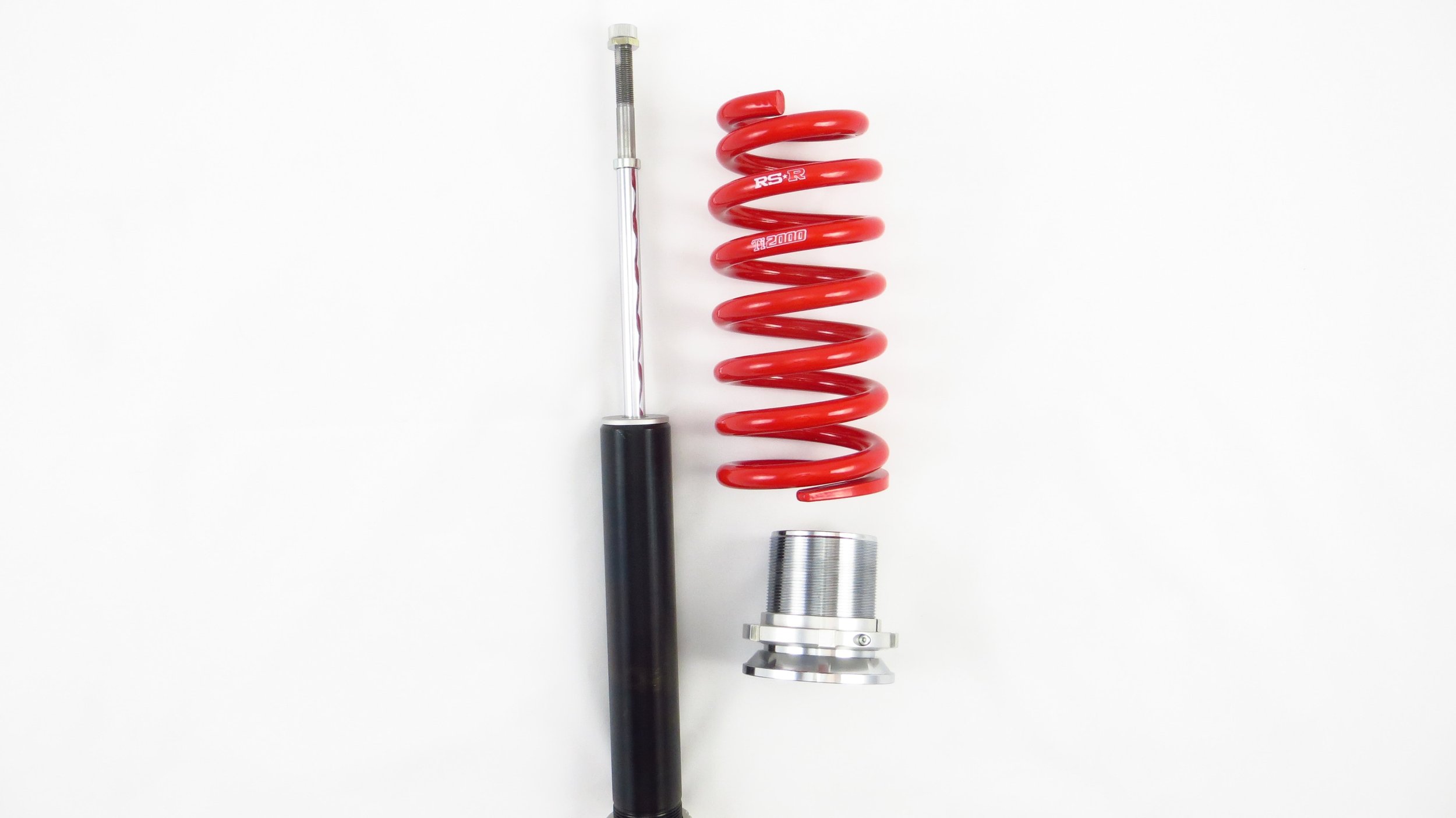

Description: Sports-I Coilovers

Fitment: 13-15 Lexus GS350 RWD / 18-20 GS300

Details:

Specifications for Non F-Sport:
Preset Approximate Height From RS-R:
Front -35mm to -40mm (-1.4inch to -1.6inch)
Rear -40mm to -45mm (-1.6inch to -1.8inch)

Maximum Adjustment Ranges:
Front +15mm to -95mm (+0.6inch to -3.8inch)
Rear -10mm to -75mm (-0.4inch to -3.0inch)

Recommended Adjustments for Optimal Ride-ability:
Front -10mm to -60mm (-0.4inch to -2.4inch)
Rear -10mm to -75mm (-0.4inch to -3.0inch)

Spring Rates:
Front 9.00kg/mm
Rear 8.30kg/mm

Specifications for F-Sport:
Preset Approximate Height From RS-R:
Front -25mm to -30mm (-1.0inch to -1.2inch)
Rear -30mm to -35mm (-1.2inch to -1.4inch)

Maximum Adjustment Ranges:
Front +15mm to -95mm (+0.6inch to -3.8inch)
Rear -15mm to -60mm (-0.6inch to -2.4inch)

Recommended Adjustments:
Front 0mm to -60mm (0inch to -2.4inch)
Rear -15mm to -60mm (-0.6inch to -2.4inch)

Spring Rates:
Front 9.00kg/mm
Rear 8.30kg/mm

Dampers are 36 way adjustable in the front and the rear.

Warranty 1 Year / 12,000miles from the day of purchase.
