Part Number: MB11-HDG4

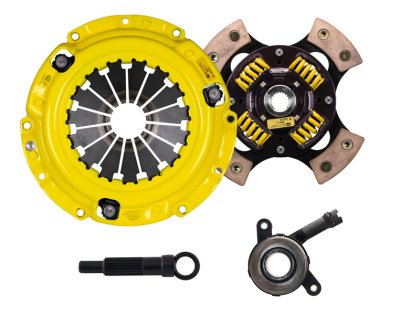

Description: ACT 08-17 Mitsubishi Lancer GT / GTS HD/Race Sprung 4 Pad Clutch Kit

Product Weight (lbs.): 17.6

Torque Capacity (ft/lbs.): 354

Torque Capacity Over OE: 87%

Pressure Plate Type: Heavy Duty

Clutch Disc Diameter: 224

Input Spline Quantity: 20

Input Shaft Diameter: 0.875

Disc Material: Ceramic

Release Bearing Included: Yes

Alignment Tool Included: Yes

Part Fitment Requirement: Pressure plate bolts included (M8-1.25 x 16mm).

Grease Included: Yes

Disc Type Sprung Solid: Sprung

Clutch Slave Cylinder Included: No

Clutch Master Cylinder Included: No

Grade Type: Performance

Flywheel Included: No

Pilot Bushing Included: No

Pressure Plate Bolts Included: Yes

Flywheel Bolts Included: No

Pilot Bearing Included: No

Fitment: 08-17 Mitsubishi Lancer GT/GTS

Details:

MB11-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features and Benefits
