Part Number: 10168200

Description: Supreme SP Exhaust

Fitment: 09-14 Subaru STi / 11-14 WRX Hatchback

Details:

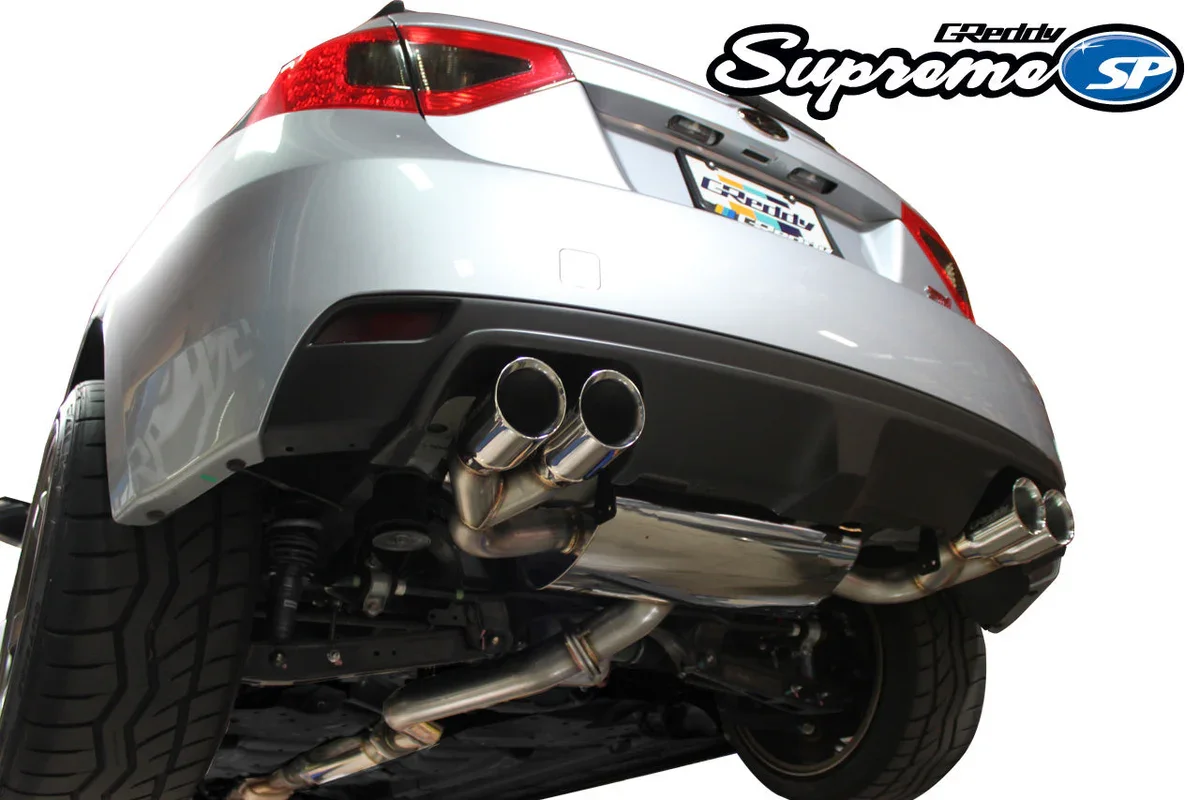

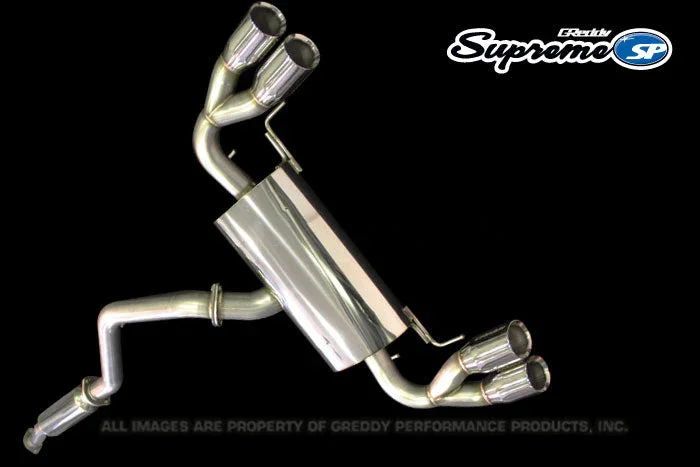

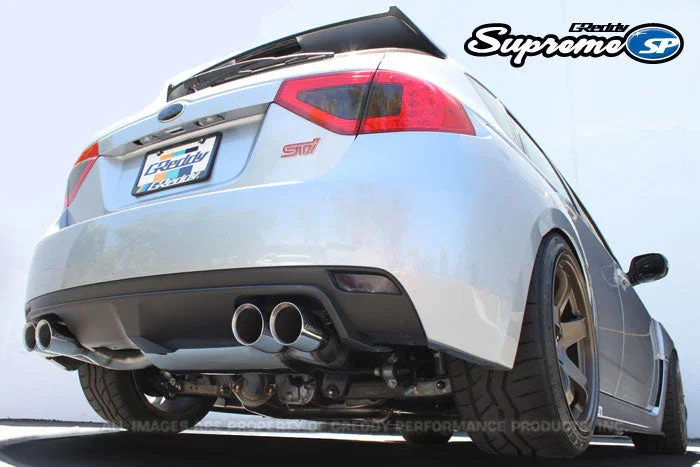

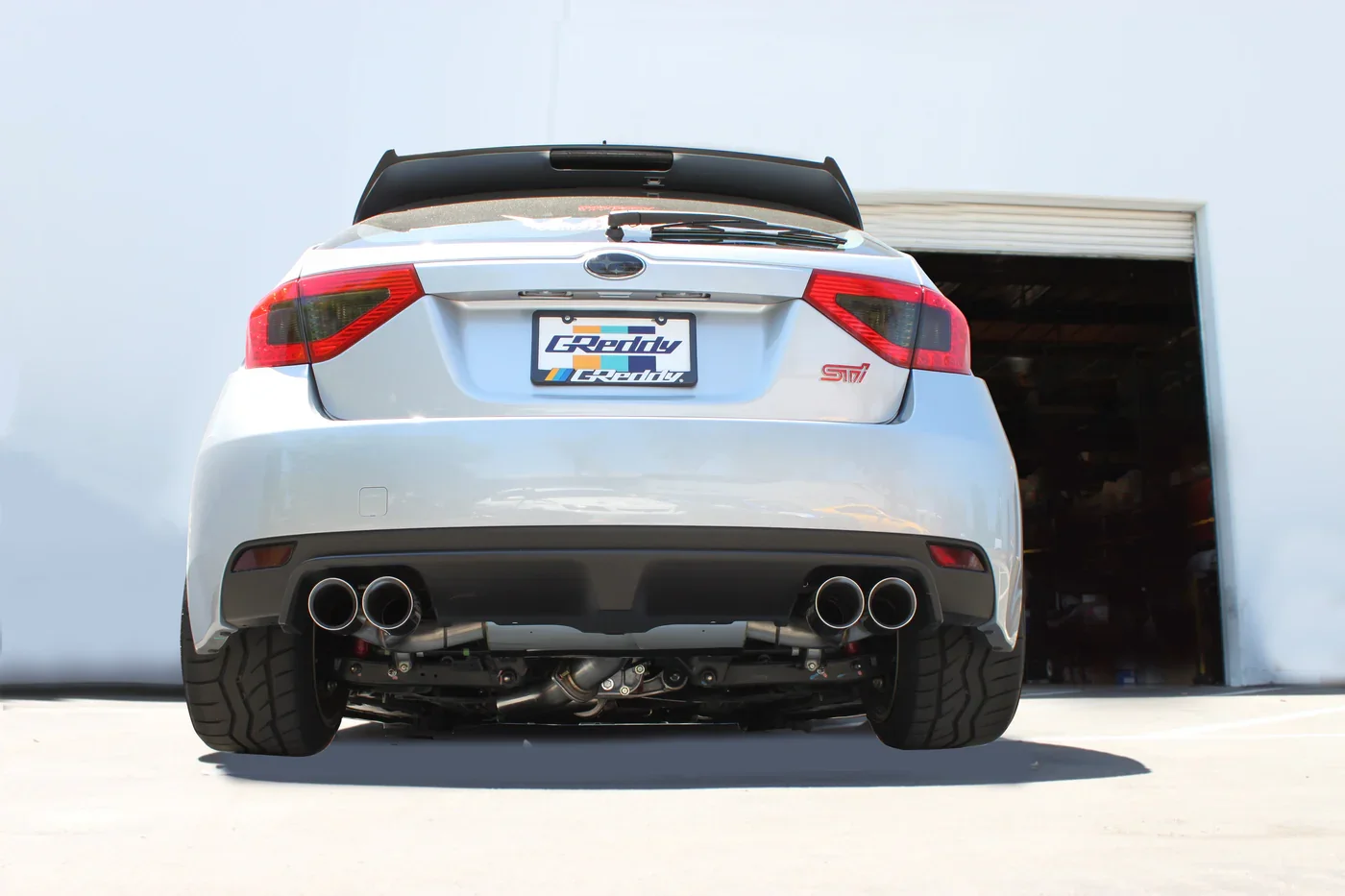

The Supreme SP for the Subaru STI hatchback features a large horizontally mounted, 3-section muffler with a "tucked-away" layout. This routing allows for the large 3” diameter piping to more smoothly enter the muffler’s center section. Exhaust gases exit each side of the revised muffler via the two 2.5” diameter piping to quad staggered 3.5” GReddy double-wall slash cut tips, The non-tapered 3” mid-pipe also encases a large resonator section to tune-out drone.

SOUND CLIP

Chassis:  GRB
Engine:  EJ25
Type:  cat-back system
  (horizontally mounted muffler with dual outlets)

Number of pieces:  3
Piping:   76 mm (3") - 2x 63.5mm (2.5")
Tip(s):  4x 89mm (3.5 ")
Gasket(s):  3" oval (qty: 2 included) replacement
Resonator:   Yes

Notes: reuse factory doughnut-gasket and hardward for mid-pipe

Weight:  39.8lbs  (-2.8lbs)
Sound level:  L82 / R83 dB(a) @4000

Dyno Chart
