Part Number: T2S-M05

Description: ACT Mod Twin XT Street Kit Sprung Mono-Drive Hub Torque Capacity 875ft/lbs

Product Weight (lbs.): 28.1

SFI: 1.2

Torque Capacity (ft/lbs.): 875

Torque Capacity Over OE: 146%

Flywheel Included: Yes

Pressure Plate Type: Xtreme

Release Bearing Included: Yes

Clutch Disc Diameter: 225

Disc Material: Organic

Input Spline Quantity: 23

Input Shaft Diameter: 1

Alignment Tool Included: Yes

Grease Included: Yes

Disc Type Sprung Solid: Sprung

Clutch Slave Cylinder Included: No

Clutch Master Cylinder Included: No

Grade Type: Performance

Pressure Plate Bolts Included: No

Flywheel Bolts Included: No

Fitment: 08-15 Mitsubishi Lancer Evolution X 5spd

Details:

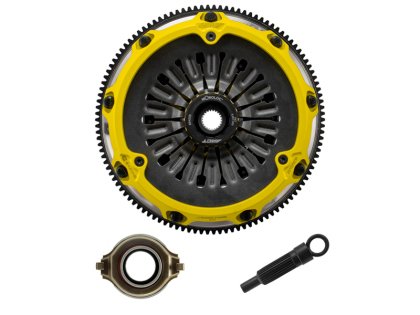

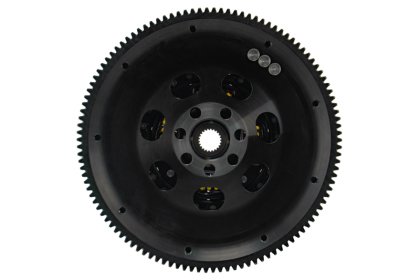

T2S-M05 Mod-Twin 225 HD Sprung Street Kit is designed for high powered AWD street cars. It unites uncompromised pedal feel, durability, engagement quality with very high torque capacity by combining twice the organic friction surfaces with an ultra-durable spring center Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent light pedal feel. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to the Mono-Drive sprung hub assembly which extends input shaft life and reduces driveline shock from torsional vibration. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.

Features and Benefits

• "Excellence in Performance", backed by the best one-year warranty in the industry!
