Part Number: T2R-M07

Description: ACT Mod Twin XT Race Kit Unsprung Hub Torque Cap 1120ft/lbs Not For Street Use

Product Weight (lbs.): 28.1

SFI: 1.2

Torque Capacity (ft/lbs.): 1120

Torque Capacity Over OE: 214%

Flywheel Included: Yes

Pressure Plate Type: Xtreme

Release Bearing Included: Yes

Clutch Disc Diameter: 225

Disc Material: Ceramic

Input Spline Quantity: 23

Input Shaft Diameter: 1

Alignment Tool Included: Yes

Grease Included: Yes

Disc Type Sprung Solid: Solid

Clutch Slave Cylinder Included: No

Clutch Master Cylinder Included: No

Grade Type: Performance

Pressure Plate Bolts Included: No

Flywheel Bolts Included: No

Fitment: 08-15 Mitsubishi Lancer Evolution X 5spd

Details:

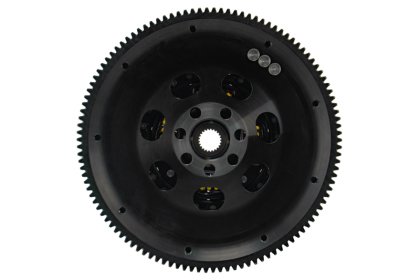

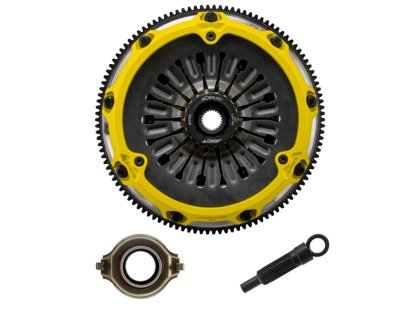

T2R-M07 Mod-Twin 225 XT Rigid Race Kit tackles aggressive launches and rapid shifting of high powered AWD’s by combining twice the ceramic friction surfaces with a no-nonsense solid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent light pedal feel. Puck-style Friction Plates with high quality ceramic friction materials deliver high friction coefficient, superior heat capacity, and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive chrome-moly hub which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.

Features and Benefits

• "Excellence in Performance", backed by the best one-year warranty in the industry!
