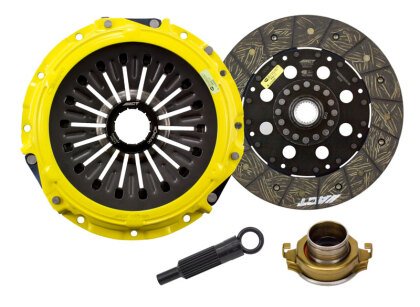

Part Number: ME3-HDSD

Description: ACT HD-M/Perf Street Rigid Clutch Kit

Product Weight (lbs.): 15.5

Torque Capacity (ft/lbs.): 530

Torque Capacity Over OE: 45%

Pressure Plate Type: Heavy Duty

Clutch Disc Diameter: 240

Input Spline Quantity: 23

Input Shaft Diameter: 1

Disc Material: Organic

Part Fitment Requirement: Includes ACT Monoloc.

Release Bearing Included: Yes

Alignment Tool Included: Yes

Grease Included: Yes

Disc Type Sprung Solid: Solid

Clutch Slave Cylinder Included: No

Clutch Master Cylinder Included: No

Grade Type: Performance

Flywheel Included: No

Pilot Bushing Included: No

Pressure Plate Bolts Included: No

Flywheel Bolts Included: No

Pilot Bearing Included: No

Fitment: 08-15 Mitsubishi Lancer Evolution X

Details:

ME3-HDSD kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. These discs are the minimum weight street disc for faster shifts. ACT's Street rigid-hub discs provide race-proven performance with street manageability. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.

Features and Benefits

• "Excellence in Performance", backed by the best one-year warranty in the industry!
