Part Number: GSM74-71SS3

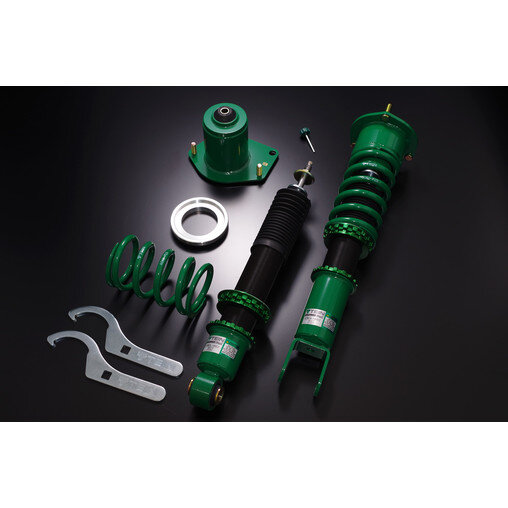

Description: Mono Sport Damper Coilover

Fitment: 06-15 Mazda Miata

Details:

Front:
- Damping Adjustable: Yes
- Full Length Adjustable: Yes
- Mount: R/U
- Vehicle Height: -35mm
- Max Height Adjustment Range: -80mm ~ 22mm
- Recommended Height Adjustment Range: -45mm ~ -25mm
- Spring Rate: 8kg

Rear:
- Damping Adjustable: Yes
- Full Length Adjustable: Yes
- Mount: R/U
- Vehicle Height: -30mm
- Max Height Adjustment Range: -66mm ~ -21mm
- Recommended Height Adjustment Range: -40mm ~ -21mm
- Spring Rate: 6kg
EDFC Compatible: Yes, available as an option above.
[EDFC Remarks]: FT: After installing the motor on the shock absorber and checking the operation, installation on the vehicle is necessary.The Mono Sport is Tein's top of the line coilover.
These coilovers are made by analysing the handling characteristics of each model to come up with the best possible settings for each individual model. They are the ultimate weapon for both street and track.

Features:
- Full Length Ride Adjustment with little or no change in ride quality
- 16-level dampening force adjustment system
- Mono tube structure for linear damping force and better road feedback
- Complete kit with Tein upper mounts (except some models)
- Rebuildable coilovers

EDFC compatible (EDFCII, ACTIVE and ACTIVE PRO) for remote electronic adjustment of the dampening via commands in the cabin.
Powder-coated with Tein's signature green, and coated with "ZT-Coating" to keep rust at bay, making them ideal for people living in snowy areas or near the sea.
