Part Number: 305-05-7030

Description: Ultra Series Ultra 3 Camshaft

Exh. Duration @ .050 in. (Deg): 277

Exhaust Valve Lift: 0.565 in.

Intake Duration @ 0.050 in.: 275 Degree

Intake Valve Lift: 0.580 in.

Lifter Type: OEM

Usage: Street/Performance

Exhaust Valve Lift (in.): 0.565

Int. Duration @ .050 in. (Deg): 275

Intake Valve Lift (in.): 0.580

Exh. Duration Advertised (Deg): 254

Intake Duration Advertised: 254

Fitment: 04-08 Acura TSX

Notes: Not for sale in California not CARB Legal

Details:

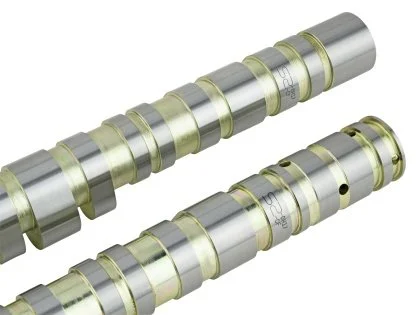

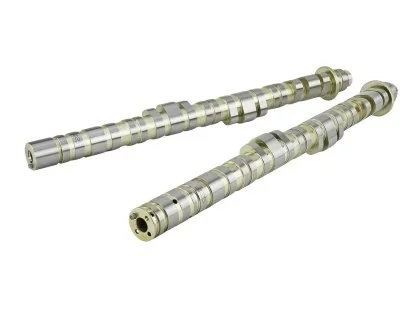

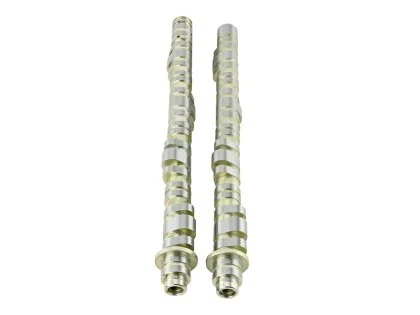

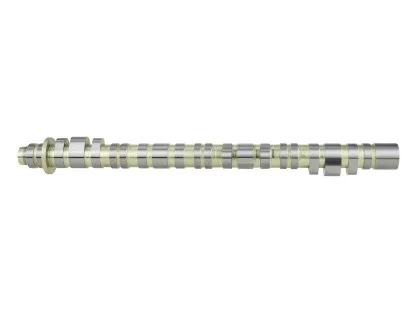

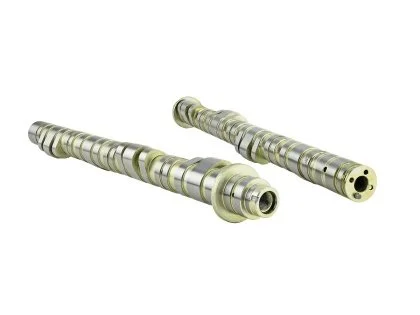

Skunk2’s Ultra Series Camshafts for the Honda K20A, K20A2, K20Z1, K20Z3, and K24A2 engines dramatically increase both horsepower and torque yet retain complete valvetrain stability and exceptional engine response. Ideal for heavily modified engines, Ultra Series Camshafts are manufactured from proprietary, high-quality forged tool steel cores, are CNC ground, and feature patent-pending profiles with unique lobe shapes and revolutionary lift, velocity, and acceleration characteristics.

Up to 80 hp gains with Skunk2’s Ultra Series line of camshafts, our professional line of high-lift, racing camshafts for Honda’s K Series VTEC engines. Ultra Camshafts are designed to optimize mid-range and top-end horsepower and torque, with peak power moved up the RPM band. As a result, VTEC crossover is seamless, allowing for the broadest powerband possible. No other line of racing camshafts even comes close to Skunk2’s Ultra Series.

 Skunk2’s Ultra Series Camshafts also feature Fast Ramp and AMAX profile technology, which increases overall performance and results in unmatched response from idle to redline. AMAX technology simply maximizes the area under the lift curve but without compromising reliability or valvetrain stability. Skunk2’s profiles feature more duration than competitors’ at lifts above 1mm, resulting in greater efficiency and more power. And thanks to Fast Ramp, the same technology used in Formula One racing, seat timing is reduced, which results in additional cylinder pressure and more torque but without compromising valvetrain longevity.

Camshaft Specifications

Intake (Primary Lobe)

Lift: .425" @ 0.000" lash

Duration: 271° @0.1mm / 0.004"

222° @1mm / 0.0394"

215° @1.27mm / 0.050"

Intake (VTEC Lobe)

Lift: .575" @ 0.000" lash

Duration: 319° @0.1mm / 0.004"

274° @1mm / 0.0394"

267° @1.27mm / 0.050"

Exhaust (Small Lobe)

Lift: .425" @ 0.000" lash

Duration: 272° @0.1mm / 0.004"

222° @1mm / 0.0394"

215° @1.27mm / 0.050"

Exhaust (VTEC Lobe)

Lift: .560" @ 0.000" lash

Duration: 323° @0.1mm / 0.004"

276° @1mm / 0.0394"

269° @1.27mm / 0.050"
