Part Number: 49S36-A0200

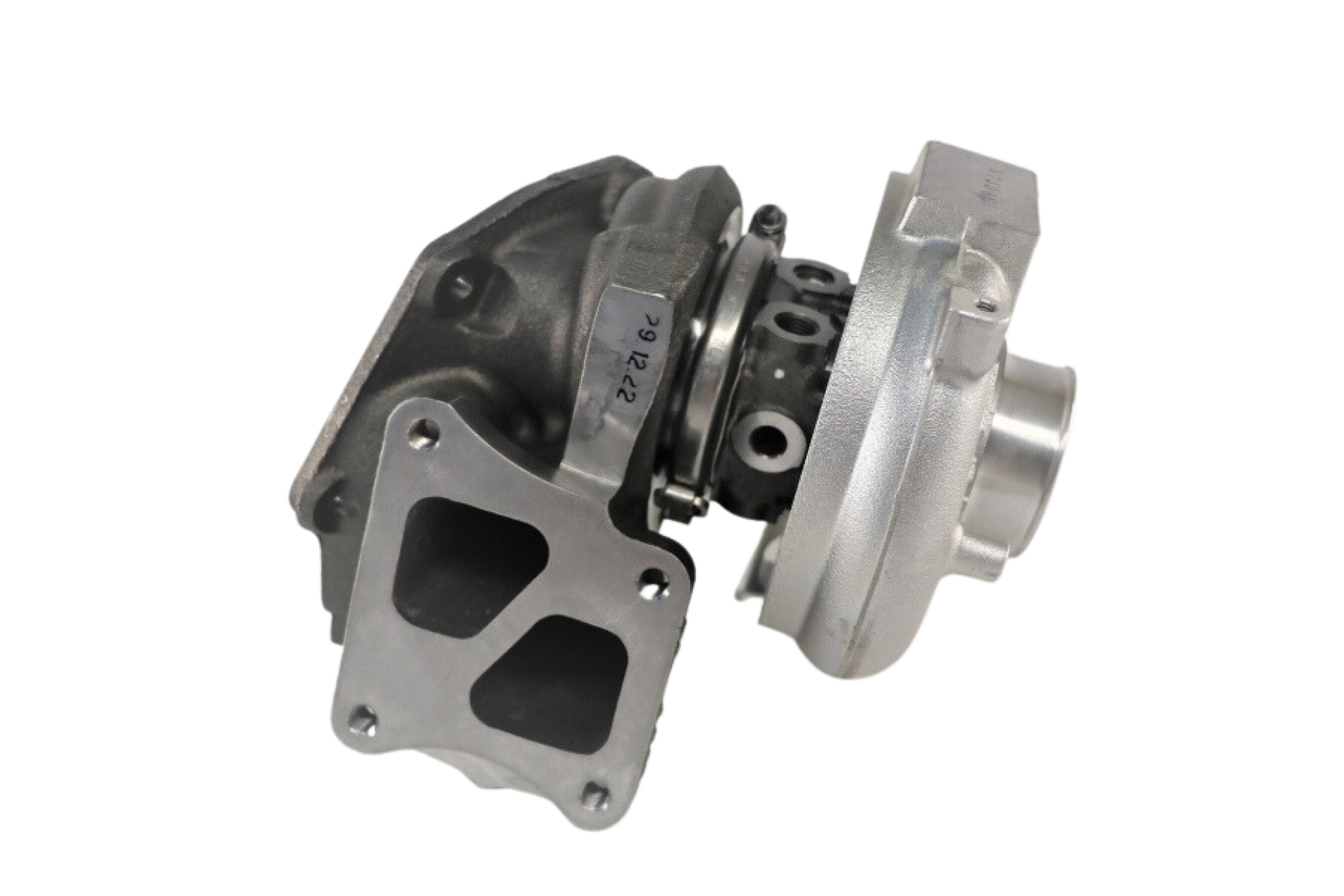

Description: Full Race MHI TF06-18K Turbo Upgrade

Fitment: 03-07 Mitsubishi Lancer Evolution 4/6/7/8/9

Details:

The MHI TF06-18K for Mitsubishi Evolution 4-9  is a stock location, bolt-on turbo upgrade designed to give you more power than the OEM turbo ever could.  It's a substantial performance upgrade over stock with plug-n-play stock fitment. 18 psi wastegate actuator is calibrated and included.  Now acheiving cult status, this is a game changer for direct-fitment stock frame performance and reliability.

The 18K turbo flows 54 lbs/min, making it a perfect upgrade for those who want a turbo with quick spool and plenty of power through the mid-range and into the top end. The compressor cover has a stock size inlet allowing for almost any aftermarket intake to be used.  The TF06 turbine wheel is in a 10.5 cm turbine housing and uses a billet 18K compressor wheel for ultra-quick spooling performance.  Estimated engine output with this turbo is around 450WHP, but 525-550+whp can be acheived with ethanol or race fuel.  We recommend to pair with our ProStock Turbo Manifold, fuel pump upgrade, intake, injectors and custom tune.

18K Compressor Specifications

• Compressor Type: Forged-Milled Wheel (FMW) Billet

• Compressor Wheel OD (exducer): 75mm

• Compressor Wheel Inducer: 55.1mm

• Max Flow Rate: 54 lb/min

• Max Turbo Speed: 133krpm

• Compressor Housing: 3" hose coupler inlet, 2 bolt outlet

TF06 Turbine Specifications

• Turbine type: 9-blade TF06 Inconel 713C Turbine Wheel

• Turbine Wheel Inducer: 61.5mm

• Turbine Wheel Exducer: 54mm

• Turbine Housing: 10.5cm
