Part Number: T1S-M03

Description: ACT EVO 8/9 5-Speed Only Mod Twin HD Street Kit Unsprung Mono-Drive Hub Torque Capacity 700ft/lbs

Product Weight (lbs.): 28.1

SFI: 1.2

Torque Capacity (ft/lbs.): 700

Torque Capacity Over OE: 97%

Flywheel Included: Yes

Pressure Plate Type: Heavy Duty

Release Bearing Included: Yes

Clutch Disc Diameter: 225

Disc Material: Organic

Input Spline Quantity: 23

Input Shaft Diameter: 1

Alignment Tool Included: Yes

Grease Included: Yes

Fitment: 03-06 Mitsubishi Lancer Evolution w/5spd

Details:

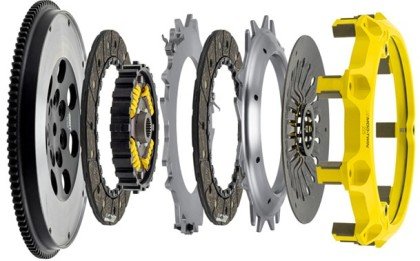

T1S-M03 Mod-Twin 225 HD Rigid Street Kit blends easy pedal feel, smooth but positive engagement with quick shifting for high powered AWD’s by combining twice the organic friction surfaces with a no-nonsense rigid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive chrome-moly hub which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.

Features and Benefits
