Part Number: TS5-HDG6

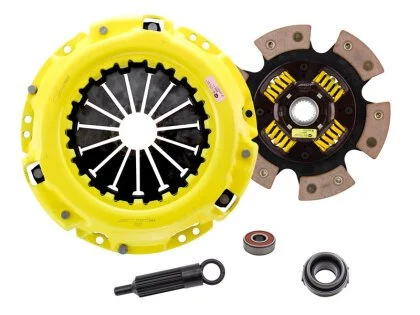

Description: ACT HD/Race Sprung 6 Pad Clutch Kit

Product Weight (lbs.): 17.4

Torque Capacity (ft/lbs.): 365

Torque Capacity Over OE: 69%

Pressure Plate Type: Heavy Duty

Clutch Disc Diameter: 236

Input Spline Quantity: 21

Input Shaft Diameter: 1.125

Disc Material: Ceramic

Part Fitment Requirement: Must be used with aftermarket single-mass flywheel (not included).

Pilot Bushing Included: No

Release Bearing Included: Yes

Alignment Tool Included: Yes

Grease Included: Yes

Pilot Bearing Included: Yes

Fitment: 00-05 Lexus IS300

Details:

TS5-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features and Benefits

• "Excellence in Performance", backed by the best one-year warranty in the industry!
